Moxa VPort P06-2M80M-CT | VPort 06-2 EN 50155 1080p IP Camera, 8mm, M12, Mic, PoE

Authorised Moxa Partner

SKU:VPort P06-2M80M-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

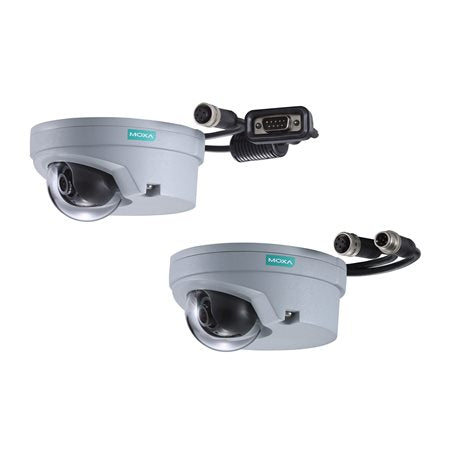

The Moxa VPort P06-2M80M-CT is a compact EN 50155 1080p IP dome camera built for mobile and rail video surveillance. It combines an 8.0 mm lens, a built-in microphone, PoE power and an M12 connector, with PCB conformal coating and an operating range of -25 to 55°C for demanding on-board environments. This conformal coated variant is the PoE, microphone-equipped model with the 8.0 mm lens.

The camera captures up to 1920 x 1080 at 30 fps and supports up to four simultaneous H.264 and MJPEG streams. 100 dB WDR and 2D/3D digital noise reduction deliver clear images in changing light, while IP66 and IK8 ratings suit vibration-prone and vandal-exposed installations. ONVIF conformity and microSD (SDXC) local storage simplify integration and recording.

Features

- EN 50155 compliant design for rail and vehicle video surveillance
- DynaStream for optimised network efficiency
- CBR Pro for high image quality with limited bandwidth
- ONVIF conformity for easy integration with third-party systems
- SDXC local storage via microSD slot
- DNR and WDR for high quality imaging in challenging light
- Built-in microphone for audio capture
- PCB conformal coating for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1/3-inch 1080P progressive scan CMOS sensor, up to 1920 x 1080 at 30 fps
- Lens: f=8.0 mm, F1.6, diagonal 42°, horizontal 33°
- Minimum illumination 0.2 lux (colour) at F1.2
- 100 dB WDR, built-in 2D/3D DNR
- Up to 4 simultaneous H.264/MJPEG streams
- 1 built-in microphone, mono PCM (G.711)/AAC
- PoE (IEEE 802.3af) power input, 0.17 A @ 48 VDC
- 5-pin A-coded M12 connector with 20 cm cable
- 1 digital input
- microSD slot, SDXC
- Operating temperature -25 to 55°C
- IP66 ingress protection, IK8 vandal resistance (EN 62262)
- PCB conformal coating
- Complies with mandatory sections of EN 50155

FAQs

Q: What does the -CT suffix on the VPort P06-2M80M-CT mean?
A: The -CT suffix indicates that the camera's PCB has a conformal coating, which adds protection against moisture and contaminants in harsh on-board environments.

Q: How is the VPort P06-2M80M-CT powered?
A: It is powered over Ethernet using IEEE 802.3af PoE through its 5-pin A-coded M12 connector, drawing 0.17 A at 48 VDC.

Q: Does this camera include a microphone?
A: Yes. It has one built-in microphone with mono PCM (G.711) or AAC audio.

Q: What is the field of view of the 8.0 mm lens?
A: The f=8.0 mm F1.6 lens provides a 42° diagonal and 33° horizontal field of view.

Q: Is the camera suitable for rail applications?
A: Yes. It complies with the mandatory sections of EN 50155 and is designed for mobile video surveillance in rail and vehicle installations.

Q: Does the camera support local recording?
A: Yes. It has a microSD slot that supports SDXC cards for local storage.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
