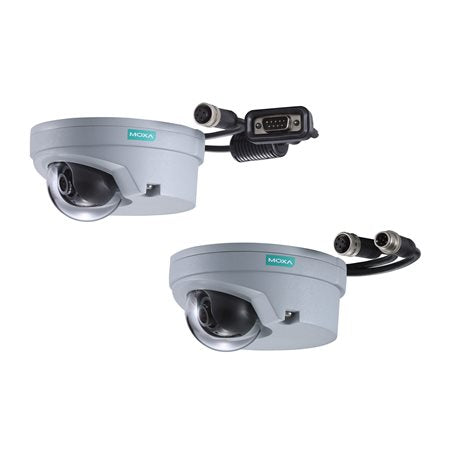

Moxa VPort P06-2M60M-CT | VPort P06 EN 50155 1080p IP Camera, 6.0mm, M12, CT, PoE

Authorised Moxa Partner

SKU:VPort P06-2M60M-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa VPort P06-2M60M-CT is an EN 50155 compliant 1080p IP camera built for rail and vehicle surveillance. It pairs a 1/3-inch progressive scan CMOS sensor with a fixed 6.0 mm F1.8 lens, delivering Full HD 1920 x 1080 at 30 fps over H.264 or MJPEG with four independent streams. Power and data run over a single M12 D-coded PoE (IEEE 802.3af) connection, and a built-in microphone captures audio. The -CT variant adds PCB conformal coating for harsh, humid or vibration-prone environments.

The metal housing is rated IP66 and IK8, making it dust-tight, rain-resistant and vandal resistant for onboard installation. Camera tampering detection, three configurable motion detection areas, privacy masks and a microSD (SDXC) slot for event recording support day-to-day security operations. ONVIF Profile S support allows integration with compatible video management systems, while DynaStream and CBR Pro help manage bandwidth on shared vehicle networks.

Features

- Complies with parts of EN 50155 for railway applications
- Full HD 1080p video with H.264/MJPEG and 4 independent streams
- Power over Ethernet (IEEE 802.3af) with M12 connectors for vibration-proof cabling
- Built-in microphone with G.711 and AAC audio
- IP66 and IK8 vandal-resistant metal housing
- DynaStream and CBR Pro for efficient bandwidth use
- Camera tampering detection and motion detection with 3 configurable areas
- ONVIF Profile S support
- PCB conformal coating (-CT variant) for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1/3-in 1080P progressive scan CMOS sensor
- 6.0 mm lens, F1.8, 62° diagonal / 43° horizontal / 24° vertical
- Full HD 1920 x 1080 at 30 fps, H.264 or MJPEG, 4 independent streams
- 1 x 10/100BaseT(X) PoE port, M12 D-coded 4-pin female
- PoE (IEEE 802.3af), 0.17 A @ 48 VDC
- 1 x built-in microphone, mono PCM (G.711) and AAC audio
- 1 digital input, 5-pin A-coded M12 male connector with 20 cm cable
- microSD slot (SDXC) for event recording
- IP66 rain and dust protection, IK8 vandal resistant, metal housing with PC dome cover
- Operating temperature -25 to 55°C, storage -40 to 85°C
- Humidity 5 to 95% (non-condensing)
- EN 50155 (partial), EN 45545-2, IEC 61373, UL 62368-1
- ONVIF Profile S
- PCB conformal coating (-CT variant)
- Dimensions 110 x 115.5 x 61.8 mm, weight 620 g
- MTBF 1,050,590 hrs (Telcordia SR332)

FAQs

Q: What does the -CT suffix mean on this camera?
A: The -CT variant is the PCB conformal-coated version of the VPort P06-2M60M, giving extra protection for harsh and humid environments.

Q: How is the VPort P06-2M60M-CT powered?
A: It is powered over Ethernet using IEEE 802.3af through its M12 D-coded 4-pin port, drawing 0.17 A at 48 VDC, so no separate power connection is needed.

Q: Does this camera record audio?
A: Yes. It has a built-in microphone and supports mono G.711 PCM and AAC audio formats.

Q: Is it suitable for rail and vehicle installations?
A: Yes. It complies with a portion of EN 50155, and also meets EN 45545-2 railway fire protection, IEC 61373 shock and vibration, and uses M12 connectors for vibration-proof cabling.

Q: Can it integrate with third-party video management software?
A: It supports ONVIF Profile S, so it can be used with compatible VMS and recording platforms.

Q: Can it store video locally?
A: Yes. It has a microSD (SDXC) slot for event recordings, and a 50 MB pre-alarm buffer.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
