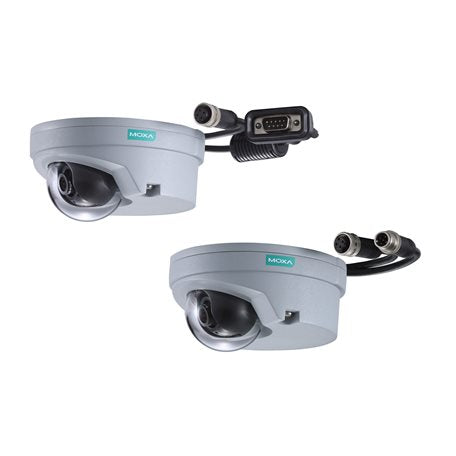

Moxa VPort P06-2M42M-CT | VPort P06-2 EN 50155 1080p IP Camera, 4.2mm, Mic, PoE

Authorised Moxa Partner

SKU:VPort P06-2M42M-CT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa VPort P06-2M42M-CT is a rugged EN 50155 1080p dome IP camera built for rail and industrial surveillance. It pairs a 1/3-inch progressive scan CMOS sensor with a 4.2 mm lens, H.264/MJPEG encoding and PoE power over an M12 D-coded connector. This -CT model adds a built-in microphone, an operating range of -25 to 55°C and PCB conformal coating for harsh environments.

With 100 dB WDR, 0.2 lux minimum illumination, IP66 and IK8 vandal-resistant protection, and a metal housing with PC dome cover, it suits vibration-prone and demanding installations. A microSD slot (SDXC) allows local event recording, with stored images transferable via email or FTP, and protocol support includes RTSP, SNMP, HTTPS and SIP.

Features

- EN 50155 compliant for rail applications
- M12 connectors for vibration-prone environments
- PoE simplifies installation
- Built-in microphone for audio capture
- PCB conformal coating for harsh environments
- Event recordings stored on SD card with automatic transfer of stored images via email or FTP
- 50 MB pre-alarm buffer for JPEG snapshots
- Supports protocols including RTSP, SNMP v1/v2c/v3, HTTPS and SIP

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1/3-inch 1080P progressive scan CMOS sensor
- 4.2 mm lens, F1.6, 82° diagonal / 62° horizontal / 34° vertical field of view
- H.264/MJPEG video compression, 1080p
- 1 x 10/100BaseT(X) PoE port, M12 D-coded 4-pin female connector
- Powered by PoE (IEEE 802.3af), 0.17 A @ 48 VDC
- 1 digital input, 5-pin A-coded male M12 connector with 20 cm cable
- 1 x built-in microphone; mono audio, PCM (G.711) and AAC
- microSD slot (SDXC)
- Minimum illumination 0.2 lux (colour) at F1.2; 100 dB WDR; 2D/3D DNR
- Camera angle: pan ±15°, tilt 0° to 90° (manual)
- Operating temperature -25 to 55°C; storage -40 to 85°C
- IP66 and IK8 vandal resistant; metal housing with PC dome cover
- Dimensions 110 x 115.5 x 61.8 mm; weight 620 g
- PCB conformal coating (-CT model)

FAQs

Q: Is the Moxa VPort P06-2M42M-CT suitable for rail applications?
A: Yes. It is EN 50155 compliant and uses M12 connectors designed for vibration-prone environments such as rolling stock.

Q: How is the camera powered?
A: It is powered over Ethernet using IEEE 802.3af PoE through the M12 D-coded 4-pin connector, drawing 0.17 A at 48 VDC.

Q: Does this model have a built-in microphone?
A: Yes. It includes one built-in microphone with mono audio, supporting PCM (G.711) and AAC.

Q: What does the -CT suffix mean?
A: The -CT designation indicates PCB conformal coating, which protects the electronics in harsh environments, with an operating range of -25 to 55°C.

Q: Can it record video locally?
A: It has a microSD (SDXC) slot for event recordings. Stored images can be transferred automatically by email or FTP, and a 50 MB pre-alarm buffer holds JPEG snapshots.

Q: What lens and field of view does it have?
A: It has a fixed 4.2 mm F1.6 lens with an 82° diagonal, 62° horizontal and 34° vertical field of view.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
