Moxa VPort P06-2M36M-CT-T | VPort 06-2 Series 1080p IP Dome Camera, 3.6mm, Mic, -40 to 70°C, PoE

Authorised Moxa Partner

SKU:VPort P06-2M36M-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

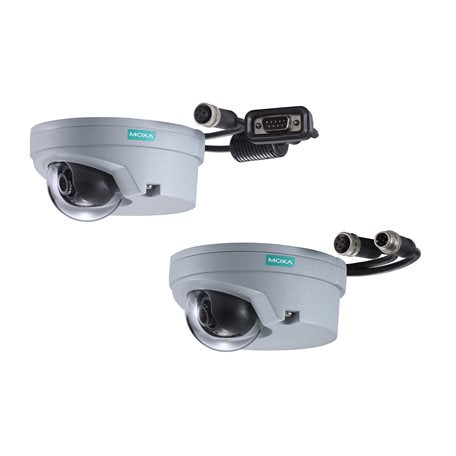

The Moxa VPort P06-2M36M-CT-T is a compact 1080p IP dome camera built for mobile and rolling-stock video surveillance. It combines a fixed 3.6 mm lens, a built-in microphone and PoE power over a rugged M12 Ethernet port, with an operating range of -40 to 70°C and PCB conformal coating for harsh environments.

The 1/3-inch progressive scan CMOS sensor delivers 1920 x 1080 at up to 30 fps with H.264 or MJPEG compression and up to four independent video streams. An IP66 and IK8 rated metal housing, EN 50155 (portion) and EN 45545-2 railway compliance, ONVIF Profile S support and a microSD slot for local recording make it suited to railway, transit and other vibration-prone installations.

Features

- 1/3-inch progressive scan sensor delivers up to 1920 x 1080 at 30 fps
- DNR and WDR for high quality video imaging in difficult lighting
- Up to 4 simultaneous H.264 or MJPEG independent video streams
- DynaStream for optimised network efficiency
- CBR Pro maintains image quality in limited bandwidth links
- Built-in microphone for audio capture alongside video
- Rugged M12 Ethernet port with PoE power simplifies cabling
- IP66 and IK8 rated housing resists dust, rain and vandalism
- PCB conformal coating for improved protection in harsh conditions
- ONVIF Profile S conformity for interoperability with third-party systems

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1/3-inch 1080p progressive scan CMOS sensor, 1920 x 1080 at up to 30 fps
- 3.6 mm fixed lens, F1.6, 99° diagonal / 70° horizontal / 39° vertical
- H.264 or MJPEG compression, up to 4 independent video streams
- 1 x built-in microphone, mono audio (PCM G.711, AAC)
- 1 x 10/100BaseT(X) PoE port, M12 D-coded 4-pin (IEEE 802.3af)
- microSD slot, SDXC supported
- 1 x digital input
- Operating temperature -40 to 70°C, storage -40 to 85°C
- IP66 and IK8 rated metal housing with PC dome cover
- EN 50155 (portion), EN 45545-2 railway fire protection
- PCB conformal coating
- ONVIF Profile S
- Dimensions 110 x 115.5 x 61.8 mm, weight 620 g

FAQs

Q: How is the VPort P06-2M36M-CT-T powered?
A: It is powered over Ethernet using IEEE 802.3af PoE through its M12 D-coded 4-pin Ethernet port, drawing about 0.17 A at 48 VDC.

Q: Does this camera have a built-in microphone?
A: Yes, it includes one built-in microphone supporting mono audio in PCM (G.711) and AAC formats.

Q: What operating temperature range does it support?
A: This -T wide temperature model operates from -40 to 70°C and is also rated for storage from -40 to 85°C.

Q: Is it suitable for railway installations?
A: Yes, it complies with a portion of EN 50155 and EN 45545-2 railway fire protection, and has an M12 Ethernet connector and IP66 and IK8 housing for vibration-prone mobile use.

Q: Can it record video locally?
A: Yes, it has a microSD slot supporting SDXC cards for local storage, up to 1 TB.

Q: Will it work with third-party video management software?
A: It supports ONVIF Profile S, which allows interoperability with compatible video management systems and recorders.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
