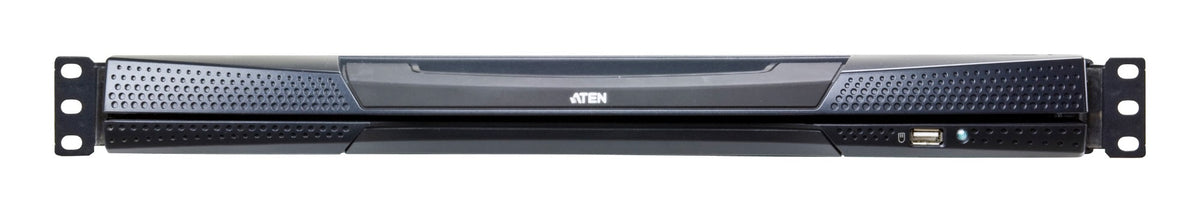

• Black ATEN KL1508Ai 8-port rack-mountable KVM over IP switch with perforated front panel and USB ports in 1U rack size
1 1

ATEN

ATEN KL1508AIM-AXA-AU | KL1508Ai 8-Port Dual Rail 17" LCD KVM over IP Switch, 1U Rack, AU

ATEN KL1508AIM-AXA-AU | KL1508Ai 8-Port Dual Rail 17" LCD KVM over IP Switch, 1U Rack, AU

KL1508AIM-AXA-AU

Stock Status: Enquire

$4,426.56 inc. GST
$4,024.15 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ATEN KL1508Ai is a 1U rack-mountable Dual Rail LCD KVM over IP Switch featuring an integrated 17" LED-backlit LCD monitor with Australian keyboard layout, giving one local and one remote user simultaneous shared access to up to 8 servers via Cat 5e/6 cabling. The dual-rail design allows the LCD monitor to slide and rotate independently of the keyboard/touchpad module, while ATEN's Mouse DynaSync™ ensures seamless local and remote cursor synchronisation — ideal for Australian data centres and server rooms demanding secure, consolidated remote management.

Expandable via daisy-chaining to manage up to 256 computers across 16 switches, the KL1508Ai supports multi-interface KVM adapters (PS/2, USB, Sun, Serial) for broad server compatibility. Port selection is available via OSD, hotkey, or front-panel pushbutton, and an external console port enables additional local access. Adapter ID technology retains port configuration even when servers are relocated, minimising reconfiguration effort. Order now at iptrading.com.au — trusted by Australian IT professionals.

Features

- Dual Rail design — 17" LCD monitor and keyboard/touchpad module slide independently for flexible operation
- LCD module rotates up to 120 degrees for comfortable ergonomic viewing in rack environments
- KVM over IP enables secure remote access and server management from anywhere on the network
- Mouse DynaSync™ automatically synchronises local and remote mouse cursors, eliminating drift
- Multi-interface KVM adapter support (PS/2, USB, Sun, Serial) for broad server and OS compatibility
- Daisy-chain up to 16 switches to manage 256 computers from a single 1U console
- Adapter ID technology stores port configuration, allowing server relocation without reconfiguration
- Port Share Mode allows multiple users to simultaneously access and monitor the same server
- Exclusive LED illumination for keyboard and touchpad — ideal for low-light data centre environments
- External console port (VGA + PS/2/USB keyboard/mouse) for additional direct local access
- Remote Power Over the NET™ (PON) port for remote power cycling of attached devices
- Two-digit seven-segment LED display for clear station identification in daisy-chain configurations
- OSD, hotkey, and front-panel pushbutton port selection with configurable 1–255 second scan interval
- Console lock secures the drawer when not in use to prevent accidental input

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- KVM Ports: 8 x RJ-45 (Cat 5e/6)
- LCD Display: 17" TFT-LED, 1280 x 1024 @ 75Hz (FHD input up to 1920x1200)
- Access: 1-Local / 1-Remote shared access (KVM over IP)
- Form Factor: Dual Rail, 1U rack-mountable
- LCD module rotation: up to 120 degrees
- Daisy-chain: up to 16 switches / 256 computers
- Daisy Chain Port: 1 x DB-25 Male
- External Console Port: PS/2 keyboard, VGA, PS/2/USB mouse
- LAN Port: 1 x RJ-45
- PON Port: 1 x RJ-45
- Firmware Upgrade Port: 1 x RJ-11
- Keyboard/Mouse Emulation: PS/2; USB (PC, Mac, Sun); Serial
- Port Selection: OSD, Hotkey, Pushbutton
- Scan Interval: 1–255 seconds
- Power Input: 100–240V AC, 50/60Hz, 1A
- Dimensions (W x D x H): 701.2 x 480 x 44 mm
- Keyboard Layout: Australian (AU)

FAQs

Q: How many computers can the KL1508AiM manage?
A: Directly, the KL1508AiM manages up to 8 computers via its RJ-45 KVM ports. By daisy-chaining up to 16 units together, you can control a total of 256 computers from a single console — making it highly scalable for growing data centres.

Q: What types of servers and operating systems are supported?
A: The KL1508AiM supports a wide range of platforms through its multi-interface KVM adapters, including PS/2, USB, Sun, and Serial interfaces. This covers standard PCs, Macs, Sun workstations, and serial-connected devices running virtually any operating system.

Q: Can multiple users access the KVM simultaneously?
A: Yes. The KL1508AiM provides 1-Local / 1-Remote shared access, allowing one local console user and one remote IP user to access the connected servers at the same time. Port Share Mode also enables multiple users to view the same server session concurrently.

Q: What cabling is required to connect servers to the KL1508AiM?
A: Servers connect to the switch via Cat 5e or Cat 6 UTP cabling using ATEN KVM adapter cables (sold separately). This high-density RJ-45 approach keeps cable runs tidy and allows servers to be located up to the standard Cat 5e/6 reach from the switch.

Q: Is this unit suitable for Australian data centres, and does it ship with an AU keyboard?
A: Yes. The KL1508AIM-AXA-AU variant is specifically configured with an Australian keyboard layout and is supplied with an AU power cord, making it ready for immediate deployment in Australian data centres and server rooms without any additional accessories.

Q: Can I purchase the ATEN KL1508AiM in Australia through IP Trading?
A: Absolutely. IP Trading (iptrading.com.au) is a trusted Australian B2B IT hardware reseller stocking the ATEN KL1508AiM. Our team can assist with volume orders, compatibility advice, and procurement for enterprise and government customers across Australia.
