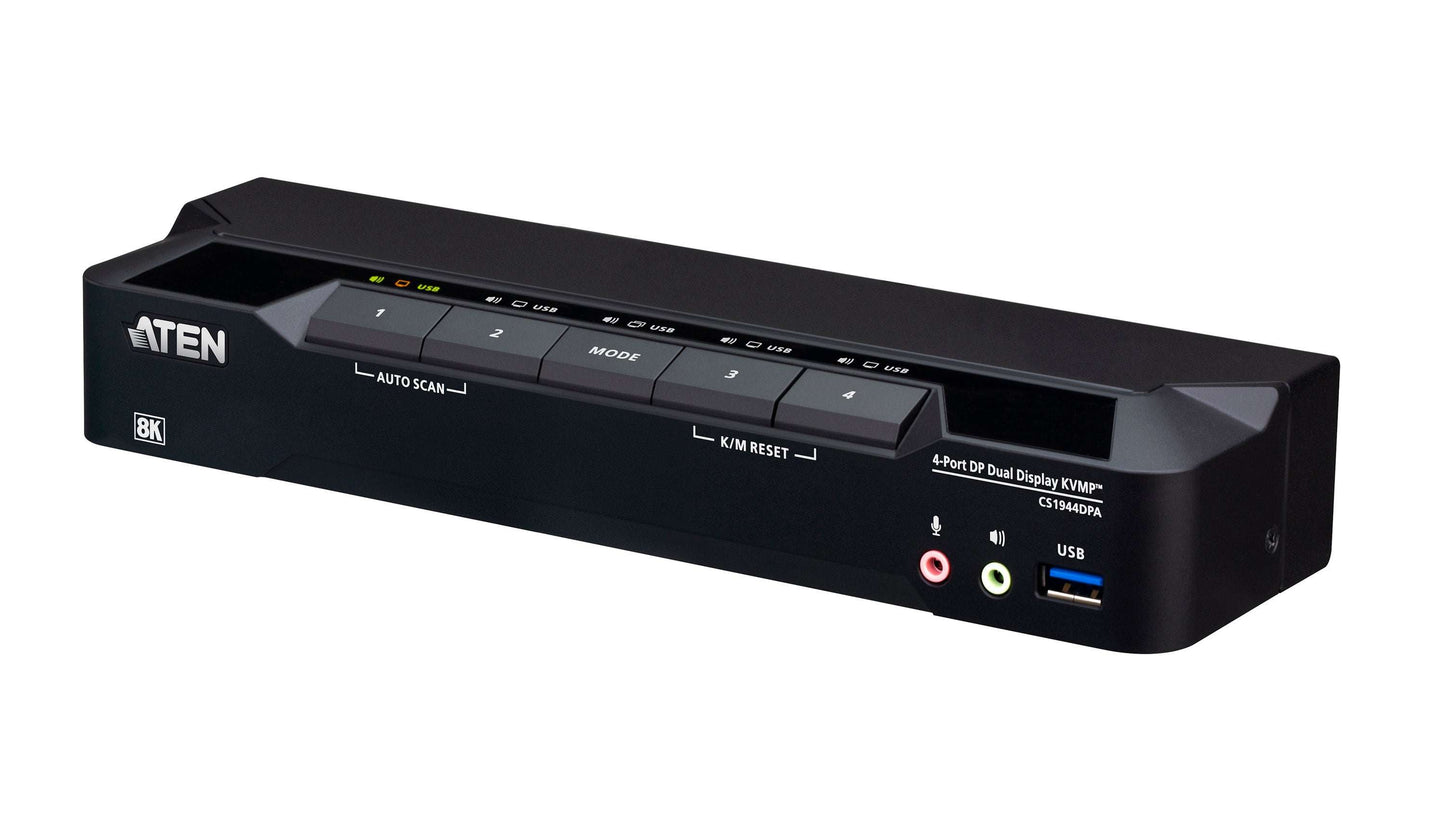

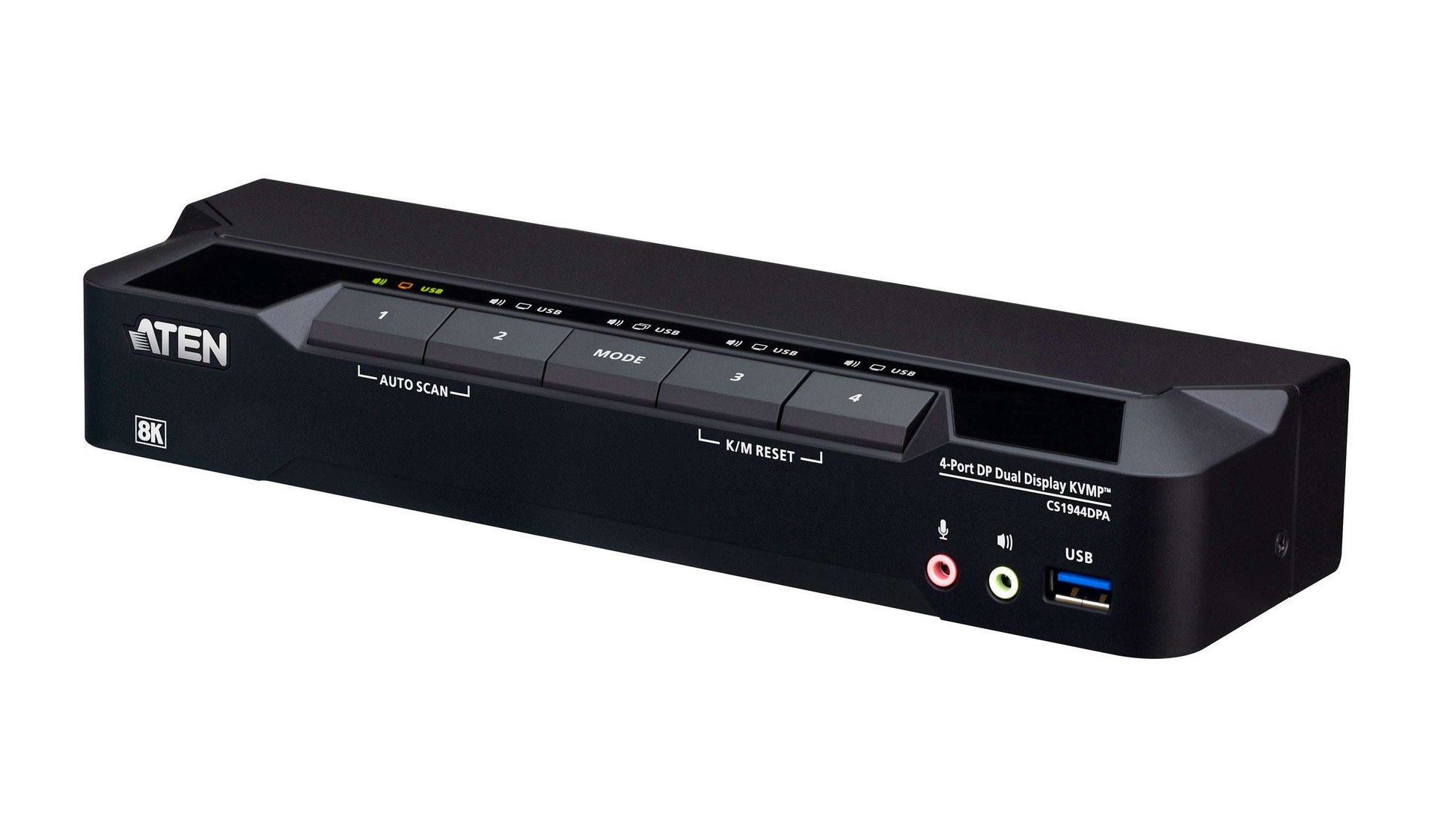

ATEN CS1944DPA-AT-U | 4-Port Dual-Display DisplayPort 8K KVMP Switch, USB 3.0
ATEN CS1944DPA-AT-U | 4-Port Dual-Display DisplayPort 8K KVMP Switch, USB 3.0
Authorised ATEN Partner
SKU:CS1944DPA-AT-U
In stock:1
Couldn't load pickup availability
Description
Description
This 4-port USB 3.0 dual-display DisplayPort KVMP switch lets one keyboard, mouse and pair of monitors control four computers from a single desk. It supports DisplayPort 1.4 video up to 7680 x 4320 at 60 Hz and 4096 x 2160 at 240 Hz, with HDR10+ and HDCP, and the DisplayPort and USB cables are included in the box.
A 2-port USB 3.1 Gen1 hub is built in for shared peripherals, and the switch passes HD audio for each connected computer. Two units can be daisy-chained over RJ-45 for a quad-display setup. It works with Windows, macOS and Linux systems, and can be switched by pushbutton, hotkey, mouse wheel, RS-232 commands or the supplied remote port selector.
Features
Features
- Quad-display support by daisy-chaining two dual-display KVM switches
- DisplayPort 1.4 compliant with HDR10+ and HDCP
- DisplayPort Dual-Mode (DP++) and MST support
- Supports 21:9 and 32:9 ultra-wide aspect ratios
- HD audio support
- Independent switching of KVM, USB and audio
- Keyboard and mouse emulation and bypass
- Power-on detection automatically switches to the next active computer
- Hot-plugging support with plug and play operation
- Firmware upgradable
- Multilingual keyboard mapping (English, Japanese, French, German)
- Includes 8 DisplayPort cables, 4 USB 3.0 A-to-B cables, a power adapter and a remote port selector
Warranty
Warranty
ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Computer connections: 4
- Console ports: 2 x USB Type-A, 2 x DisplayPort, 2 x 3.5mm audio (microphone and speaker)
- Computer ports: 4 x USB 3.1 Gen1 Type-B, 8 x DisplayPort, 4 x 3.5mm audio (microphone and speaker)
- Video: up to 7680 x 4320 @ 60 Hz, 5120 x 2880 @ 60 Hz, 4096 x 2160 @ 240 Hz
- DisplayPort 1.4 with HDR10+ and HDCP
- USB hub: 2 x USB 3.1 Gen1 Type-A (1 front, 1 rear)
- Daisy chain port: 1 x RJ-45
- Port selection: pushbutton, hotkey, mouse wheel, RS-232 commands, remote port selector
- Scan interval: 1 to 99 seconds (default 5 seconds)
- Power: DC 12V, 4.88W consumption
- Operating temperature: 0 to 50°C
- Housing: metal
- Dimensions (L x W x H): 26.00 x 7.18 x 4.30 cm
- Weight: 0.62 kg
FAQs
Q: Are the cables included with this KVMP switch?
A: Yes. The package includes 8 DisplayPort cables, 4 USB 3.0 A-to-B cables, a power adapter and a remote port selector.
Q: What is the maximum video resolution supported?
A: Video is supported up to 7680 x 4320 at 60 Hz, 5120 x 2880 at 60 Hz and 4096 x 2160 at 240 Hz over DisplayPort 1.4.
Q: How many monitors can I run from this switch?
A: Each computer port group drives two DisplayPort displays. Two units can be daisy-chained over RJ-45 to support a quad-display setup.
Q: Does it include a USB hub?
A: Yes. It has a 2-port USB 3.1 Gen1 Type-A hub (5 Gbps) with one port on the front and one on the rear, shared with whichever computer is selected.
Q: Which operating systems does it support?
A: It supports Windows, macOS and Linux computers with plug and play operation.
Q: How can I switch between computers?
A: You can switch using the front pushbuttons, keyboard hotkeys, the mouse wheel, RS-232 commands or the included remote port selector.
