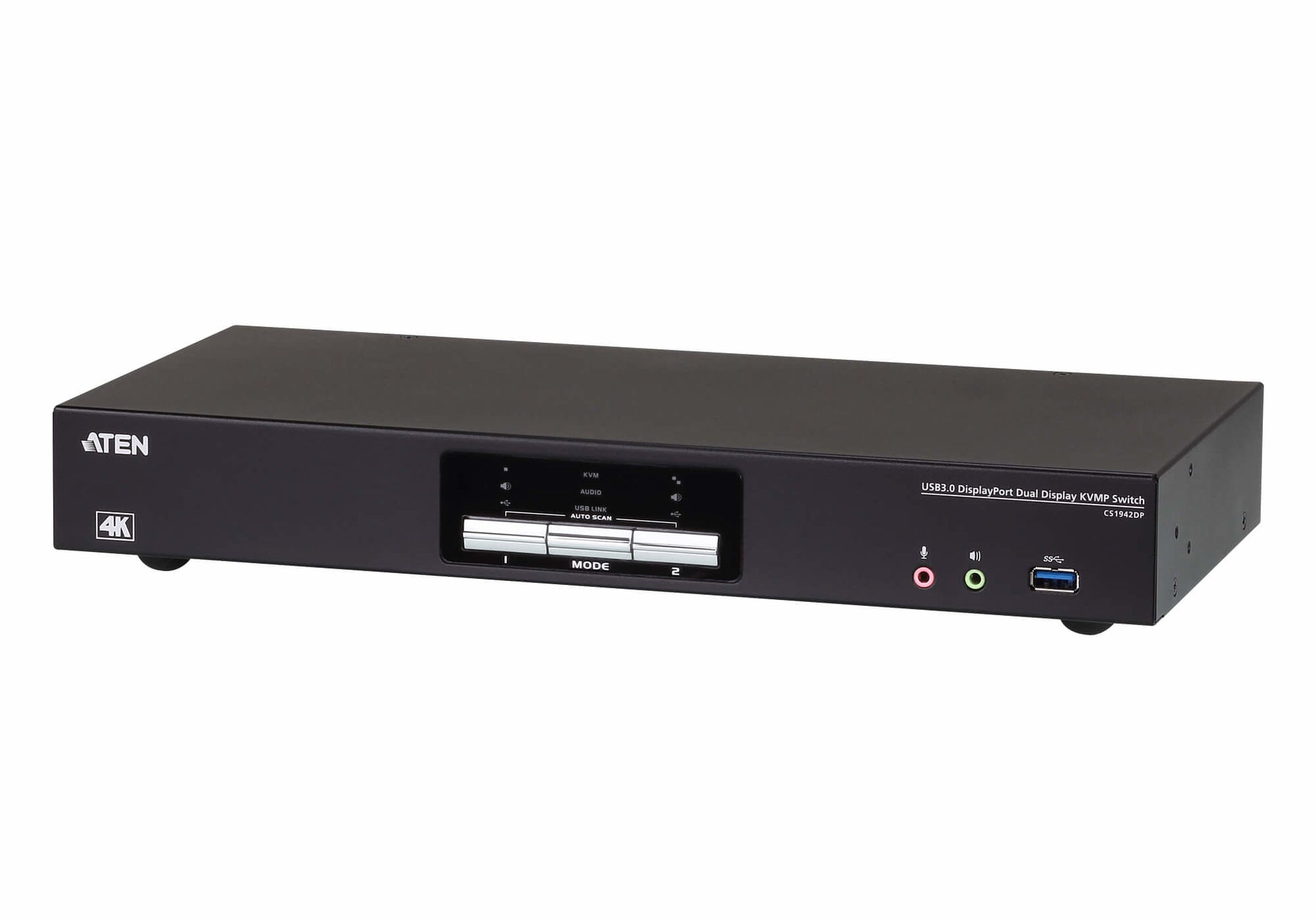

ATEN CS1942DP-AT-U | 2-Port Dual-View DisplayPort KVMP Switch, 4K@60, USB 3.0, Audio, Cables

ATEN CS1942DP-AT-U | 2-Port Dual-View DisplayPort KVMP Switch, 4K@60, USB 3.0, Audio, Cables

Authorised ATEN Partner

SKU:CS1942DP-AT-U

$665.39 inc. GST
$604.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock:4

Description

The ATEN CS1942DP-AT-U is a 2-port dual-display DisplayPort KVMP switch that lets one USB keyboard, mouse and two monitors control two computers at up to 4K 60Hz. This SKU is the bundle with cables included, and adds a 2-port USB 3.1 Gen 1 hub and shared HD audio, so one desk setup can serve two DisplayPort systems without swapping peripherals.

Selection is available from the front panel pushbuttons, hotkeys, the mouse or RS-232 commands, and KVM, USB and audio switching can be handled independently. DisplayPort Dual-Mode (DP++) and Multi-Stream Transport (MST) are supported, and two units can be daisy-chained over RJ-45 for a quad-display configuration.

Features

- One USB keyboard and mouse control two DisplayPort computers and share two USB peripherals
- Quad display by connecting two CS1942DP units
- DisplayPort Dual-Mode (DP++) support for HDMI/DVI via adapter
- Multi-Stream Transport (MST) support
- Console keyboard and mouse emulation and bypass
- Independent switching of KVM, USB and audio
- Multilingual keyboard mapping (English, French, Japanese, German)
- DisplayPort 1.2 and HDCP compliant
- HD audio support
- Power-on detection
- Firmware upgradable

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Computer connections: 2
- Video: DisplayPort 1.2, up to 4096 x 2160 / 3840 x 2160 @ 60Hz, dual display
- USB hub: 2-port USB 3.1 Gen 1, SuperSpeed 5 Gbps
- Console USB ports: 2 x USB Type A
- Computer USB ports: USB 3.1 Gen 1 Type B
- Video connectors: 2 DisplayPort console outputs, 4 DisplayPort computer ports
- Audio: 3.5 mm mic and speaker jacks
- Port selection: pushbutton, hotkey, mouse, RS-232 commands
- Daisy-chain port: RJ-45 (quad display with two units)
- Scan interval: 1-99 seconds (default 5 seconds)
- Power: DC12V, 3.48W
- Operating temperature: 0 to 50 C
- Housing: metal
- Weight: 1.54 kg
- Dimensions (L x W x H): 33.50 x 15.66 x 4.40 cm
- Package contents: 1 x switch, 4 x DisplayPort 1.2 cables (1.5 m), 2 x USB 3.0 cables (1.8 m), 4 x audio cables (1.8 m), power adapter

FAQs

Q: Are cables included with the CS1942DP-AT-U?
A: Yes. The package includes 4 x DisplayPort 1.2 cables (1.5 m), 2 x USB 3.0 cables (1.8 m), 4 x audio cables (1.8 m) and a power adapter.

Q: What resolution does it support?
A: It supports DisplayPort 1.2 video up to 4096 x 2160 / 3840 x 2160 at 60Hz across two displays.

Q: How many computers and monitors can it control?
A: It connects two computers and drives two monitors from a single USB keyboard and mouse. Two units can be daisy-chained over RJ-45 for a quad-display setup.

Q: How do I switch between computers?
A: You can switch using the front panel pushbuttons, hotkeys, the mouse or RS-232 commands.

Q: Can I use HDMI or DVI sources?
A: The switch supports DisplayPort Dual-Mode (DP++), so HDMI or DVI sources can be connected through an adapter.

Q: Does it include a USB hub?
A: Yes. It has a 2-port USB 3.1 Gen 1 hub (5 Gbps) so two USB peripherals can be shared between the connected computers.
