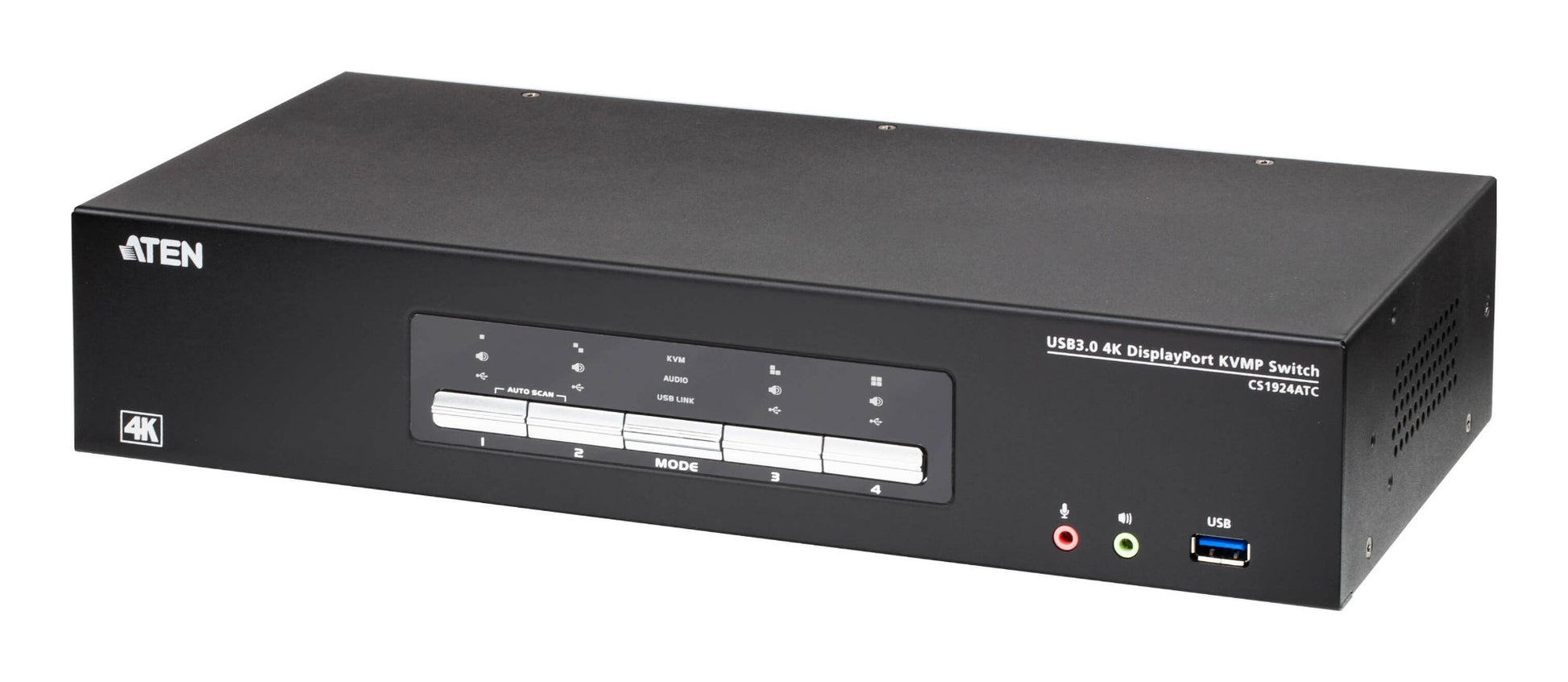

• Black aten cs1924atc-at-u 4-port usb 3.0 4k displayport kvmp switch with white buttons and color-coded ports on front panel
1 1

ATEN

ATEN CS1924ATC-AT-U | 4-Port USB 3.0 4K DisplayPort KVMP Switch, ATC, 2048x2048

ATEN CS1924ATC-AT-U | 4-Port USB 3.0 4K DisplayPort KVMP Switch, ATC, 2048x2048

CS1924ATC-AT-U

Stock Status: Enquire

$2,292.18 AUD
$2,292.18 AUD
$2,292.18 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CS1924ATC is a 4-port USB 3.0 DisplayPort KVMP™ switch purpose-built for Air Traffic Control environments, delivering the specialised 2048 x 2048 @ 60 Hz square resolution required for radar monitoring systems. Its Zero-Second Switch technology ensures a continuous, uninterrupted video stream during port transitions — eliminating black screens critical in ATC towers, approach control rooms, and area control centres. Dual lockable DC power jacks provide hardware-level power redundancy and failover, while ATEN's patented Video DynaSync™ and EDID Expert™ technologies ensure stable, optimised display output across all connected monitors.

Beyond its ATC-focused design, the CS1924ATC integrates a built-in 2-port USB 3.1 Gen 1 hub (SuperSpeed 5 Gbps), an RS-232 serial port for legacy device compatibility, and front and rear audio jacks for flexible console audio management. Port switching is supported via front panel pushbuttons, hotkeys, mouse gestures, RS-232 commands, or an optional remote port selector. A grounding terminal protects against power surges and static electricity, and the unit is firmware upgradeable for long-term deployment. Available now at iptrading.com.au — competitive prices and local support.

Features

- Zero-Second Switch – continuous video stream during port transitions with no black screen or interruption
- Dedicated 2048 x 2048 @ 60 Hz resolution support for radar monitoring displays used in ATC environments
- Dual lockable DC power jacks provide hardware power redundancy and automatic failover for mission-critical uptime
- Video DynaSync™ – eliminates boot-up display problems and optimises resolution when switching between sources
- EDID Expert™ – ensures smooth power-up and best video resolution across different connected displays
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer
- RS-232 serial port for legacy device support and external RS-232 command control
- Flexible port selection via front panel pushbuttons, hotkeys, mouse, RS-232 commands, or optional remote port selector
- Console keyboard and mouse emulation and bypass — supports multimedia keyboards and multifunction mice
- Suitable for ATC Towers, Approach Control Rooms, and Area Control Centres
- Grounding terminal for protection against power surges and electrostatic discharge
- Firmware upgradeable for long-term supportability

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Computer ports: 4 x USB / DisplayPort
- Console output: 1 x DisplayPort
- Supported resolutions: 2048 x 2048 @ 60 Hz (radar monitoring); up to 4096 x 2160 @ 60 Hz
- DisplayPort version: 1.2
- Zero-Second Switch: continuous video stream, real-time port switching with no black screen
- Built-in USB hub: 2-port USB 3.1 Gen 1 (SuperSpeed 5 Gbps)
- Power redundancy: 2 x lockable DC jacks with failover
- Serial port: RS-232 for legacy device and external control
- Audio: front panel primary + rear panel secondary microphone/speaker jacks
- HDCP supported
- Port switching methods: pushbuttons, hotkeys, mouse, RS-232 commands, optional remote port selector
- Keyboard mapping: English, French, Japanese, German
- Grounding terminal included
- Firmware upgradeable

FAQs

Q: What makes the CS1924ATC different from a standard KVM switch?
A: The CS1924ATC is specifically engineered for Air Traffic Control applications. It supports the unique 2048 x 2048 @ 60 Hz square resolution used by radar monitoring systems, includes dual lockable DC power jacks for hardware-level power redundancy, and features Zero-Second Switch technology that ensures a continuous video stream with no black screens during switching — all critical requirements in safety-of-life ATC environments.

Q: What is Zero-Second Switch and why does it matter in ATC?
A: Zero-Second Switch is ATEN's technology that maintains a continuous video signal while switching between connected computers, meaning operators never experience a black screen or display interruption. In Air Traffic Control towers and control rooms, where uninterrupted situational awareness is a safety requirement, this capability is essential.

Q: Does the CS1924ATC support power redundancy?
A: Yes. The switch features two lockable DC power jacks that provide power failover. If one power source fails, the second takes over automatically, ensuring the KVM switch remains operational in mission-critical scenarios without manual intervention.

Q: Can the CS1924ATC connect legacy serial devices?
A: Yes. The unit includes an RS-232 serial port that enables connectivity to legacy serial devices and supports external control via RS-232 commands, making it compatible with existing ATC infrastructure that may rely on older serial interfaces.

Q: What USB standard does the built-in hub support?
A: The CS1924ATC includes a built-in 2-port USB 3.1 Gen 1 hub supporting SuperSpeed data transfer at up to 5 Gbps, allowing peripherals such as storage devices, card readers, or other USB accessories to be shared across connected computers.

Q: Can I purchase the ATEN CS1924ATC in Australia with local support?
A: Yes. The CS1924ATC is available through iptrading.com.au, an Australian B2B IT hardware reseller offering competitive pricing and local support. Contact the team at iptrading.com.au for availability, volume pricing, and deployment advice.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
