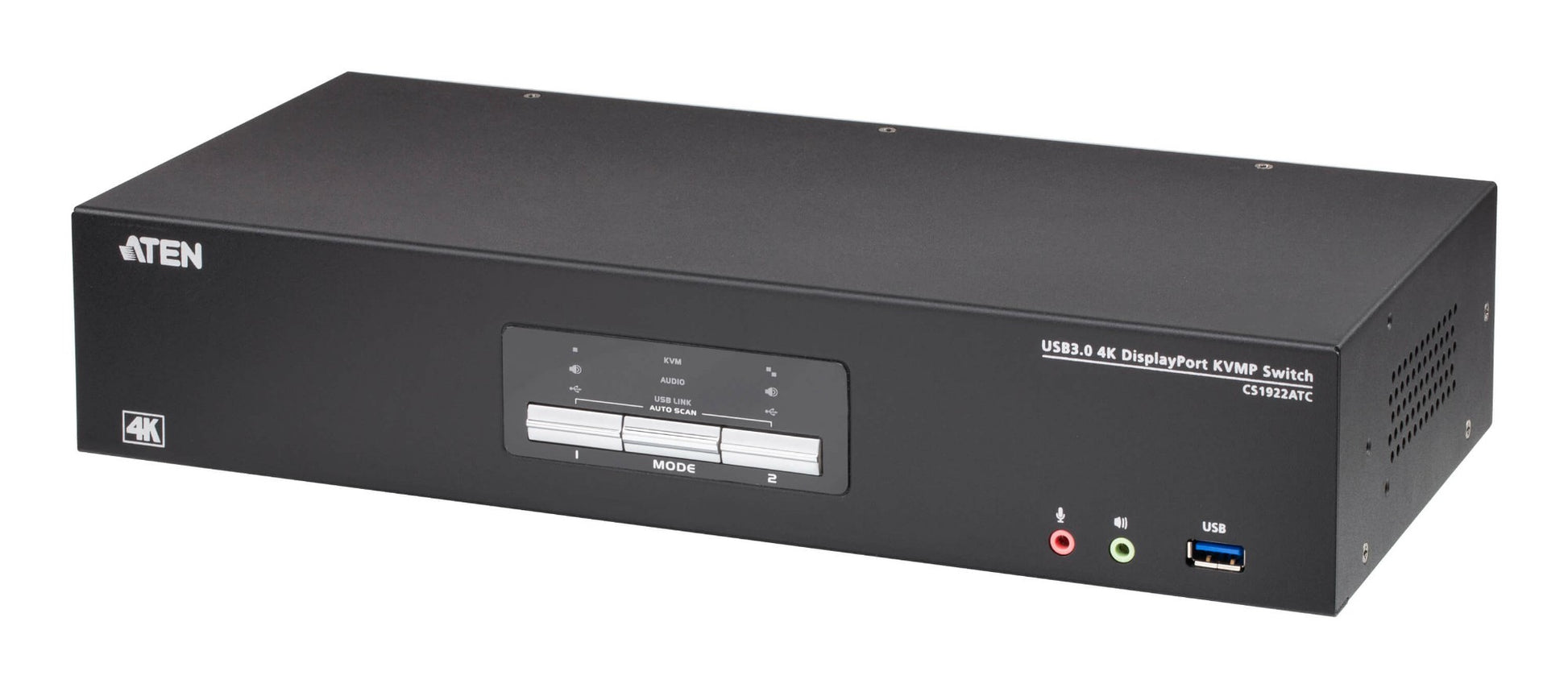

• Black aten usb 3.0 4k displayport kvm switch with silver control buttons and labeled ports on front panel for cs1922atc
1 1

ATEN

ATEN CS1922ATC-AT-U | CS1922ATC 2-Port 4K DisplayPort KVMP Switch, ATC, 2048x2048

ATEN CS1922ATC-AT-U | CS1922ATC 2-Port 4K DisplayPort KVMP Switch, ATC, 2048x2048

CS1922ATC-AT-U

Stock Status: Enquire

$1,870.93 AUD
$1,870.93 AUD
$1,870.93 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CS1922ATC is a 2-port USB 3.0 4K DisplayPort KVMP™ switch purpose-built for Air Traffic Control environments, including ATC towers, approach control rooms, and area control centres. It supports the critical 2048 x 2048 @ 60 Hz radar monitoring resolution and features Zero-Second Switch technology for uninterrupted, real-time switching with no black screen — essential for mission-critical operations. Dual lockable DC jacks provide power redundancy and failover protection, while the built-in 2-port USB 3.1 Gen 1 hub delivers SuperSpeed 5 Gbps data transfer rates.

Patented Video DynaSync™ and EDID Expert™ technologies eliminate boot-up display problems and ensure optimal resolution performance across all connected displays. An RS-232 serial port supports legacy device compatibility, and computer selection is available via front panel pushbuttons, hotkeys, mouse, or remote port selector. A grounding terminal protects against power surges and static electricity. Order now at iptrading.com.au — trusted by Australian IT professionals.

Features

- Zero-Second Switch – continuous video stream during port switching with no black screen, essential for mission-critical ATC operations
- Power redundancy – dual lockable DC jacks provide automatic failover to ensure constant availability
- Supports 2048 x 2048 @ 60 Hz radar monitoring resolution, up to 4096 x 2160 @ 60 Hz maximum
- Video DynaSync™ – eliminates boot-up display problems and optimises resolution when switching between computers
- EDID Expert™ – ensures smooth power-up and best video resolution across different connected displays
- Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- RS-232 serial port switching for compatibility with legacy ATC devices and interfaces
- Multiple switching methods: front panel pushbuttons, hotkeys, mouse, RS-232 commands, remote port selector
- Grounding terminal for protection against power surges and static electricity
- Front panel audio takes priority over rear panel audio connections
- Purpose-built for ATC towers, approach control rooms, and area control centres

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- KVM Ports: 2 x USB 3.0 4K DisplayPort
- Radar Monitoring Resolution: 2048 x 2048 @ 60 Hz
- Maximum Video Resolution: 4096 x 2160 @ 60 Hz
- DisplayPort Version: 1.2
- Built-in USB Hub: 2-port USB 3.1 Gen 1, SuperSpeed 5 Gbps
- Keyboard/Mouse Ports: USB 2.0 Type-A
- Audio: Front and rear panel microphone and speaker jacks
- Serial Port: RS-232 for legacy device and remote switching
- Power: 2 x lockable DC jacks with power redundancy/failover
- Grounding Terminal: Yes, for surge and static protection
- Form Factor: Desktop

FAQs

Q: Why is the CS1922ATC specifically designed for Air Traffic Control use?
A: The CS1922ATC supports the specialist 2048 x 2048 @ 60 Hz resolution required for radar monitoring displays, features Zero-Second Switch technology to eliminate any black screen during switching, and includes dual lockable DC jacks for power redundancy — all critical requirements in ATC towers, approach control rooms, and area control centres where continuous, uninterrupted operation is mandatory.

Q: What is Zero-Second Switch technology?
A: Zero-Second Switch is an ATEN technology that provides a continuous video stream during port switching, meaning there is no black screen or display interruption. This is essential in mission-critical environments like Air Traffic Control where operators cannot afford any loss of situational awareness.

Q: How does the CS1922ATC handle power redundancy?
A: The switch is equipped with two lockable DC power jacks. If one power source fails, the second takes over automatically, ensuring the KVM switch remains operational at all times. This failover capability is a key requirement for ATC and other safety-critical deployments.

Q: What is the difference between the CS1922ATC and the CS1924ATC?
A: The CS1922ATC supports 2 KVM ports, while the CS1924ATC supports 4 KVM ports. Both are purpose-built for Air Traffic Control scenarios and share the same core ATC-specific features, including Zero-Second Switch, power redundancy, and 2048 x 2048 @ 60 Hz radar display support.

Q: Does the CS1922ATC support legacy serial devices?
A: Yes. The CS1922ATC includes an RS-232 serial port that enables switching of legacy serial-connected devices, maintaining compatibility with existing ATC infrastructure and interface hardware.

Q: Can I purchase the ATEN CS1922ATC in Australia from IP Trading?
A: Yes. The CS1922ATC is available through iptrading.com.au, a trusted Australian B2B IT hardware reseller. IP Trading supplies ATEN KVM solutions to IT professionals, government agencies, and critical infrastructure operators across Australia. Contact us for pricing, lead times, or bulk order enquiries.
