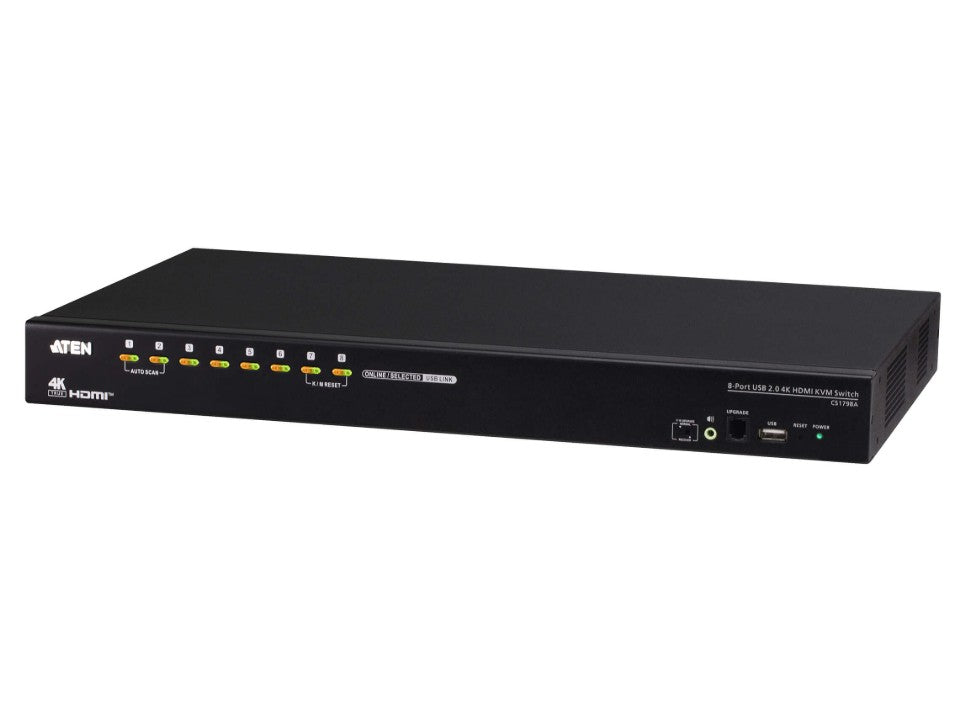

• Black aten cs1798a-AT-U 8-port usb 2.0 4k hdmi kvm switch with front indicator lights and ports for seamless device control
1 1

ATEN

ATEN CS1798A-AT-U | 8-Port 4K HDMI KVM Switch, 4096x2160, Cascade to 512

ATEN CS1798A-AT-U | 8-Port 4K HDMI KVM Switch, 4096x2160, Cascade to 512

CS1798A-AT-U

Stock Status: Enquire

$924.72 AUD
$924.72 AUD
$924.72 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CS1798A is an enterprise-grade 8-port KVM switch delivering 4K DCI resolution (4096 x 2160 @ 60Hz) over HDMI, enabling a single USB console to control up to 8 computers with crisp, high-fidelity video. Designed for demanding rack environments, it supports 3-level cascading to manage up to 512 computers, multi-display stacking across up to 8 monitors, and includes a built-in 2-port USB 2.0 hub for shared peripheral access — making it ideal for data centres, server rooms, and broadcast facilities.

The CS1798A offers flexible port selection via front-panel pushbuttons, hotkeys, and an intuitive OSD with backup/restore capability. Video DynaSync™ eliminates boot-up display issues and optimises resolution during switching, while Broadcast Mode allows simultaneous operations across all connected computers. The 1U rack-mount metal chassis includes a rack mounting kit and firmware upgrade support via RJ11 for long-term compatibility. Available now at iptrading.com.au — competitive prices and local support.

Features

- 4K DCI resolution support (4096 x 2160 @ 60Hz) for high-fidelity HDMI video
- Controls up to 8 HDMI computers from a single USB console
- 3-level cascading expands control to up to 512 computers
- Multi-display stacking: stack up to 8 units for video across up to 8 monitors
- Video DynaSyncâ„¢ eliminates boot-up display issues and optimises resolution during switching
- Built-in 2-port USB 2.0 hub for shared peripheral access (front and rear panels)
- Independent switching of KVM focus and USB peripheral focus for operational flexibility
- Multiple port selection methods: front-panel pushbuttons, hotkeys, and OSD
- Auto Scan Mode cycles through connected computers for continuous monitoring
- OSD Backup/Restore for administrator configuration and user profile management
- Broadcast Mode performs operations simultaneously on all selected computers
- Firmware upgradeable via RJ11 port for long-term compatibility
- PC keyboard emulation for Mac and Sun keyboard layouts
- 1U rack-mount metal chassis with rack mounting kit included

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- KVM Ports: 8 x HDMI Female, 8 x USB Type-B Female, 8 x 3.5mm Audio Jack Female
- Console: 1 x HDMI, 2 x USB Type-A, 2 x 3.5mm Audio Jack
- Maximum Video Resolution: 4K DCI (4096 x 2160 @ 60Hz)
- Cascade: Up to 3 levels, supporting up to 512 computers
- Multi-Display: Stack up to 8 units, display across up to 8 monitors
- Built-in USB 2.0 Hub: 2 ports (1 x front panel, 1 x rear panel)
- Port Selection: Front panel pushbuttons, Hotkeys, OSD
- Keyboard/Mouse Emulation: USB
- Firmware Upgrade Port: 1 x RJ11
- Housing: Metal, 1U Rack-mount
- Rack Mounting Kit: Included

FAQs

Q: How many computers can the ATEN CS1798A control?
A: Directly, the CS1798A controls up to 8 HDMI computers from a single console. By cascading up to three levels with additional CS1798A units, it can manage up to 512 computers from one keyboard, monitor, and mouse.

Q: What is the maximum video resolution supported?
A: The CS1798A supports up to 4K DCI resolution — 4096 x 2160 at 60Hz — over HDMI, providing crisp, high-fidelity display output suitable for demanding broadcast and data centre environments.

Q: Can the CS1798A be used in a multi-monitor setup?
A: Yes. The multi-display stacking feature allows up to 8 CS1798A units to be stacked together, enabling video output across up to 8 monitors simultaneously for dual, triple, quad, or extended multi-display configurations.

Q: What USB peripherals can be shared across connected computers?
A: The built-in 2-port USB 2.0 hub (one port on the front panel, one on the rear) allows shared USB peripherals such as flash drives, printers, or scanners to be accessed by any connected computer. KVM and USB peripheral focus can be switched independently.

Q: Is the CS1798A compatible with Mac and Sun keyboards?
A: Yes. PC keyboard combinations are emulated to replicate Mac and Sun keyboard layouts, ensuring cross-platform compatibility without the need for dedicated keyboards.

Q: Can I purchase the ATEN CS1798A in Australia with local support?
A: Yes. The CS1798A is available now at iptrading.com.au, an Australian B2B IT hardware reseller offering competitive pricing and local support for business and enterprise customers.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
