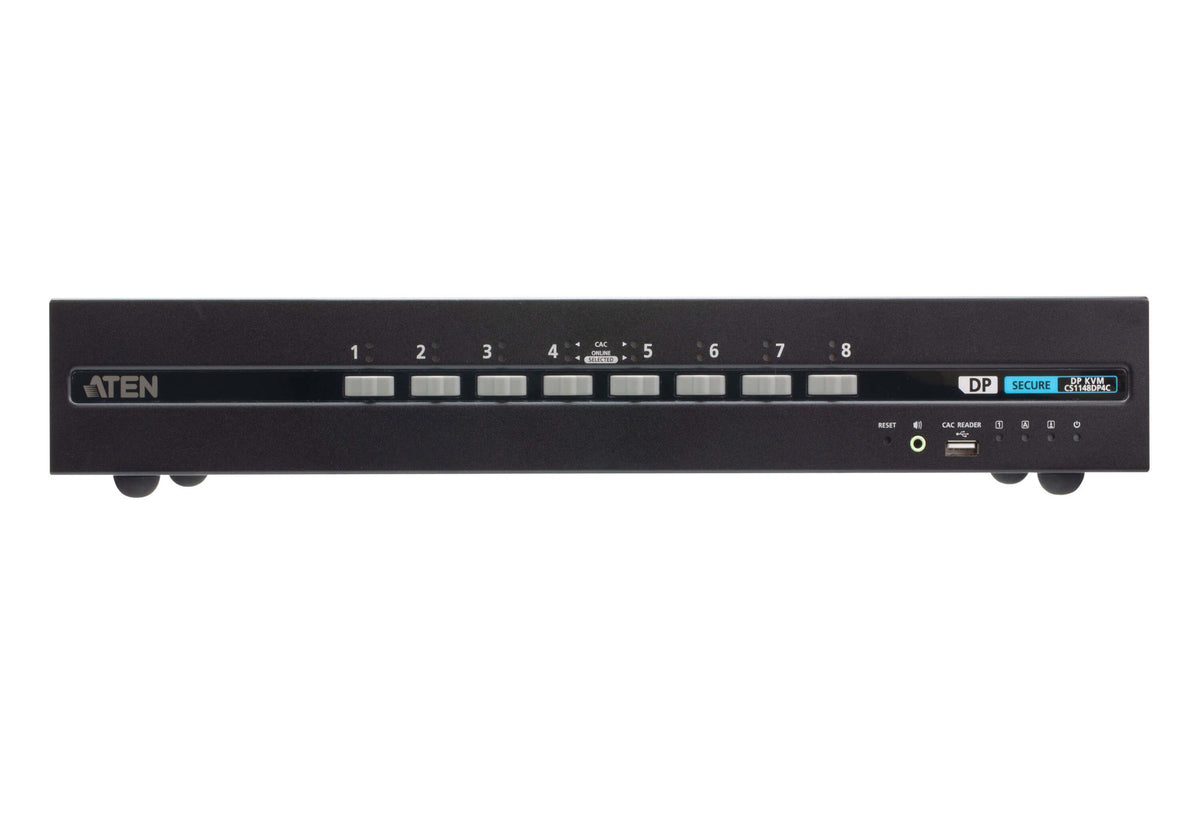

• Black aten cs1148dp4c-at-u 8-port dual displayport secure kvm switch with labeled input buttons and usb ports on back
1 1

ATEN

ATEN CS1148DP4C-AT-U | 8-Port Dual DisplayPort Secure KVM Switch with CAC, PSD PP v4.0

ATEN CS1148DP4C-AT-U | 8-Port Dual DisplayPort Secure KVM Switch with CAC, PSD PP v4.0

CS1148DP4C-AT-U

Stock Status: Enquire

$4,689.44 inc. GST
$4,263.13 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The ATEN CS1148DP4C is an 8-port dual-display DisplayPort secure KVM switch designed for high-security environments requiring strict isolation between computer sources and shared peripherals. Supporting up to 8 computers across varying security classifications, it shares a keyboard, mouse, dual DisplayPort monitors (up to 3840×2160 @ 30 Hz), speakers, and a CAC (Common Access Card) reader from a single console — all while maintaining NIAP-certified PSD PP v4.0 compliance. Purpose-built for government, military, healthcare, and financial institutions where data integrity is non-negotiable.

Security is enforced at every layer: always-on chassis intrusion detection renders the switch inoperable if tampered with, non-reprogrammable firmware prevents exploitation, and unidirectional data flow ensures no cross-contamination between connected computers. Automatic keyboard/mouse data buffer purging on port switch, configurable USB device filtration, and strict audio filtration further eliminate attack vectors. Port selection is limited to front-panel pushbuttons and a Remote Port Selector (RPS) — no software-based switching, no risk. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- NIAP-certified PSD PP v4.0 compliant — meets the highest peripheral sharing security standards for government and defence deployments
- Always-on chassis intrusion detection — switch is rendered inoperable upon any physical tampering attempt
- Tamper-evident labels — provides clear visual indication of unauthorised internal access attempts
- Non-reprogrammable firmware — eliminates firmware-based attack vectors
- Unidirectional data flow — ensures data flows only between console devices and the currently selected computer
- Automatic keyboard/mouse buffer purge — user data is cleared each time KVM port focus is switched
- Configurable Device Filtration — administrators can whitelist or block specific USB authentication and HID devices
- Strict audio filtration — prevents audio leakage between connected computer sources
- Restricted peripheral connectivity — unauthorised HIDs, video, or authentication devices are automatically rejected
- Video DynaSync™ — eliminates boot-up display issues and optimises resolution settings when switching sources
- Manual switching only (front panel pushbuttons + RPS) — removes software switching as a potential attack surface
- LED indicators for peripheral filtering status and KVM security status
- Administrator audit log support — authorised admins can review KVM activity logs
- TAA Compliant — suitable for US federal procurement and allied-nation equivalent programmes

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Computer Ports: 8 (Dual DisplayPort per port)
- Console: 1 Local User Console
- Video Interface: DisplayPort (Dual Display)
- Maximum Resolution: 3840 x 2160 @ 30 Hz
- USB Ports: 19 x USB
- DisplayPort Ports: 18 x DisplayPort
- CAC (Common Access Card) Reader Support: Yes
- Audio: Analog Speaker Support
- Port Selection: Front Panel Pushbuttons / Remote Port Selector (RPS)
- Form Factor: Desktop
- Housing: Metal
- Dimensions (L x W x H): 43.24 x 20.49 x 6.55 cm
- Weight: 3.17 kg
- Compliance: NIAP PSD PP v4.0 Certified, TAA Compliant

FAQs

Q: What security certification does the CS1148DP4C hold?
A: The CS1148DP4C is NIAP-certified as compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0), making it suitable for use in government, military, and other high-security environments that require verified peripheral isolation.

Q: Can this KVM switch connect computers of different security classifications?
A: Yes. The CS1148DP4C is specifically designed to share peripherals across up to 8 computers operating at different security classification levels, with strict unidirectional data flow and hardware-enforced isolation preventing cross-contamination between connected systems.

Q: Does the switch support CAC (Common Access Card) readers?
A: Yes. The switch includes dedicated CAC (Common Access Card) reader support, allowing a single smart card reader to be shared across all connected computers — essential for DoD and government authentication workflows.

Q: What happens if someone attempts to physically tamper with the unit?
A: The CS1148DP4C features always-on chassis intrusion detection that renders the switch permanently inoperable if physical tampering is detected. Tamper-evident labels also provide a visible indication of any attempt to access internal components.

Q: Is the switch compatible with 4K monitors?
A: Yes. The switch supports dual DisplayPort video outputs per computer port at a maximum resolution of 3840 x 2160 @ 30 Hz, enabling a dual 4K monitor workspace for each of the 8 connected computers.

Q: Can I purchase the ATEN CS1148DP4C in Australia through IP Trading?
A: Yes. The CS1148DP4C is available to order directly through iptrading.com.au — an Australian-owned and operated IT hardware reseller since 2001, providing B2B procurement support, competitive pricing, and local service for government and enterprise customers.
