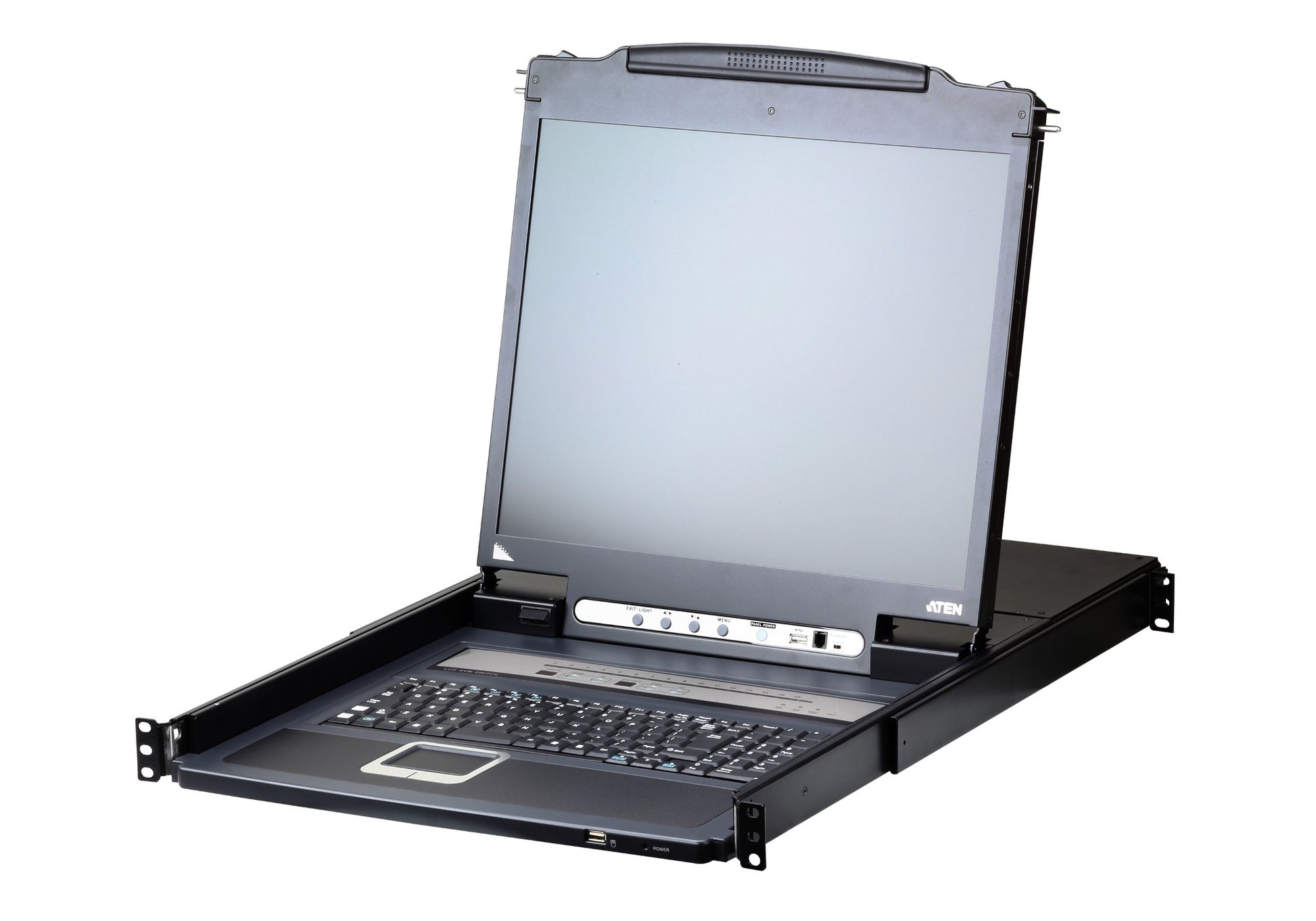

ATEN CL5716IM-ATA-AU | 17" 16-Port PS/2-USB VGA LCD KVM over IP Switch, Rack Mount

ATEN CL5716IM-ATA-AU | 17" 16-Port PS/2-USB VGA LCD KVM over IP Switch, Rack Mount

CL5716IM-ATA-AU

Stock Status: Enquire

$2,505.83 AUD
$2,505.83 AUD
$2,505.83 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CL5716IM is a 16-port LCD KVM over IP switch featuring an integrated 17" LCD console in a 1U rack-mount form factor. It supports both PS/2 and USB interfaces alongside VGA video, making it compatible with a wide range of legacy and modern servers. The built-in LCD panel folds flat into the rack when not in use, saving valuable space in the data centre or server room. Remote IP access allows administrators to manage connected servers from anywhere on the network, streamlining out-of-band management tasks. Designed for enterprise and data centre environments, the CL5716IM provides centralised control over up to 16 servers from a single console, with daisy-chain expansion support for even larger deployments. Its robust rack-mount chassis, integrated keyboard and touchpad, and IP-based remote access make it a versatile and cost-effective KVM solution for IT teams managing mixed server environments. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- Integrated 17" fold-flat LCD console eliminates the need for a separate monitor, keyboard, and mouse
- 16 PS/2 and USB KVM ports for broad server compatibility including legacy hardware
- KVM over IP remote access enables out-of-band server management from any networked location
- 1U rack-mount design maximises space efficiency in standard 19" server racks
- On-Screen Display (OSD) for intuitive port switching and server management
- Daisy-chain expansion supports management of larger server environments beyond 16 ports
- VGA video support up to 1280 x 1024 resolution for clear server console output
- Integrated keyboard and touchpad provide a complete local console in a single unit

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 16 x KVM (PS/2 and USB) server ports
- Video: VGA, up to 1280 x 1024 resolution
- Integrated Display: 17" LCD panel with fold-flat design
- Form Factor: 1U rack-mount
- Remote Access: IP-based KVM over IP (out-of-band management)
- Keyboard/Pointing: Integrated keyboard and touchpad
- Daisy-Chain: Expandable via daisy-chaining additional units
- OSD: On-Screen Display for port selection and management
- Power: Rack-mount chassis with standard power input
- Colour: Black

FAQs

Q: How many servers can the CL5716IM manage directly?
A: The CL5716IM supports up to 16 servers connected directly via its 16 KVM ports. Additional servers can be managed by daisy-chaining compatible ATEN KVM switches.

Q: Does this KVM switch support remote access over IP?
A: Yes, the CL5716IM includes KVM over IP functionality, allowing administrators to access and manage connected servers remotely over a network without needing physical presence at the rack.

Q: What server interface types are supported?
A: The switch supports both PS/2 and USB server interfaces, as well as VGA video, ensuring compatibility with a broad range of legacy and modern server hardware.

Q: What is the display size and does the LCD retract into the rack?
A: The integrated LCD display is 17 inches. It features a fold-flat design that allows the panel to be neatly retracted into the 1U rack space when not in use, keeping the rack tidy and saving space.

Q: Can I purchase the ATEN CL5716IM in Australia through IP Trading?
A: Yes, the CL5716IM is available through iptrading.com.au. IP Trading is a trusted Australian B2B IT hardware supplier offering authentic ATEN products with reliable local service and support.

Q: Is this switch suitable for data centre deployments?
A: Absolutely. The CL5716IM is purpose-built for rack-mounted data centre and server room environments, offering centralised console access, IP remote management, and an expandable daisy-chain architecture ideal for enterprise deployments.
