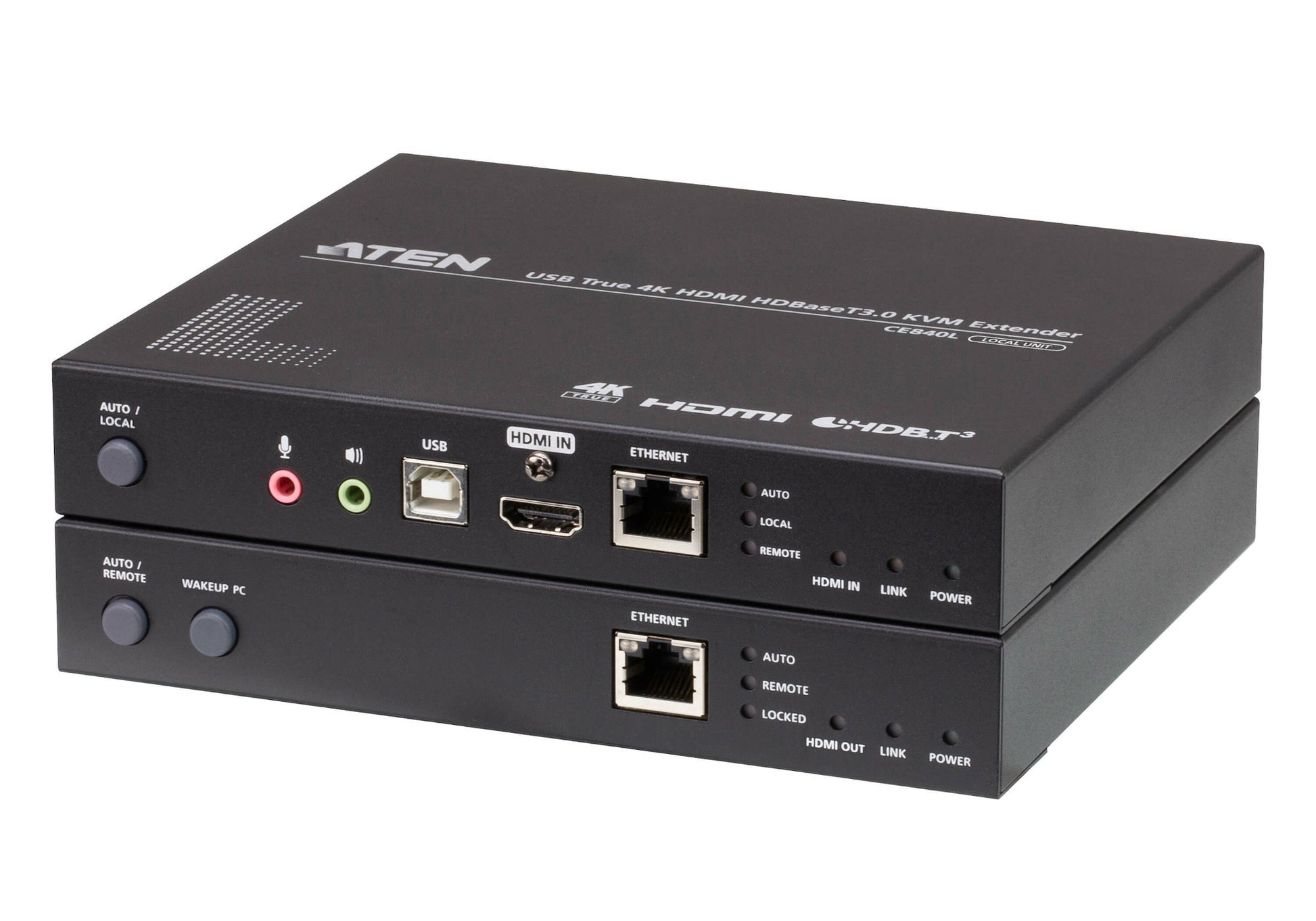

ATEN CE840-AT-U | CE840 True 4K HDMI HDBaseT 3.0 KVM Extender, 100m

ATEN CE840-AT-U | CE840 True 4K HDMI HDBaseT 3.0 KVM Extender, 100m

CE840-AT-U

Stock Status: Enquire

$2,065.91 AUD
$2,065.91 AUD
$2,065.91 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The ATEN CE840 KVM Extender delivers uncompressed True 4K HDMI (3840x2160 and 4096x2160 @ 60 Hz 4:4:4) over a single Cat 6A cable at distances up to 100m using HDBaseT 3.0 technology. Designed for demanding environments including data centres, factories, healthcare facilities, and broadcast suites, it transmits HDMI video, USB, audio, RS-232 serial, and Ethernet signals between local (transmitter) and remote (receiver) units with zero latency and full HDR10+ support. Dual console operation lets operators work from both ends simultaneously, with active console selection via front-panel pushbutton.

The CE840 supports a Long Reach Mode extending 1080P video up to 150m, and includes four USB 2.0 ports per unit (two for keyboard/mouse, two for peripherals), 3.5mm stereo audio, and full HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. RS-232 serial pass-through enables connected device control, while Ethernet pass-through maintains network access at the remote end. In stock and ready to ship from iptrading.com.au — order now for fast dispatch.

Features

- HDBaseT 3.0 technology — transmits True 4K HDMI, USB, audio, RS-232, and Ethernet over a single Cat 6A cable
- Uncompressed video with zero latency — ideal for latency-sensitive broadcast, medical, and industrial deployments
- True 4K @ 60 Hz 4:4:4 — supports both 3840x2160 and 4096x2160 at full chroma resolution
- HDR10+ support for high dynamic range display environments
- Long Reach Mode — instantly switchable to extend 1080P signals up to 150m
- Dual console operation — simultaneous keyboard, mouse, and monitor access at both local and remote ends
- Active console selection via front-panel pushbutton with LED mode indicator
- 4x USB 2.0 per unit — 2 ports dedicated to KVM (keyboard/mouse), 2 ports for USB peripherals
- Full HDMI audio pass-through — LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio
- 3.5mm stereo audio (mic and speaker) on each unit for independent analogue audio
- RS-232 serial pass-through for control of serial-connected devices
- Ethernet pass-through — maintains LAN connectivity at the remote workstation
- HDMI loop-out port on each unit for local console monitoring
- Suited for data centres, factories, warehouses, healthcare, and broadcasting applications

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Video Resolution: True 4K — 3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4
- Extension Technology: HDBaseT 3.0
- Max Extension Distance (Standard Mode): 100m over Cat 6A U/FTP
- Long Reach Mode: Up to 150m at 1080P
- Video Interface: HDMI — 1x input and 1x output (local monitor loop-out) per unit
- USB Ports: 4x USB 2.0 per unit (2x KVM, 2x peripheral)
- Audio: 3.5mm stereo mic/speaker + HDMI audio (LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio)
- Serial: RS-232 (DB-9)
- Network: RJ-45 Ethernet pass-through
- HDR Support: HDR10+
- Recommended Cable: Cat 6A U/FTP (ATEN 2L-29330 or equivalent)
- Input Voltage: 12V DC
- Form Factor: Rack-mountable (transmitter and receiver units)

FAQs

Q: What video resolutions does the ATEN CE840 support?
A: The CE840 supports True 4K resolutions — 3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4 — with no compression and zero latency. It also supports HDR10+ for high dynamic range content.

Q: What is the maximum extension distance?
A: In HDBaseT 3.0 Standard Mode, the CE840 extends signals up to 100m over a single Cat 6A U/FTP cable at full True 4K resolution. In Long Reach Mode, it extends 1080P video up to 150m over the same cabling infrastructure.

Q: What cable type is required for the CE840?
A: ATEN recommends Cat 6A U/FTP cabling (such as ATEN 2L-29330) or higher for reliable 4K operation at 100m. Standard Cat 6A or Cat 7 may also be used, but U/FTP shielding is recommended for best signal integrity.

Q: Can both the local and remote operators control the computer simultaneously?
A: Yes. The CE840 supports dual console operation, meaning keyboard, mouse, and monitor connections at both the local (transmitter) and remote (receiver) ends are active. The active control console can be selected at any time using the front-panel pushbutton, with LED indication showing which end is in control.

Q: What audio formats are supported over the HDMI extension?
A: The CE840 passes HDMI audio including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. It also provides independent 3.5mm stereo microphone and speaker connections on each unit for local audio use.

Q: Can I purchase the ATEN CE840 in Australia from IP Trading?
A: Yes. The CE840 is stocked and sold by IP Trading at iptrading.com.au, Australia's specialist B2B IT hardware reseller. It is in stock and ready for fast dispatch to customers across Australia.
