ATEN CE824-AT-U | HDBaseT 2.0 KVM Extender, Dual View HDMI, 4K@100m

ATEN CE824-AT-U | HDBaseT 2.0 KVM Extender, Dual View HDMI, 4K@100m

CE824-AT-U

Stock Status: Enquire

$2,151.32 AUD
$2,151.32 AUD
$2,151.32 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

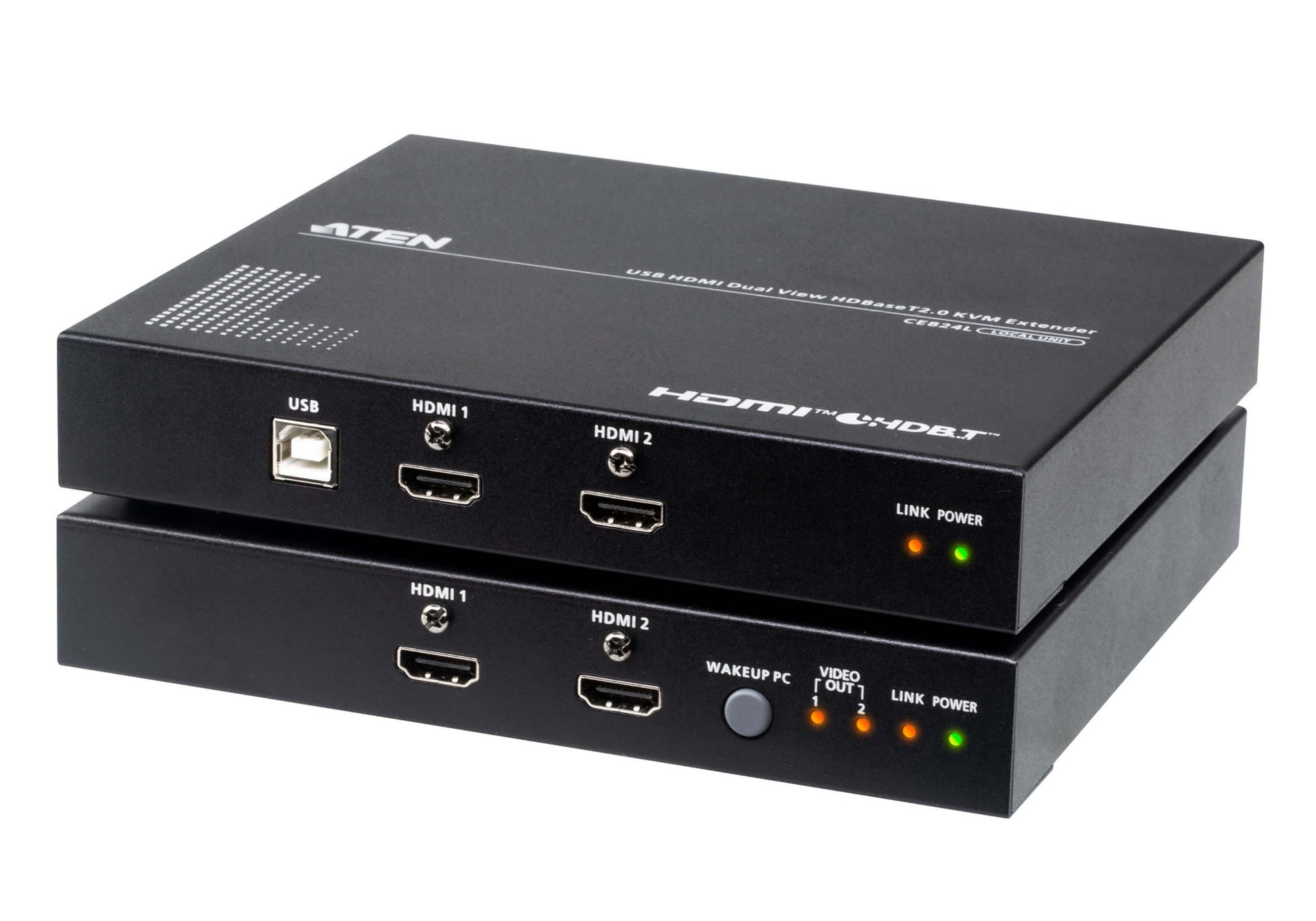

The ATEN CE824 HDBaseT 2.0 KVM Extender delivers long-distance transmission of uncompressed HDMI video, stereo audio, USB, and RS-232 signals over a single Cat 6/6A cable. Supporting single-view 4K (4096×2160@30Hz) at up to 100m or dual-display 1080p at the same distance, it is purpose-built for control centres, banking environments, industrial warehouses, and extended workstations requiring high-fidelity video at distance. A Long Reach mode extends operation to 150m at 1080p single view or 720p dual view.

The remote unit provides four USB 2.0 Type-A ports for peripherals, while EDID buffering ensures stable power-up and display quality. HDCP 2.2 compliance, 3D and Deep Color support, and RS-232 passthrough make the CE824 a complete enterprise-grade extension solution. The kit ships as a matched pair (CE824L local unit + CE824R remote unit) and is rack mount compatible for clean integration into existing infrastructure. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- Dual-view HDMI support — connect two displays at the remote unit for expanded desktop access
- Transmits uncompressed HDMI video, stereo audio, USB 2.0, and RS-232 over a single Cat 6/6A cable
- Standard Mode: single view up to 4K@100m or dual view up to 1080p@100m
- Long Reach Mode: single view up to 1080p@150m or dual view up to 720p@150m
- Switchable HDBaseT Standard / Long Reach mode for flexible deployment
- 4 x USB 2.0 Type-A ports on the remote unit for multi-peripheral connectivity
- EDID buffering ensures stable display detection on power-up and maximises image quality
- HDCP 2.2 compliant with support for 3D and Deep Color HDMI content
- LED status indication for real-time HDBaseT signal monitoring
- Rack mount compatible for integration into server room or AV equipment racks
- Simple single-cable installation reduces cabling complexity across long runs
- Ideal for control centres, banking, industrial warehouses, and extended workstations

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Video Resolution (Single View, Standard Mode): Up to 4096 x 2160 @ 30Hz (4:4:4) over 100m
- Video Resolution (Dual View, Standard Mode): Up to 1920 x 1080 on two displays over 100m
- Long Reach Mode (Single View): Up to 1080p @ 150m
- Long Reach Mode (Dual View): Up to 720p @ 150m
- Transmission Medium: Single Cat 6 / Cat 6A / ATEN 2L-29330 cable
- HDBaseT Version: 2.0
- HDMI Support: 3D, Deep Color, 1080p, 4K; HDCP 2.2 compatible
- USB Ports (Remote Unit): 4 x USB 2.0 Type-A
- Signal Types Transmitted: Uncompressed HDMI video, stereo audio, USB 2.0, RS-232
- Package Contents: 1x CE824L (Local Unit) + 1x CE824R (Remote Unit)
- Mounting: Rack mount compatible
- LED Indication: HDBaseT signal transmission status

FAQs

Q: What is the maximum video resolution the CE824 supports and at what distance?
A: In Standard Mode with a single display, the CE824 supports up to 4096 x 2160 @ 30Hz (4K) over 100m using a single Cat 6 or Cat 6A cable. For dual-display operation, it delivers up to 1080p on both screens over the same 100m distance.

Q: Can the CE824 extend the signal beyond 100 metres?
A: Yes. The Long Reach mode allows extension up to 150m, supporting single-view 1080p or dual-view 720p. A dedicated mode switch on the unit toggles between HDBaseT Standard and Long Reach modes.

Q: What type of cable does the CE824 require?
A: The CE824 uses a single Cat 6 or Cat 6A cable for all signal transmission — including HDMI video, audio, USB, and RS-232. ATEN's own 2L-29330 cable is also compatible and recommended for optimal performance.

Q: How many USB peripherals can be connected at the remote end?
A: The remote unit (CE824R) provides 4 x USB 2.0 Type-A ports, allowing you to connect a keyboard, mouse, and additional peripherals such as a USB hub, storage device, or smart card reader at the remote workstation.

Q: What industries or environments is the CE824 best suited to?
A: The CE824 is designed for deployments where the computer must be kept at a distance from the operator — including control centres, banking and finance workstations, industrial warehouses, broadcast environments, and corporate extended workstations requiring secure, high-quality KVM extension.

Q: Can I purchase the ATEN CE824 in Australia with local support?
A: Yes. The CE824 is available through iptrading.com.au, an Australian B2B IT hardware reseller offering enterprise-grade products with expert pre-sales and post-sales support. Visit iptrading.com.au to place your order or request a quote.
