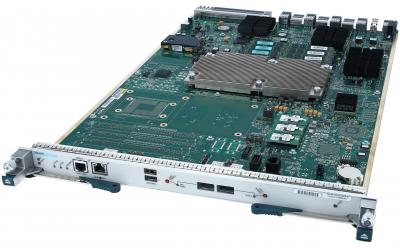

Arista DCS-7516-SUP2 | 7500R Supervisor-2 Module for 7516N, 64GB RAM, No SSD

Arista DCS-7516-SUP2 | 7500R Supervisor-2 Module for 7516N, 64GB RAM, No SSD

Authorised Arista Partner

SKU:DCS-7516-SUP2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This product is end of life. Contact us for alternatives.

Description

The Arista DCS-7516-SUP2 is a Supervisor-2 control-plane module for the Arista 7500R Series 7516N chassis. This variant ships with 64 GB of system memory and without the optional SSD, and it runs Arista EOS to handle all control plane and management functions for the chassis.

It is built around a 1.9 GHz multi-core x86 64-bit processor with 4 GB of flash storage, two 100/1000 RJ-45 management ports, an RJ-45 RS-232 serial port and two USB 2.0 interfaces. A second supervisor can be installed to provide 1+1 supervisor redundancy, and a pulse-per-second clock input supports synchronisation with an external source or IEEE 1588 PTP.

Features

- Runs Arista Extensible Operating System (EOS)
- Handles all control plane and management functions
- 1+1 supervisor redundancy when paired with a second module
- Multi-core hyper-threaded x86 CPU
- Pulse-per-second clock input for synchronisation with an external source or IEEE 1588 PTP
- User applications can run in a VM
- Optional SSD storage support

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Processor: 1.9 GHz, multi-core, x86, 64-bit
- System memory: 64 GB
- Flash storage: 4 GB
- Management ports: 2 x 100/1000 RJ-45
- Serial port: 1 x RJ-45 RS-232
- USB: 2 x USB 2.0
- SSD storage: 120 GB optional (not included with this SKU)
- Chassis support: DCS-7516N
- Dimensions (WxHxD): 17.5 x 1.75 x 23 in (44.45 x 4.4 x 58.4 cm)
- Weight: 12 lbs (5.4 kg)
- Power: 120W typical, 150W maximum
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 10,000 ft (0-3,000 m)

FAQs

Q: Which chassis is the DCS-7516-SUP2 compatible with?
A: This Supervisor-2 module is designed for the Arista DCS-7516N chassis in the 7500R Series.

Q: Does this supervisor include an SSD?
A: No. This SKU is the 64 GB RAM variant without the SSD. A 120 GB SSD is available as an option.

Q: Can I run two supervisors for redundancy?
A: Yes. Installing a second supervisor module provides 1+1 supervisor redundancy for the control plane.

Q: What management and console interfaces are provided?
A: It has two 100/1000 RJ-45 management ports, one RJ-45 RS-232 serial port and two USB 2.0 interfaces.

Q: What operating system does it run?
A: It runs Arista EOS, the Extensible Operating System, and handles all control plane and management functions.

Q: How much power does the module draw?
A: Typical power draw is 120W with a maximum of 150W.
