Arista

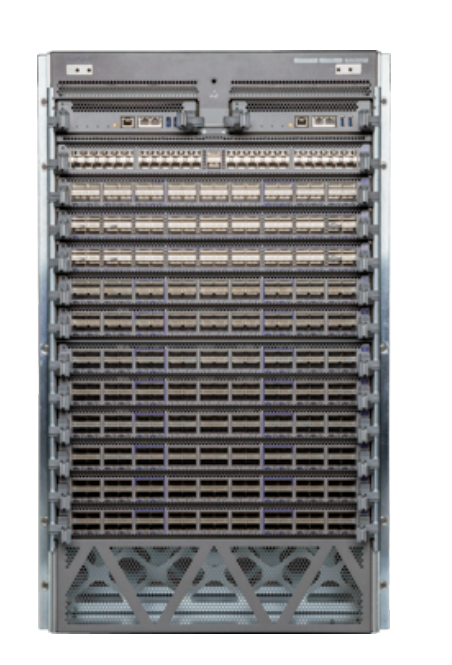

Arista DCS-7512R3-FM | 7500R3 Fabric Module for 7512N Chassis, Slots 1-6

Arista DCS-7512R3-FM | 7500R3 Fabric Module for 7512N Chassis, Slots 1-6

Authorised Arista Partner

SKU:DCS-7512R3-FM

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7512R3-FM is a 7500R3 Series fabric module with an integrated fan, designed for the DCS-7512N chassis. It is required for fabric slots 1-6, and the chassis takes six modules to interconnect every line card in a non-blocking fabric.

Part of the 7500R3 Series of modular 100/400G spine switches, the module spreads packets across fabric links to make full use of fabric capacity. The integrated fan removes the need for a separate fan module. It replaces the earlier DCS-7512R-FM fabric module from the 7500R Series.

Features

- Non-blocking architecture connecting every line card to the fabric over multiple links
- Packets are spread across fabric links to fully use fabric capacity
- Integrated fan removes the need for a separate fan module
- Part of the 7500R3 Series of modular 100/400G spine switches
- Replaces the earlier DCS-7512R-FM (7500R Series) fabric module

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Compatible chassis: DCS-7512N (7500R3 Series)
- Fabric slots populated: 1-6 (six modules required)
- Integrated fan module
- Non-blocking fabric interconnecting all line cards
- 7512R3 system switching capacity: 230 Tbps
- 7512R3 system forwarding rate: 48 Bpps
- 7512R3 system line card slots: 12
- 7512R3 system airflow: Front to Rear

FAQs

Q: Which chassis does the DCS-7512R3-FM fit?
A: It is a fabric module for the Arista DCS-7512N chassis in the 7500R3 Series, and it is required for fabric slots 1-6.

Q: How many fabric modules does the 7512N chassis need?
A: The chassis has six fabric module slots, so six DCS-7512R3-FM modules are required to populate them.

Q: Does this fabric module include a fan?
A: Yes. The fan is integrated into the module, so no separate fan module is needed for the fabric.

Q: Does it replace the DCS-7512R-FM?
A: It is the 7500R3 Series fabric module for the 7512N chassis and replaces the earlier DCS-7512R-FM used in the 7500R Series.

Q: Is the fabric blocking or non-blocking?
A: The 7500R3 fabric is non-blocking, and every line card connects to the fabric over multiple links with traffic spread across them.

Q: What system capacity does a 7512R3 chassis deliver?
A: A 7512R3 system provides 230 Tbps of switching capacity and a 48 Bpps forwarding rate, with 12 line card slots in 18 rack units.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
