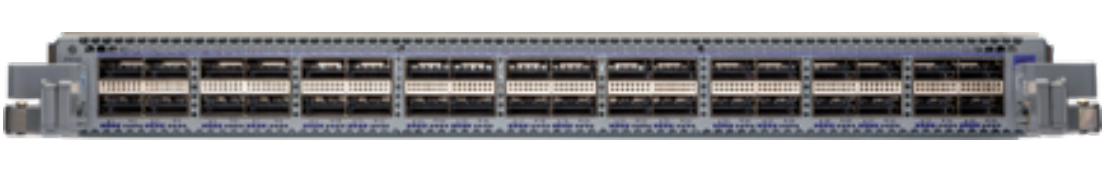

Arista DCS-7500R3-36CQ-LC | 7500R3 36-Port 100GbE QSFP100 Line Card, 8GB Buffer

Arista DCS-7500R3-36CQ-LC | 7500R3 36-Port 100GbE QSFP100 Line Card, 8GB Buffer

Authorised Arista Partner

SKU:DCS-7500R3-36CQ-LC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista 7500R3 36-port 100GbE QSFP100 line card is a modular wire-speed line card for the Arista 7500 chassis, built for data centre spine and routing roles. It provides 36 QSFP100 ports, 3.6 Tbps of forwarding capacity and an 8GB deep port buffer, with support for standard route scale (non-K).

Each port can run at 100G, 40G or 50G, or be broken out to 25G and 10G depending on optics and cables, up to 96 interfaces per card. The card is supported in the DCS-7512N, DCS-7508N and DCS-7504N chassis and runs Arista EOS with LANZ latency analysis, accelerated sFlow and algorithmic ACLs.

Features

- Wire-speed line card with 3.6 Tbps forwarding and 2 Bpps per card
- Deep buffer architecture with virtual output queuing for lossless forwarding
- FlexRoute Engine supports full Internet routing with IP, MPLS and VXLAN protocols
- Algorithmic ACLs and accelerated sFlow
- Runs Arista Extensible Operating System (EOS)
- Integrated LANZ latency analysis and microburst detection
- Supports 100G, 50G, 40G, 25G and 10G port speeds depending on optics and breakout cables

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 36 x QSFP100 ports
- Up to 36 x 100G, 72 x 50G, 36 x 40G or 96 x 25G/10G via breakout
- Switching capacity: 3.6 Tbps
- Forwarding rate: 2 Bpps wire speed
- Port buffer: 8 GB
- Typical power 442 W, maximum 576 W, excluding optics
- Chassis support: DCS-7512N, DCS-7508N, DCS-7504N
- ARP entries (L3 profile): 88k
- MAC addresses (L3 profile): 224k
- IPv4 unicast routes (L3 profile): 1450k
- IPv6 unicast routes (L3 profile): 433-483k
- Multicast routes (L3 profile): 112k
- TCAM ACL entries: 24k per chip
- ECMP: 512-way
- Weight: 8.1 kg
- Operating temperature (system): 0 to 40 C

FAQs

Q: Which Arista chassis support this line card?
A: The DCS-7500R3-36CQ-LC is supported in the DCS-7512N, DCS-7508N and DCS-7504N chassis.

Q: What port speeds does the card support?
A: The 36 QSFP100 ports support 100G, 50G and 40G, and can be broken out to 25G and 10G using suitable optics or breakout cables, up to 96 interfaces in total. 400G is not supported.

Q: How much buffer does the card provide?
A: The card has an 8GB port buffer with virtual output queuing, suited to bursty data centre and routing workloads.

Q: Does this card support 400G?
A: No. This card does not support 400G ports. Its maximum port speed is 100G.

Q: What are the power requirements of the card?
A: Typical power draw is 442 W with a maximum of 576 W, excluding optics. Check chassis power supply capacity when populating multiple cards.

Q: Does it support full Internet routing tables?
A: The card uses the FlexRoute Engine, which supports full Internet routing. This SKU is the standard route scale version, not the K variant.
