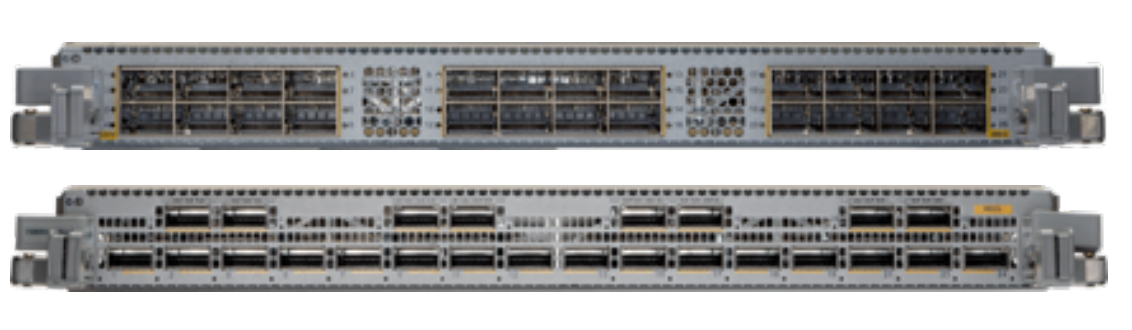

Arista DCS-7500R3-24P-LC | 7500R3 24-Port 400GbE OSFP Line Card, 16GB Buffer

Arista DCS-7500R3-24P-LC | 7500R3 24-Port 400GbE OSFP Line Card, 16GB Buffer

Authorised Arista Partner

SKU:DCS-7500R3-24P-LC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The 7500R3 24-port 400GbE OSFP line card delivers wire-speed 400G connectivity for Arista 7500 Series modular chassis, with 16GB of deep packet buffer and 9.6 Tbps of switching capacity. It suits data centre spine and core deployments handling big data, storage and bursty workloads, and supports 10G, 25G, 50G and 100G speeds via breakout cables and optics.

The line card provides a 4 Bpps forwarding rate and supports Arista Algorithmic ACLs, accelerated sFlow and the FlexRoute engine for Internet-scale IP routing. It is compatible with the DCS-7512N, DCS-7508N and DCS-7504N chassis, allowing existing 7500 Series platforms to scale to high-density 400G.

Features

- 24 wire-speed 400G OSFP ports
- Flexible 10G, 25G, 50G and 100G speeds via breakout cables and optics
- Deep 16 GB buffers for big data and bursty workloads
- Arista Algorithmic ACLs and accelerated sFlow
- FlexRoute engine for Internet-scale IP routing
- Compatible with 7512N, 7508N and 7504N chassis

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 24 x 400G OSFP ports
- Breakout support: up to 96 x 100G, 192 x 50G, 192 x 25G or 192 x 10G
- Max 40G ports: 24
- Max total interfaces: 192
- Port buffer: 16 GB
- Switching capacity: 9.6 Tbps
- Forwarding rate: 4 Bpps
- Typical (max) power: 538 W (722 W), excluding optics
- Weight: 19 lbs (8.6 kg)
- Dimensions (WxHxD): 17.5 x 1.75 x 23 in (44.5 x 4.5 x 58.4 cm)
- Chassis support: DCS-7512N, DCS-7508N, DCS-7504N
- L3 profile: 88k ARP entries, 224k MAC addresses, 1450k IPv4 unicast routes
- Additional IPv4 unicast routes with Flex: +1792k
- IPv6 unicast routes: 433-483k
- Multicast routes: 112k
- TCAM ACL entries: 24k per chip
- Traffic Policy ACL prefixes: 30k IPv4, 10k IPv6
- ECMP: 512-way

FAQs

Q: Which chassis is the DCS-7500R3-24P-LC compatible with?
A: It is compatible with the Arista DCS-7512N, DCS-7508N and DCS-7504N modular chassis.

Q: Can this line card run speeds below 400G?
A: Yes. Using breakout cables and optics, the 24 OSFP ports can provide up to 96 x 100G, 192 x 50G, 192 x 25G or 192 x 10G interfaces.

Q: How much packet buffer does the line card have?
A: It has 16 GB of port buffer, suited to big data and bursty traffic workloads.

Q: What is the switching capacity and forwarding rate?
A: The line card provides 9.6 Tbps of switching capacity and a 4 Bpps forwarding rate.

Q: What is the power draw of the line card?
A: Typical power draw is 538 W with a maximum of 722 W, excluding optics. Plan chassis power capacity accordingly.

Q: Does it support advanced ACL and telemetry features?
A: Yes. It supports Arista Algorithmic ACLs and accelerated sFlow, along with the FlexRoute engine for large-scale IP routing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
