Arista

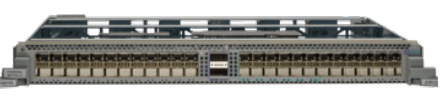

Arista DCS-7500R2AK-48YCQ-LC | 7500R2 Line Card, 48-Port 10/25G SFP+, 2x 100G QSFP, 4GB

Arista DCS-7500R2AK-48YCQ-LC | 7500R2 Line Card, 48-Port 10/25G SFP+, 2x 100G QSFP, 4GB

Authorised Arista Partner

SKU:DCS-7500R2AK-48YCQ-LC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The DCS-7500R2AK-48YCQ-LC is a 7500R2 series line card for Arista 7500 modular chassis, delivering 48 SFP+ ports at 10GbE (12 of them 25G-capable) plus 2 QSFP100 ports for 100GbE uplinks. It provides wire-speed forwarding of 837 Mpps with 4 GB of port buffer and support for 2M routes, making it suited to data centre spine and core deployments that need deep buffering and high route scale.

The line card supports AlgoMatch and Accelerated sFlow, and runs Arista EOS in the 7500R modular chassis family. It is compatible with the DCS-7516N, DCS-7512N, DCS-7508N, DCS-7504N, DCS-7504 and DCS-7508 chassis, with typical power draw of 209W (229W maximum).

Features

- 48 SFP+ ports for 10G, with 12 ports 25G-capable with FC and RS FEC
- 2 dedicated 100G QSFP100 ports
- 837 Mpps wire-speed performance
- 4 GB port buffer and 2M route capacity
- AlgoMatch support for flexible, scalable lookups
- Accelerated sFlow support
- Power-efficient 10/25G with dedicated 100G ports
- Runs Arista EOS in the 7500R modular chassis family

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x SFP+ (10GbE, 12 ports 25G-capable with FC and RS FEC), 2 x QSFP100 (100GbE)
- Max 10GbE: 56 (48 SFP+ and 8 breakout)
- Max 25GbE: 12 + 8
- Max 40GbE: 2
- Max 50GbE: 4
- Max 100GbE: 2
- Forwarding performance: 837 Mpps
- Port buffer: 4 GB
- Routes: 2M
- AlgoMatch: Yes
- Accelerated sFlow: Yes
- Typical (max) power: 209W (229W)
- Dimensions (WxHxD): 44.5 x 4.5 x 58.4 cm
- Weight: 5.2 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90%
- Operating altitude: 0 to 3,000 m
- Chassis support: DCS-7516N, DCS-7512N, DCS-7508N, DCS-7504N, DCS-7504, DCS-7508

FAQs

Q: Which Arista chassis is this line card compatible with?
A: It supports the DCS-7516N, DCS-7512N, DCS-7508N, DCS-7504N, DCS-7504 and DCS-7508 modular chassis.

Q: How many ports run at 25GbE?
A: 12 of the 48 SFP+ ports are 25G-capable with FC and RS FEC. The remaining ports operate at 10GbE.

Q: What uplink options does the card provide?
A: It has 2 QSFP100 ports supporting 100GbE, with support for 40GbE and 50GbE operation also listed.

Q: How much buffer and route capacity does it offer?
A: The card provides 4 GB of port buffer and supports 2M routes, with wire-speed forwarding of 837 Mpps.

Q: What is the power consumption of this line card?
A: Typical power draw is 209W, with a maximum of 229W, measured at 25C ambient and 50% load on all ports.

Q: Does it support AlgoMatch and sFlow?
A: Yes, it supports both AlgoMatch and Accelerated sFlow.
