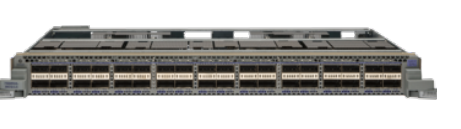

Arista DCS-7500R2A-36CQ-LC | 7500R2 36-Port 100GbE QSFP100 Line Card, AlgoMatch

Arista DCS-7500R2A-36CQ-LC | 7500R2 36-Port 100GbE QSFP100 Line Card, AlgoMatch

Authorised Arista Partner

SKU:DCS-7500R2A-36CQ-LC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

End of life
This product is end of life. Contact us for alternatives.

Description

The Arista DCS-7500R2A-36CQ-LC is a 36-port 100GbE QSFP100 line card for the Arista 7500R modular chassis family, built for data centre spine and core deployments. It delivers 3.34 Bpps of wire-speed performance with a 16GB port buffer, and includes AlgoMatch support for advanced ACL and flow-processing scale.

Each QSFP100 port supports flexible speeds with optics or breakout cables, providing up to 144 x 10GbE or 25GbE, 72 x 50GbE, 36 x 40GbE or 36 x 100GbE. Accelerated sFlow is supported, and the card is compatible with the 4, 8, 12 and 16-slot 7500R series chassis, including the DCS-7516N, DCS-7512N, DCS-7508N, DCS-7504N, DCS-7508 and DCS-7504.

Features

- 36 wire-speed 100G ports with QSFP100 optics, or 144 x 25G with FC and RS FEC
- Flexible 10GbE, 25GbE, 40GbE, 50GbE and 100GbE speeds with optics or cables
- 3.34 Bpps wire-speed performance with 16GB of buffer
- AlgoMatch support for advanced ACL and flow-processing scale
- Accelerated sFlow support
- Compatible with the 7500R series chassis (4, 8, 12 and 16-slot)

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 36 x QSFP100 ports
- Up to 144 x 10GbE / 25GbE, 72 x 50GbE, 36 x 40GbE or 36 x 100GbE
- 3.34 Bpps wire-speed performance
- 16 GB port buffer
- AlgoMatch: Yes
- Accelerated sFlow: Yes
- Typical (max) power: 830 W (894 W)
- Weight: 16.1 lbs (7.3 kg)
- Dimensions (WxHxD): 17.5" x 1.75" x 23" (44.5 x 4.5 x 58.4 cm)
- Chassis support: DCS-7516N, DCS-7512N, DCS-7508N, DCS-7504N, DCS-7504 and DCS-7508

FAQs

Q: Which chassis is the DCS-7500R2A-36CQ-LC compatible with?
A: It is compatible with the Arista 7500R series chassis, including the DCS-7516N, DCS-7512N, DCS-7508N, DCS-7504N, DCS-7508 and DCS-7504.

Q: What port speeds does this line card support?
A: Its 36 QSFP100 ports support up to 144 x 10GbE or 25GbE, 72 x 50GbE, 36 x 40GbE or 36 x 100GbE, using optics or breakout cables.

Q: How much packet buffer does this line card provide?
A: It provides 16GB of port buffer, suited to bursty data centre traffic.

Q: What is AlgoMatch and does this card support it?
A: AlgoMatch is Arista's technology for scaling ACL and flow-processing capacity. This line card supports AlgoMatch.

Q: What is the power draw of this line card?
A: Typical power draw is 830 W, with a maximum of 894 W. Allow for this when planning chassis power supply capacity.

Q: Does this line card support accelerated sFlow?
A: Yes, accelerated sFlow is supported for traffic monitoring and telemetry.
