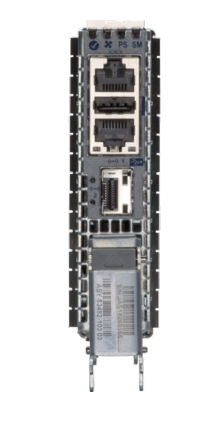

Arista DCS-7368-SUP-D | 7368X4 Supervisor Module, 32GB RAM, 256GB SSD

Arista DCS-7368-SUP-D | 7368X4 Supervisor Module, 32GB RAM, 256GB SSD

Authorised Arista Partner

SKU:DCS-7368-SUP-D

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7368-SUP-D is a supervisor module for the Arista 7368X4 Series modular chassis, supplying the multi-core x86 control plane, management and console connectivity. This variant includes a 256 GB SSD for on-board storage, and pairs 32 GB of system memory with 8 GB of flash.

Management access is provided through a 10/100/1000 port, a 1G SFP management port (SX, LX), an RJ-45 RS-232 serial console and a USB port. The module is supported in the DCS-7368-CH chassis, which has a single supervisor slot, and requires EOS 4.22.0 or later. It is a replaceable component, so the supervisor can be serviced without replacing the rest of the chassis.

Features

- Quad-core CPU and 32 GB memory for a high-performance control plane
- Ethernet and SFP management ports plus serial console and USB
- 256 GB SSD for on-board storage
- Replaceable supervisor module for simple serviceability
- Supports the 7368X4 modular chassis with 4 N+N power supplies and N+1 fans

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Multi-core x86 CPU
- 32 GB system memory
- 8 GB flash storage
- 256 GB SSD storage
- 1 x 10/100/1000 management port
- 1 x 1G SFP management port (SX, LX)
- 1 x RS-232 serial port (RJ-45)
- 1 x USB port
- Typical/max power draw: 30 W / 48 W
- Dimensions (HxWxD): 4.0 x 1.0 x 17.0 in (10.2 x 2.43 x 43.2 cm)
- Weight: 2.5 lbs (1.14 kg)
- Minimum EOS: 4.22.0

FAQs

Q: Which chassis does the DCS-7368-SUP-D support?
A: It is supported in the Arista DCS-7368-CH modular chassis, which provides one supervisor slot.

Q: How does the DCS-7368-SUP-D differ from the DCS-7368-SUP?
A: The DCS-7368-SUP-D includes a 256 GB SSD, while the DCS-7368-SUP has a 30 GB SSD.

Q: What management ports does the supervisor module provide?
A: It has one 10/100/1000 management port, one 1G SFP management port (SX, LX), one RJ-45 RS-232 serial port and one USB port.

Q: What EOS version does it require?
A: The minimum supported release is EOS 4.22.0.

Q: How much memory and storage does the module have?
A: It has 32 GB of system memory, 8 GB of flash storage and a 256 GB SSD.

Q: What is the power draw of the supervisor module?
A: Typical power draw is 30 W, with a maximum of 48 W.
