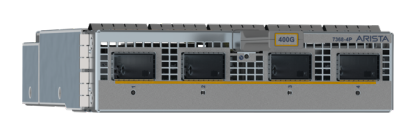

Arista DCS-7368-4P | 7368X4 Series 4-Port 400GbE OSFP Switch Module

Arista DCS-7368-4P | 7368X4 Series 4-Port 400GbE OSFP Switch Module

Authorised Arista Partner

SKU:DCS-7368-4P

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Arista DCS-7368-4P is a 4-port 400GbE OSFP switch module (I/O line card) for the Arista 7368X4 Series modular chassis. It provides 4 x 400G OSFP ports, and each port can also run at 200G or 100G using existing 100G optics and cables. This makes it well suited to hyperscale cloud, AI and ML data centre environments that need high-density 100G, 200G and 400G connectivity.

The module is hot-swappable and installs in the DCS-7368-CH 4RU chassis, which has 8 line card slots. It supports up to 4 x 400GbE, 8 x 200GbE or 16 x 100GbE ports, with front to rear airflow and a minimum software requirement of EOS 4.24.1. The wider platform uses a single 12.8Tbps packet processor with port-to-port latency from 700ns, and the full EOS feature set including CloudVision, LANZ and Smart System Upgrade.

Features

- Hot-swappable interface module for the 7368X4 modular chassis
- 400G OSFP interfaces that can also use existing 100G optics and cables
- Supports 100G, 200G and 400G speeds for hyperscale cloud, AI and ML environments
- Part of a platform with a single 12.8Tbps packet processor and port-to-port latency from 700ns
- Field replaceable modules, power supplies and fans, with N+N power and N+1 cooling redundancy in the chassis
- Rich EOS feature set including CloudVision, LANZ and Smart System Upgrade support

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 4 x OSFP ports
- Max 400GbE ports: 4
- Max 200GbE ports: 8
- Max 100GbE ports: 16
- 25GbE and 10GbE ports: not supported
- Typical/Max power draw: 72 W / 140 W (max measured with 20W optics on all ports)
- Size (H x W x D): 6.7 x 1.7 x 9.5 in (17 x 4.4 x 24.2 cm)
- Weight: 2.7 lbs (1.23 kg)
- Compatible chassis: DCS-7368-CH (4RU, 8 line card slots)
- Airflow: front to rear only
- Minimum EOS: 4.24.1
- Platform throughput: 12.8 Tbps / 8 Bpps
- Platform latency: 700ns
- Platform packet buffer memory: 64MB
- Platform operating temperature: 0 to 40 C

FAQs

Q: Which chassis is the Arista DCS-7368-4P compatible with?
A: It is designed for the Arista DCS-7368-CH chassis, a 4RU chassis with 8 line card slots, as part of the 7368X4 Series.

Q: Can this module run at speeds below 400G?
A: Yes. Each OSFP port can run at 400G, or at 200G or 100G using existing 100G optics and cables. The module supports up to 4 x 400GbE, 8 x 200GbE or 16 x 100GbE ports.

Q: Does the DCS-7368-4P support 10G or 25G ports?
A: No. 10GbE and 25GbE port speeds are not supported on this module.

Q: What is the minimum EOS version required?
A: The module requires a minimum of EOS 4.24.1.

Q: What is the power draw of this module?
A: Typical power draw is 72 W and maximum is 140 W. The maximum figure is measured with 20W optics on all ports, while the typical figure excludes optics and cables.

Q: What airflow direction does the module support?
A: The DCS-7368-4P supports front to rear airflow only.
