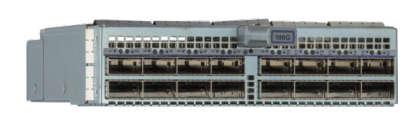

Arista DCS-7368-16C | 7368X4 16-Port 100GbE QSFP28 Line Card Module

Arista DCS-7368-16C | 7368X4 16-Port 100GbE QSFP28 Line Card Module

Authorised Arista Partner

SKU:DCS-7368-16C

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The DCS-7368-16C is a 16-port 100GbE QSFP28 line card module for the Arista 7368X4 Series modular data centre switch. It provides 16 x 100GbE QSFP28 ports, with support for 200GbE on alternate ports and breakout to 25GbE and 10GbE, giving architects flexible high-density 100G connectivity in a single hot-swappable module.

The module connects directly to the switch card with no oversubscription and supports 40GbE and 100GbE QSFP optics and cables. It installs in the DCS-7368-CH chassis, with front to rear or rear to front airflow options, and requires a minimum of Arista EOS 4.22.0. The 7368X4 platform delivers 12.8 Tbps of system capacity with 700 ns latency and a 64MB shared buffer.

Features

- Hot-swappable interface module for the 7368X4 chassis
- Connects directly to the switch card with no oversubscription
- Supports 100G on all ports and 200G on alternate ports
- Supports 40GbE and 100GbE QSFP optics and cables, including breakout to 25G and 10G
- Part of a 7368X4 platform with 12.8 Tbps system capacity, 700 ns latency and 64MB shared buffer
- Runs Arista EOS with CloudVision, ZTP, LANZ and sFlow support at the system level

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x QSFP28 ports
- Up to 16 x 100GbE ports
- Up to 8 x 200GbE ports
- Up to 16 x 25GbE / 10GbE ports via breakout
- Typical/Max power draw: 83 W / 140 W (max measured with 4.5W optics on all ports)
- Dimensions (HxWxD): 17 x 4.4 x 24.2 cm (6.7 x 1.7 x 9.5 in)
- Weight: 1.41 kg (3.1 lbs)
- Chassis support: DCS-7368-CH
- Airflow options: front to rear or rear to front
- Minimum EOS: 4.22.0
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-40 to 158 F)
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 3,000 m (10,000 ft)
- Certifications: BSMI, CE, KCC, NRTL, RCM, UKCA, VCCI

FAQs

Q: Which chassis does the DCS-7368-16C install in?
A: It is supported in the Arista DCS-7368-CH chassis from the 7368X4 Series.

Q: What speeds does each port support?
A: All 16 QSFP28 ports support 100GbE, and alternate ports support 200GbE. Breakout modes provide up to 16 x 25GbE or 10GbE.

Q: Is the module oversubscribed?
A: No. The module connects directly to the switch card with no oversubscription.

Q: What EOS version is required?
A: A minimum of Arista EOS 4.22.0 is required.

Q: Can it be replaced while the chassis is running?
A: Yes, it is a hot-swappable interface module designed for the 7368X4 chassis.

Q: What optics and cables are supported?
A: It supports 40GbE and 100GbE QSFP optics and cables, including breakout cabling to 25G and 10G.
