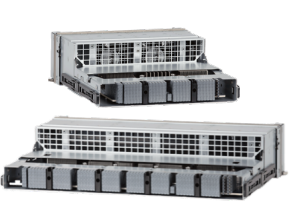

Arista DCS-7328X-FM-F | 7320X Fabric Module for 7328X Chassis, Front-to-Rear Airflow
Arista DCS-7328X-FM-F | 7320X Fabric Module for 7328X Chassis, Front-to-Rear Airflow
Authorised Arista Partner
SKU:DCS-7328X-FM-F
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The 7320X fabric module for the Arista 7328X modular chassis provides the data transport fabric between line cards and houses the integrated fan modules that circulate air through the switch. This forward (front-to-rear) airflow variant, for the DCS-7328X chassis, suits data centre racks where cool air is drawn in at the front and exhausted at the rear.
Every rear fabric slot in the chassis must be populated for proper operation. The module pairs with DCS-7320X-32C-LC line cards, the FAN-7002H-F fan spare and PWR-3KT-AC-BLUE power supplies, and draws 380 W typical and 578 W maximum.
Features
Features
- Provides the data transport fabric between line cards in the chassis
- Contains integrated fan modules that circulate air through the switch
- Forward (front-to-rear) airflow variant
- Requires every rear fabric slot to be populated for proper operation
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Module type: Fabric Module
- Compatible chassis: DCS-7328X (7320X Series)
- Airflow: Forward (front-to-rear)
- Power draw: 380 W typical / 578 W maximum
- Compatible line card: DCS-7320X-32C-LC
- Fan spare: FAN-7002H-F
- Compatible power supply: PWR-3KT-AC-BLUE
FAQs
Q: Which chassis is this fabric module compatible with?
A: It is designed for the Arista DCS-7328X chassis in the 7320X Series, in the forward (front-to-rear) airflow configuration.
Q: What does the fabric module do?
A: It provides the data transport fabric between the line cards in the chassis and contains the fan modules that circulate air through the switch.
Q: Which line cards does it pair with?
A: It pairs with DCS-7320X-32C-LC line cards.
Q: Do all fabric slots need to be populated?
A: Yes. Proper operation requires every rear fabric slot in the chassis to be populated.
Q: What is the power draw of this module?
A: It draws 380 W typical and 578 W maximum.
Q: Which power supply and fan spare are associated with this setup?
A: The PWR-3KT-AC-BLUE power supply and the FAN-7002H-F fan spare are listed as compatible with this module.
