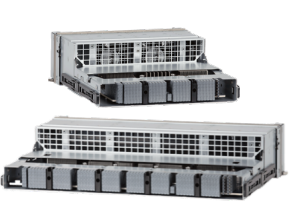

Arista DCS-7324X-FM-F | 7320X Fabric Module, Front-to-Rear Airflow, for 7324X
Arista DCS-7324X-FM-F | 7320X Fabric Module, Front-to-Rear Airflow, for 7324X
Authorised Arista Partner
SKU:DCS-7324X-FM-F
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The Arista DCS-7324X-FM-F is a 7320X Series fabric module for the DCS-7324X modular chassis, providing the switch fabric data path between line cards. This variant uses front-to-rear (forward) airflow, so it is the correct choice where the chassis is deployed with forward cooling, and it differs from sibling fabric modules built for reverse airflow.
The module installs in the rear fabric slots of the chassis and includes integrated fan modules that circulate air through the system. It pairs with DCS-7320X-32C-LC line cards, and the chassis requires all four rear fabric slots to be populated for proper operation.
Features
Features
- Provides the data transport fabric between line cards
- Contains integrated fan modules that circulate air through the switch
- Front-to-rear (forward) airflow for matching chassis cooling direction
- All four rear fabric slots must be populated for proper switch operation
- Requires special handling when removing or inserting
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: DCS-7324X-FM-F
- Series: 7320X
- Compatible chassis: DCS-7324X (Forward)
- Airflow: Front-to-rear (Forward)
- Power consumption: 192 W typical, 288 W maximum
- Compatible line card: DCS-7320X-32C-LC
- Compatible fan spare: FAN-7002H-F
- Compatible power supply: PWR-3KT-AC-BLUE
- Rear slots: 4 fabric module slots per chassis, all must be populated
- Integrated fan modules: Yes
FAQs
Q: Which chassis is the DCS-7324X-FM-F designed for?
A: It is a fabric module for the Arista DCS-7324X modular chassis in the 7320X Series, in the forward (front-to-rear) airflow configuration.
Q: Which airflow direction does this fabric module support?
A: It supports front-to-rear (forward) airflow. Match the airflow direction of the fabric modules to the chassis and fan modules in your deployment.
Q: Do I need to fill all the fabric module slots?
A: Yes. The chassis has four rear fabric module slots and every slot must be populated for proper switch operation.
Q: Which line cards does it work with?
A: It pairs with the DCS-7320X-32C-LC line card.
Q: What is the power draw of this module?
A: Power consumption is 192 W typical and 288 W maximum, which should be factored into the chassis power budget.
Q: Which fan spare and power supply are compatible?
A: The compatible fan spare is FAN-7002H-F and the compatible power supply is PWR-3KT-AC-BLUE.
