Arista

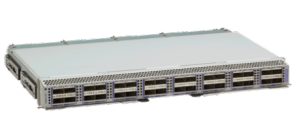

Arista DCS-7320X-32C-LC | 7320X 32-Port 100GbE QSFP100 Linecard, Spare

Arista DCS-7320X-32C-LC | 7320X 32-Port 100GbE QSFP100 Linecard, Spare

Authorised Arista Partner

SKU:DCS-7320X-32C-LC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The 7320X-32C is a spare 32-port 100GbE QSFP100 linecard for Arista 7320X Series modular data-centre switches, supporting both the 4-slot and 8-slot chassis. It delivers high-density 40/100G wirespeed L2/L3 connectivity and is ideal for expanding capacity or replacing an existing linecard in a spine or core deployment.

Each of the 32 QSFP100 ports supports 100GbE or 40GbE, and with breakout cables and suitable optics can be configured as up to 128 x 10GbE/25GbE or 64 x 50GbE interfaces. The linecard runs Arista EOS, includes a 32MB packet buffer and draws 219W nominal power.

Features

- Modular linecard for the 7320X Series 4-slot and 8-slot chassis
- Wirespeed L2/L3 forwarding at 40/100G density
- Supports breakout to 10G, 25G and 50G interfaces with suitable cables and optics
- Runs Arista EOS

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 32 x QSFP100 ports
- 32 x 100GbE (QSFP100) interfaces
- 32 x 40GbE (QSFP+) interfaces
- Up to 128 x 10GbE/25GbE or 64 x 50GbE with breakout cable and optics
- 32MB packet buffer
- 219W nominal power
- Maximum IPv4 host routes: 104K
- Maximum IPv6 host routes: 52K
- Maximum IPv4 unicast route prefixes: 128K
- Maximum IPv6 unicast route prefixes: 84K
- Maximum multicast groups: 136K with 8K unique groups
- Ingress / egress ACLs: 8K / 1K
- Maximum LAG members: up to 64 member ports
- Maximum LAG groups: up to 1024
- Maximum ECMP fanout: 128-way

FAQs

Q: Which chassis is the DCS-7320X-32C-LC compatible with?
A: It is a modular linecard for the Arista 7320X Series 4-slot and 8-slot chassis.

Q: What port speeds does this linecard support?
A: It provides 32 QSFP100 ports supporting 100GbE and 40GbE (QSFP+) interfaces.

Q: Can the ports be broken out to lower speeds?
A: Yes. With suitable breakout cables and optics, the linecard supports up to 128 x 10GbE/25GbE or 64 x 50GbE interfaces.

Q: How much power does the linecard draw?
A: Nominal power consumption is 219W.

Q: What software does it run?
A: The 7320X Series runs Arista EOS, providing wirespeed L2/L3 forwarding.

Q: What packet buffer does the linecard provide?
A: The linecard includes a 32MB packet buffer.
