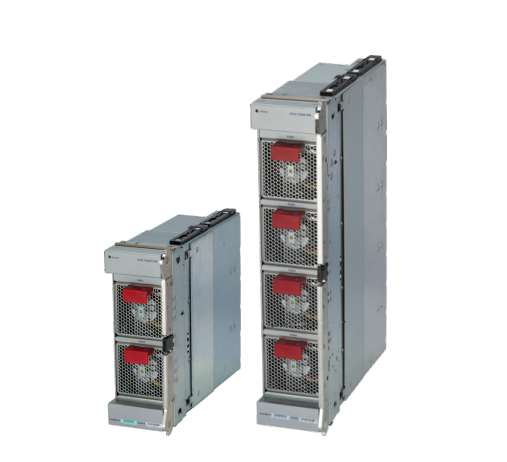

Arista DCS-7304X3-FM-F | 7300X3 Fabric Module, 7304 Chassis, Integrated Fans, F-R
Arista DCS-7304X3-FM-F | 7300X3 Fabric Module, 7304 Chassis, Integrated Fans, F-R
Authorised Arista Partner
SKU:DCS-7304X3-FM-F
Stock Status: Enquire
Couldn't load pickup availability
Description
Description
The Arista 7300X3 Series fabric module is built for the 7304 chassis and includes integrated fans with front-to-rear airflow for data-centre cooling. It is required in fabric slots 1-4 and forms the switching fabric of the 7300X3 Series spline switches, which deliver 25.6 Tbps of capacity in the 7304 chassis.
Fan modules are built into the fabric module, and redundant fabric modules provide graceful degradation if a module is lost. The 7300X3 Series offers wire-speed L2 and L3 forwarding with latency below 2.5 usec and runs Arista EOS.
Features
Features
- Over 50 Tbps fabric capacity across the 7300X3 Series (25.6 Tbps for the 7304 chassis)
- Redundant fabric modules with graceful degradation
- Front-to-rear airflow for data-centre optimised cooling
- Fan modules integrated into the fabric module
- Wire-speed L2 and L3 forwarding with latency below 2.5 usec (7300X3 Series)
- Runs Arista EOS (Extensible Operating System)
Warranty
Warranty
Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Fabric module for DCS-7304 / DCS-7304X3 chassis, required in fabric slots 1-4
- Integrated fans with front-to-rear (F-R) airflow
- Redundancy: Graceful Degradation
- Typical power (maximum): 191W (288W)
- Dimensions (HxWxD): 11.80" x 3.70" x 10.27" (30 x 9.4 x 26.1 cm)
- Weight: 10.3 lbs (4.7 kg)
- 7304 chassis: 4 fabric module slots, 25.6 Tbps / 16 Bpps maximum throughput
- Operating temperature: 0 to 40°C (32 to 104°F)
- Relative humidity: 5 to 95%
- Operating altitude: 0 to 10,000 ft (0-3,000 m)
FAQs
Q: Which chassis is this fabric module compatible with?
A: It is designed for the Arista 7304 chassis (DCS-7304 / DCS-7304X3) and is required in fabric slots 1-4.
Q: What airflow direction does this fabric module support?
A: This SKU has integrated fans with front-to-rear (F-R) airflow, suited to data-centre hot and cold aisle layouts.
Q: How many fabric modules does the 7304 chassis need?
A: The 7304 chassis has four fabric module slots, and this module is required in slots 1-4.
Q: What happens if a fabric module fails?
A: The fabric modules use graceful degradation, so the system continues to operate with reduced fabric capacity if a module is lost.
Q: How much power does the fabric module draw?
A: Typical power consumption is 191W, with a maximum of 288W.
Q: Does this module include its own fans?
A: Yes. The fan modules are integrated into the fabric module, so no separate fan module is needed for fabric cooling.
