Arista CCS-750XPM-48TXH-LC | 750X 48-Port 10G-T Multi-Gig PoE Linecard, 90W per Port

Arista CCS-750XPM-48TXH-LC | 750X 48-Port 10G-T Multi-Gig PoE Linecard, 90W per Port

Authorised Arista Partner

SKU:CCS-750XPM-48TXH-LC

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

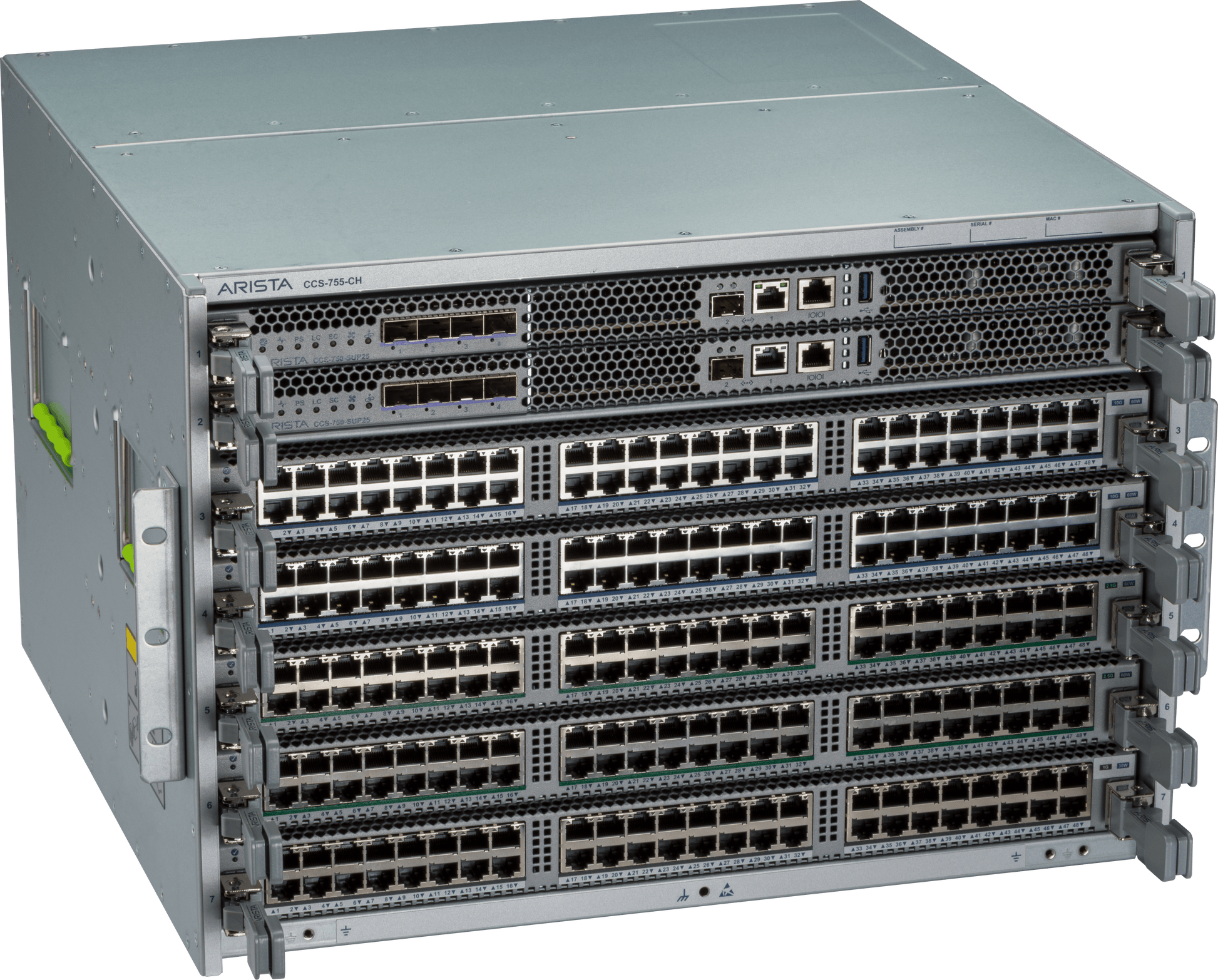

The Arista CCS-750XPM-48TXH-LC is a 48-port multi-gigabit PoE linecard for the Arista 750X 5-slot (755) and 8-slot (758) modular campus switch chassis. It provides 48x 10G-T RJ45 ports supporting 100Mb, 1G, 2.5G, 5G and 10G speeds, with up to 90W of PoE on every port for Wi-Fi access points, IoT devices and campus access deployments.

The linecard is hot-swappable and runs an independent control plane and data plane. Built-in 802.1AE MACsec on all ports, cognitive power management for PoE and CloudVision management with FlowTracker telemetry make it well suited to high-density, secure campus access layers.

Features

- Built-in 802.1AE MACsec on all ports
- Independent control plane and data plane
- Hot-swap and insert of all modules
- Cognitive power management for PoE
- CloudVision management with FlowTracker telemetry and analyzer
- Supports 10Mb to 10G speeds for a full range of IoT devices

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 48 x 10G-T RJ45 ports
- Port speeds: 100Mb/1G/2.5G/5G/10G
- Up to 90W PoE per port on all ports
- Maximum 48 ports at each of 1G, 2.5G, 5G and 10G
- Typical power consumption: 148W (maximum 160W excluding PoE)
- Weight: 3.4 kg (7.48 lbs)
- Hot-swappable linecard for 750X 5-slot and 8-slot chassis

FAQs

Q: Which chassis is the CCS-750XPM-48TXH-LC compatible with?
A: It is designed for the Arista 750X modular campus switch family, including the 5-slot (755) and 8-slot (758) chassis.

Q: How much PoE power does each port provide?
A: Every one of the 48 ports supports up to 90W of PoE, suitable for high-power devices such as Wi-Fi access points and IoT equipment.

Q: What port speeds does this linecard support?
A: The 10G-T RJ45 ports support 100Mb, 1G, 2.5G, 5G and 10G, so a mix of legacy and multi-gigabit devices can be connected.

Q: Can the linecard be installed while the chassis is running?
A: Yes, the linecard is hot-swappable, allowing it to be inserted or replaced without taking the chassis offline.

Q: Does this linecard support MACsec encryption?
A: Yes, built-in 802.1AE MACsec is available on all ports.

Q: How is the linecard managed?
A: It can be managed through Arista CloudVision, including FlowTracker telemetry and analyzer functions.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
