Arista CCS-750-SUP100 | 750 Series Supervisor Module, 2x 100G QSFP Uplinks

Arista CCS-750-SUP100 | 750 Series Supervisor Module, 2x 100G QSFP Uplinks

Authorised Arista Partner

SKU:CCS-750-SUP100

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

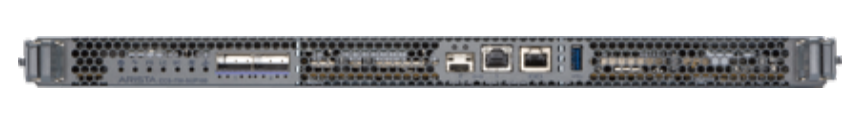

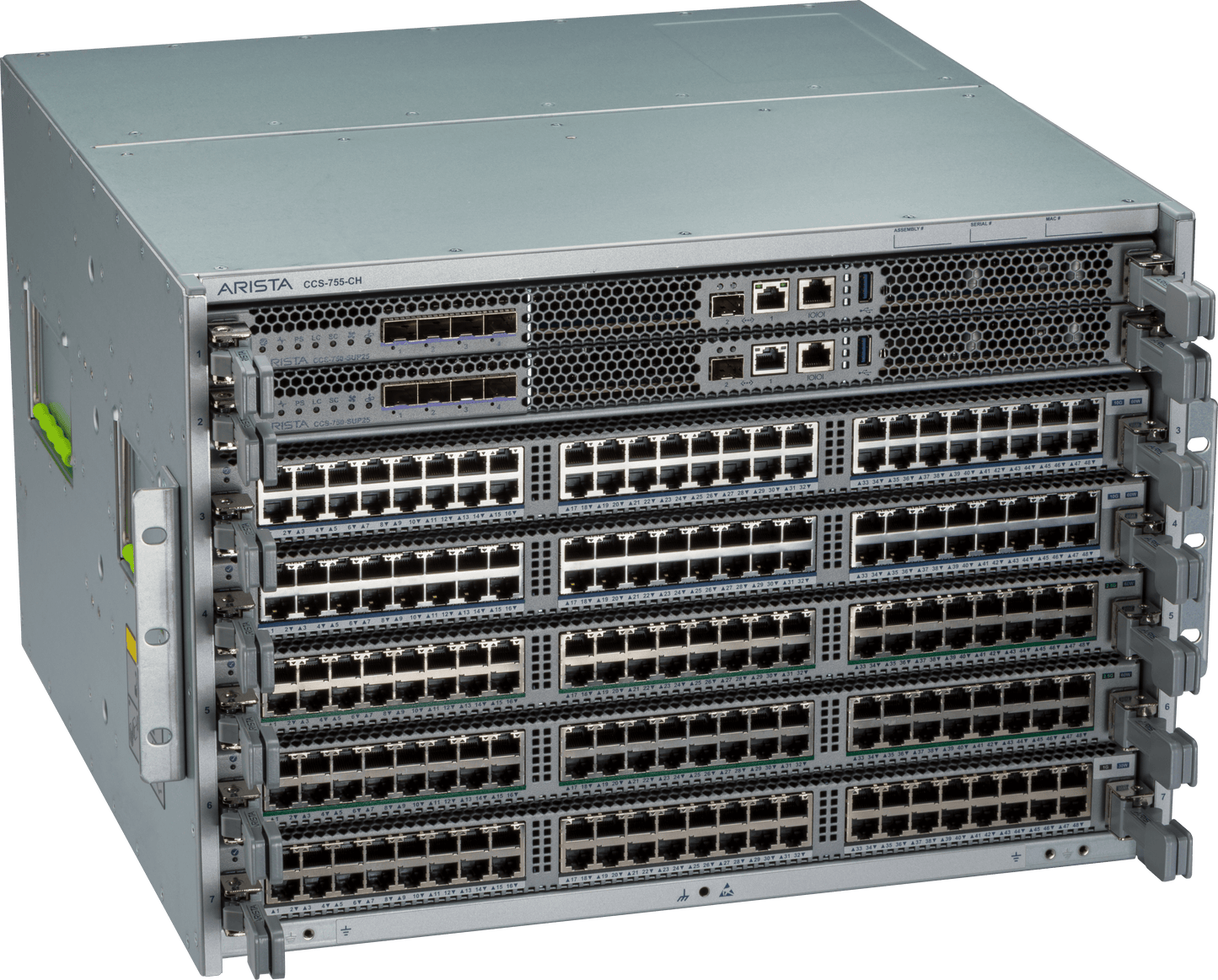

The Arista CCS-750-SUP100 is a supervisor module for the Arista 750 Series modular campus switches, providing the control plane and 2 x 100G QSFP uplinks for 200Gbps of uplink bandwidth. Supplied as a spare, it is common to both the 5-slot 755-CH and 8-slot 758-CH chassis and is deployed in a dual-supervisor configuration for high availability.

Built on a quad-core x86 processor with 16GB of system memory and 120GB of storage, the module supports uplink speeds from 1G through to 100G. It integrates with CloudVision, Secure Zero Touch Provisioning, sFlow and IPFIX, and supports VXLAN and EVPN for modern campus designs.

Features

- Dual supervisor operation with all ports active
- Independent control plane and data plane
- Hot-swap and insert of all modules
- Supports CloudVision, Secure Zero Touch Provisioning (ZTP), sFlow and IPFIX
- Supports VXLAN and EVPN
- Dedicated switch cards and supervisors

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 100G QSFP uplinks
- Uplink bandwidth: 200Gbps
- Supported speeds: 1G, 10G, 25G, 40G, 50G, 100G
- Processor: Quad-Core x86
- System memory: 16GB
- Storage: 120GB
- Power draw: 79W typical, 94W maximum
- Compatible with 758-CH (8-slot) and 755-CH (5-slot) chassis
- 2 supervisor slots per chassis

FAQs

Q: Which chassis is the CCS-750-SUP100 compatible with?
A: It is compatible with the Arista 758-CH 8-slot chassis and the 755-CH 5-slot chassis. The supervisor module is common to both.

Q: How many supervisor modules does a 750 Series chassis support?
A: Each chassis provides 2 supervisor slots, allowing a dual-supervisor configuration for high availability.

Q: What uplink ports does this supervisor provide?
A: It provides 2 x 100G QSFP uplinks, giving 200Gbps of uplink bandwidth, with support for 1G, 10G, 25G, 40G, 50G and 100G speeds.

Q: Can modules be replaced without powering down the chassis?
A: Yes. The 750 Series supports hot-swap and insertion of all modules, including supervisors.

Q: What is the power draw of this supervisor module?
A: It draws 79W typical and 94W maximum, which should be factored into chassis power supply planning.

Q: What management and automation tools does it support?
A: It supports CloudVision, Secure Zero Touch Provisioning (ZTP), sFlow and IPFIX, along with VXLAN and EVPN.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
