Description

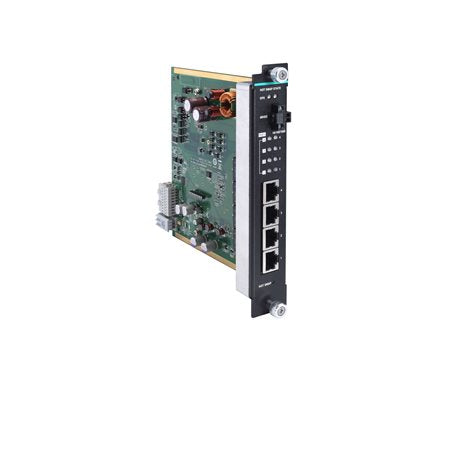

The Moxa IM-G7000A-4PoE is a 4-port Gigabit Ethernet PoE+ interface module for Moxa's modular managed Ethernet switches. Each of its four 10/100/1000BaseT(X) RJ45 ports complies with IEEE 802.3af/at and delivers up to 36 W of power per port, making it well suited to powering IP cameras, wireless access points and other PoE devices in industrial and infrastructure networks. It operates across a -10 to 60°C temperature range.

The hot-swappable module is compatible with the ICS-G7748A, ICS-G7750A, ICS-G7752A, ICS-G7848A, ICS-G7850A and ICS-G7852A modular managed switches, allowing PoE capacity to be added or changed without redesigning the switch platform. Auto negotiation, full/half duplex and auto MDI/MDI-X are supported, and front-panel LEDs show state, hot-swap, link speed, PoE and EPS status.

Features

- Full Gigabit Ethernet PoE+ ports
- IEEE 802.3af/at compliant, up to 36 W per port
- Hot-swappable interface module
- Centralised PoE power supply
- Compatible with ICS-G7748A, ICS-G7750A, ICS-G7752A, ICS-G7848A, ICS-G7850A and ICS-G7852A modular managed switches

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 10/100/1000BaseT(X) PoE ports (RJ45)
- IEEE 802.3af/at PoE+, high power mode up to 36 W per port
- Auto negotiation speed, full/half duplex, auto MDI/MDI-X
- LED indicators: State, Hot-swap, 10/100/1000 for TP port, PoE and EPS
- Power consumption: 5.14 W (max.)
- Dimensions: 28.8 x 174.7 x 166.8 mm
- Weight: 220 g
- Operating temperature: -10 to 60°C
- MTBF: 394,348 hrs (Telcordia (Bellcore), GB)
- Package contents: 1 x IM-G7000A Series module

FAQs

Q: Which Moxa switches is the IM-G7000A-4PoE compatible with?
A: It is compatible with the ICS-G7748A, ICS-G7750A, ICS-G7752A, ICS-G7848A, ICS-G7850A and ICS-G7852A modular managed Ethernet switches.

Q: How much PoE power does each port provide?
A: Each of the four ports complies with IEEE 802.3af/at in high power mode and supplies up to 36 W per port.

Q: Is the module hot-swappable?
A: Yes. The IM-G7000A-4PoE is a hot-swappable interface module and has a hot-swap LED indicator.

Q: What port types does this module provide?
A: It provides four 10/100/1000BaseT(X) RJ45 PoE ports. It has no non-PoE copper ports and no SFP ports.

Q: What operating temperature range is supported?
A: The module operates from -10 to 60°C.

Q: What is included in the package?
A: The package contains one IM-G7000A Series module.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
