Moxa

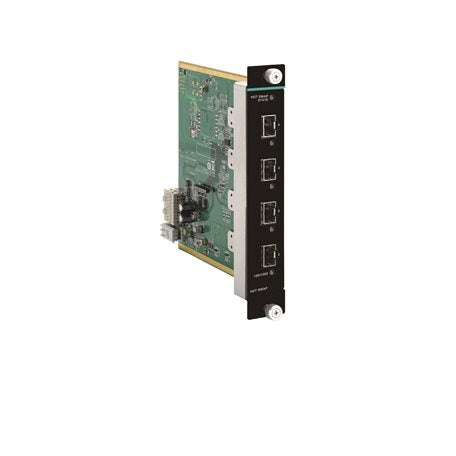

Moxa IM-G7000A-4GSFP | IM-G7000A 4-Port Gigabit SFP Interface Module, -10 to 60C

Moxa IM-G7000A-4GSFP | IM-G7000A 4-Port Gigabit SFP Interface Module, -10 to 60C

Authorised Moxa Partner

SKU:IM-G7000A-4GSFP

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa IM-G7000A-4GSFP is a Gigabit Ethernet interface module that adds four 100/1000BaseSFP fibre slots to Moxa modular industrial rackmount switches. Rated for an operating temperature of -10 to 60C, it suits industrial networks that need flexible fibre uplinks and a hot-swappable module design.

Part of the IM-G7000A module series, this module lets you tailor port configuration to the application and expand or service the switch without redesigning the network. Dedicated LED indicators cover module state, hot-swap status and 100/1000 fibre link status, and the module draws only 1.32 W at maximum.

Features

- Four 100/1000BaseSFP slots for flexible fibre connectivity
- Hot-swap capable module design
- 10 to 60C operating temperature
- Part of the IM-G7000A module series for Moxa modular rackmount switches
- Low power consumption of 1.32 W maximum

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x 100/1000BaseSFP ports
- LED indicators: State, Hot-swap, 10/100/1000 for TP port, 100/1000 for fibre port, PoE and EPS for PoE module
- Power consumption: 1.32 W (max.)
- Dimensions: 28.8 x 174.7 x 166.8 mm (1.13 x 6.88 x 6.57 in)
- Weight: 220 g (0.49 lb)
- MTBF: 1,544,084 hrs (Telcordia (Bellcore), GB)
- Operating temperature: -10 to 60C

FAQs

Q: How many SFP ports does the IM-G7000A-4GSFP provide?
A: It provides four 100/1000BaseSFP slots, supporting 100 Mbps and 1000 Mbps SFP transceivers for fibre connectivity.

Q: What is the operating temperature range?
A: The module operates from -10 to 60C.

Q: Which switches is this module designed for?
A: It belongs to the IM-G7000A module series for Moxa modular industrial rackmount switches, where it fits an interface module slot.

Q: Is this module hot-swappable?
A: Yes, the module features a hot-swap LED indicator and is designed to be hot-swappable.

Q: Are SFP transceivers included?
A: No, the module provides the SFP slots only. SFP transceivers are selected separately to suit the required fibre type and distance.

Q: What is the power consumption of the module?
A: The module consumes a maximum of 1.32 W.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
