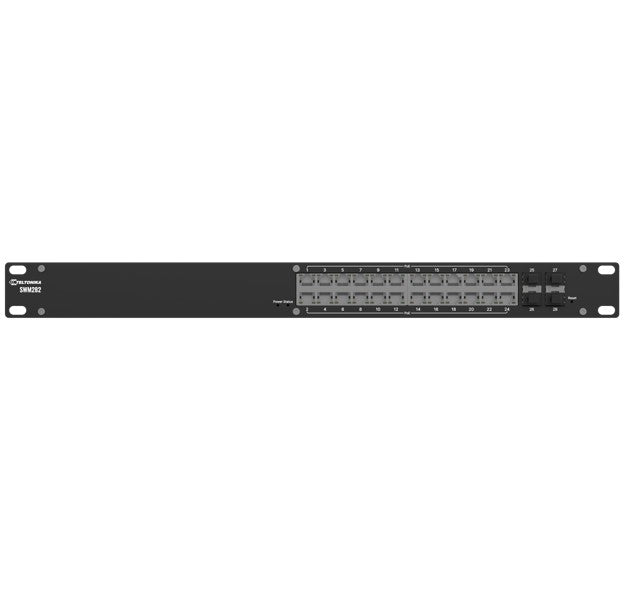

Teltonika SWM282 | SWM28 24-Port Gigabit PoE+ Managed Switch, 4x SFP, 300W

Teltonika SWM282 | SWM28 24-Port Gigabit PoE+ Managed Switch, 4x SFP, 300W

SWM282

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika SWM282 is a 24-port Gigabit PoE+ managed switch purpose-built for enterprise and industrial deployments requiring reliable power delivery and advanced network control. All 24 RJ45 ports support IEEE 802.3af/at PoE+ at up to 30W per port with a 300W total budget, while 4 SFP uplinks enable long-haul fibre connectivity and redundancy. With a 56 Gbps non-blocking switching capacity and full L2+/L3 feature set — including VLAN, LACP, RSTP, OSPF, BGP, and QoS — it delivers the performance and flexibility expected in modern campus and industrial networks.

Beyond standard managed switching, the SWM282 supports industrial protocols including PROFINET, EtherNet/IP, and MRP, making it equally suited to OT environments. Enterprise-grade security features such as 802.1X, RADIUS, TACACS+, and ACLs are complemented by TPM 2.0 hardware security. Every unit ships with 2 years of Teltonika RMS cloud management, enabling remote monitoring, configuration, alerts, and firmware updates from anywhere. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- All 24 ports deliver PoE+ power and data over a single cable — eliminates dedicated power supplies for connected devices
- 4 SFP uplink ports support long-haul fibre connections and network redundancy
- L2+ features: VLAN segmentation, LACP link aggregation, STP/RSTP, port mirroring, port isolation
- L3 routing: static IPv4/IPv6 routing, DHCPv6 client, and dynamic routing via BGP, OSPFv2, RIP, and EIGRP
- Industrial protocol support: PROFINET, EtherNet/IP, MRP (Media Redundancy Protocol) for OT/IT convergence
- QoS: 802.1p, DSCP, TOS priority queuing, bandwidth control and traffic shaping
- Security: 802.1X port authentication, MAC filtering, RADIUS, TACACS+, Access Control Lists (ACL)
- TPM 2.0 hardware security module for cryptographic integrity
- Management: Web UI, SNMP v2/v3, LLDP — plus Teltonika RMS cloud for remote access, alerts, configuration, and FOTA
- Internal power supply with active cooling for sustained operation under full PoE load
- Ships with integrated rack-mounting brackets — no additional hardware required
- Runs Teltonika TSW-OS (OpenWrt-based), enabling flexible and customisable configuration

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 10/100/1000 Mbps PoE+ Ethernet Ports (RJ45), IEEE 802.3af/at, up to 30W per port
- 4 x SFP Uplink Ports
- Total PoE Power Budget: 300W
- Switching Capacity (Non-blocking): 56 Gbps
- Forwarding Rate: 83.33 Mpps
- Packet Buffer: 512 KB
- MAC Address Table: 8,000 entries
- Jumbo Frame Support: 10,000 bytes
- IEEE Standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3z, 802.3af, 802.3at
- Power Input: 100–240 VAC (IEC C14 connector)
- Power Consumption: ~9W idle / up to 330W max (including PoE load)
- Operating Temperature: 0°C to 50°C
- Humidity: Up to 90% non-condensing
- IP Rating: IP30
- Form Factor: 1U 19-inch Rack Mount
- Dimensions: 483 x 44 x 234 mm
- Weight: 2,291 g
- Includes: 2 years Teltonika RMS cloud management subscription

FAQs

Q: Can all 24 ports deliver PoE+ simultaneously on the SWM282?
A: Yes — all 24 RJ45 ports are PoE+ capable (IEEE 802.3af/at, up to 30W per port). The total PoE budget is 300W, which supports simultaneous powering of multiple devices. For deployments drawing close to the full budget, Teltonika recommends planning port allocations to stay within the 300W limit.

Q: What industrial protocols does the SWM282 support?
A: The SWM282 supports PROFINET, EtherNet/IP, and MRP (Media Redundancy Protocol), making it suitable for OT and industrial automation environments where these protocols are standard. This allows the switch to integrate into existing industrial control systems alongside standard IT infrastructure.

Q: What L3 routing capabilities does the SWM282 offer?
A: The SWM282 supports static IPv4 and IPv6 routing, DHCPv6 client, and dynamic routing protocols including BGP, OSPFv2, RIP, and EIGRP. This goes well beyond typical L2+ switches and allows the SWM282 to handle inter-VLAN routing and participate in enterprise routing architectures without a dedicated router.

Q: What is Teltonika RMS and what does the included subscription cover?
A: Teltonika RMS (Remote Management System) is a cloud-based platform for managing Teltonika devices. The SWM282 ships with 2 years of RMS included, covering remote device monitoring, configuration management, real-time alerts, remote access, and firmware-over-the-air (FOTA) updates — all accessible from a web browser without on-site access.

Q: Is the SWM282 suitable for rack installation in a standard 19-inch cabinet?
A: Yes. The SWM282 is a 1U 19-inch rack-mount switch with integrated mounting brackets included in the box. No additional mounting hardware is required. Its dimensions are 483 x 44 x 234 mm with a weight of approximately 2.3 kg.
