Teltonika PR3PDNP0 | 12V 20W DIN Rail Power Supply, 1.67A, 85-264VAC Input
Teltonika PR3PDNP0 | 12V 20W DIN Rail Power Supply, 1.67A, 85-264VAC Input
Authorised Teltonika Partner
SKU:PR3PDNP0
In stock: 15
Couldn't load pickup availability
Description
Description

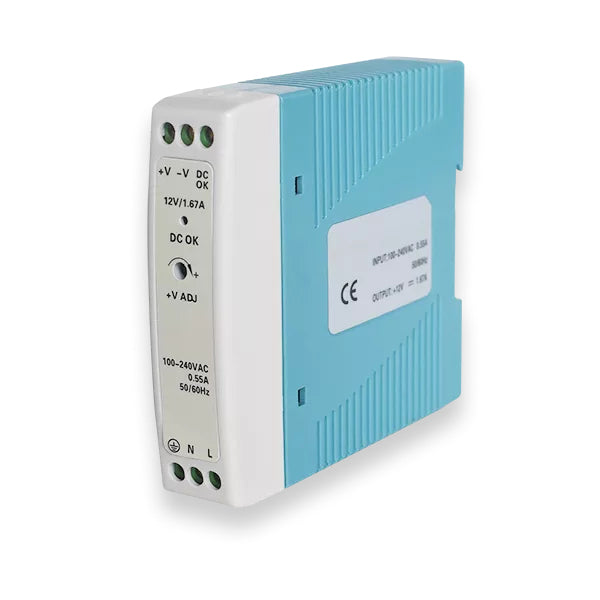

This Teltonika 12 V, 20 W DIN rail power supply is a 35 mm DIN-rail mounted AC/DC unit that delivers a stable 12 V DC output at up to 1.67 A. It is designed to power Teltonika routers, gateways and other IoT and industrial networking equipment inside control cabinets, and accepts a wide 85 - 264 VAC, 47 - 63 Hz input range.
Built-in overload protection cuts the output between 105 % and 160 % load and recovers automatically, while overvoltage protection shuts the output down until the supply is cycled off and on. Efficiency is rated at 80 %, with line and load regulation of ±1 %. It is intended to be used with the Teltonika 4-way open wire power cable (PR2PL15B).
Features
Features
- Stable 12 V DC output for IoT and industrial networking solutions
- Wide 85 - 264 VAC input range for use with global mains supplies
- Overload protection with automatic recovery
- Overvoltage protection for connected equipment
- Compact 35 mm DIN-rail form factor for control cabinets
- Designed to be paired with the Teltonika 4-way open wire power cable (PR2PL15B)
Warranty
Warranty
Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Order code: PR3PDNP0
- Output power: 20 W single output
- DC output voltage: 12 V
- DC output current: 0 - 1.67 A
- Input voltage range: 85 - 264 VAC, 47 - 63 Hz
- Efficiency: 80 %
- Output ripple and noise: 120 mVp-p
- Line regulation: ±1 %
- Load regulation: ±1 %
- DC voltage adjustment range: ±1 %
- Inrush current: 20 A at 115 VAC, 40 A at 230 VAC (cold start)
- Overload protection: 105 % - 160 % cuts off output, automatic recovery
- Overvoltage protection: 120 % - 140 % shuts down output, off/on cycle required
- Isolation resistance: 500 VDC / 1000 MΩ (I/P-O/P, I/P-FG, O/P-FG)
- Mounting: 35 mm DIN rail
- Dimensions: 23 x 90 x 100 mm
- Weight: 100 g
FAQs
Q: What output does the PR3PDNP0 provide?
A: It provides a 12 V DC output at 0 - 1.67 A, for a single output power of 20 W.
Q: How is the PR3PDNP0 mounted?
A: It mounts on a standard 35 mm DIN rail inside a control cabinet or enclosure.
Q: What mains input voltage does it accept?
A: It accepts 85 - 264 VAC at 47 - 63 Hz, so it can run from common mains supplies.
Q: Which cable should be used with this power supply?
A: It is intended to be used with the Teltonika 4-way open wire power cable (PR2PL15B).
Q: What protections are built in?
A: It has overload protection that cuts the output at 105 % - 160 % load and recovers automatically, plus overvoltage protection that shuts the output down until the supply is cycled off and on.
Q: What kind of equipment is it suited to powering?
A: It is suited to powering Teltonika routers, gateways and other 12 V IoT and industrial networking equipment, provided the total load stays within 20 W.
