Moxa SPL-24-T | SPL-24 PoE Splitter, 24VDC, 12.95W, -40 to 75C

Authorised Moxa Partner

SKU:SPL-24-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

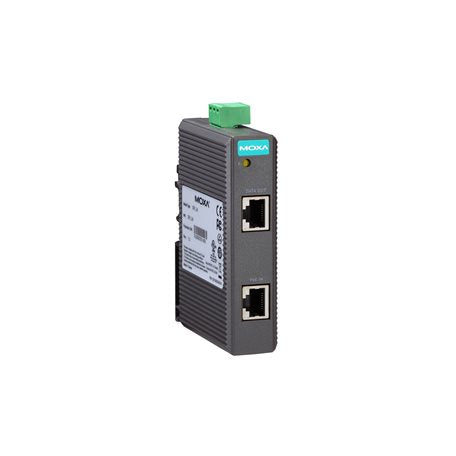

The Moxa SPL-24-T is an industrial IEEE 802.3af PoE splitter that separates power and data from a PoE connection, delivering up to 12.95 W at 24 VDC to non-PoE devices. This -T model is the -40 to 75°C wide temperature version, built for cabinets, outdoor enclosures and factory floors where standard splitters are not rated to operate.

The SPL-24-T has one 10/100BaseT(X) RJ45 PoE (PD) input port and one 10/100BaseT(X) RJ45 data port, with power delivered through a removable 3-contact terminal block. It mounts on a DIN rail in an IP30 housing and includes overload current protection, making it a practical way to power 24 VDC field devices over a single Ethernet cable run.

Features

- IEEE 802.3af compliant, splits power and data from PoE equipment
- Delivers up to 12.95 W at 24 VDC to non-PoE devices
- Short-circuit and overload protection on the power output
- Wide -40 to 75°C operating temperature range
- DIN-rail mounting for cabinet and enclosure installation
- Removable terminal block for simple power wiring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Type: PoE splitter (powered device)
- Data port: 1 x 10/100BaseT(X) RJ45
- PoE (PD) input port: 1 x 10/100BaseT(X) RJ45
- PoE standard: IEEE 802.3af
- PoE input voltage: 44 to 75 VDC
- Output: 24 VDC, 12.95 W maximum
- Ethernet features: full/half duplex, auto MDI/MDI-X, auto negotiation speed
- Overload current protection: supported
- Power connection: 1 removable 3-contact terminal block
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Mounting: DIN rail
- IP rating: IP30
- Dimensions: 24.9 x 100 x 86.2 mm
- Weight: 95 g
- Safety: UL 60950-1
- EMC: EN 55032/24, FCC Part 15B Class A, CISPR 32
- ESD immunity: IEC 61000-4-2, contact 6 kV, air 8 kV

FAQs

Q: What does the SPL-24-T do?
A: It receives power and data over a single PoE (IEEE 802.3af) Ethernet cable, then separates them so a non-PoE device can be powered at 24 VDC while data passes through a standard RJ45 port.

Q: How much power can the SPL-24-T supply?
A: It provides a 24 VDC output with a maximum output power of 12.95 W, so the connected device should draw no more than that.

Q: What is the difference between the SPL-24-T and the standard SPL-24?
A: The -T model is the wide-temperature version, rated for operation from -40 to 75°C, which suits harsh industrial and outdoor-enclosure environments.

Q: What PoE source does it need?
A: It needs an IEEE 802.3af compliant PoE source such as a PoE switch or injector, operating in the 44 to 75 VDC PoE input range.

Q: What network speeds does it support?
A: Both RJ45 ports are 10/100BaseT(X) with auto negotiation and auto MDI/MDI-X, so it is not a Gigabit data path.

Q: How is the SPL-24-T mounted?
A: It mounts on a standard DIN rail and has an IP30 rating, so it should be installed inside a cabinet or enclosure.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
