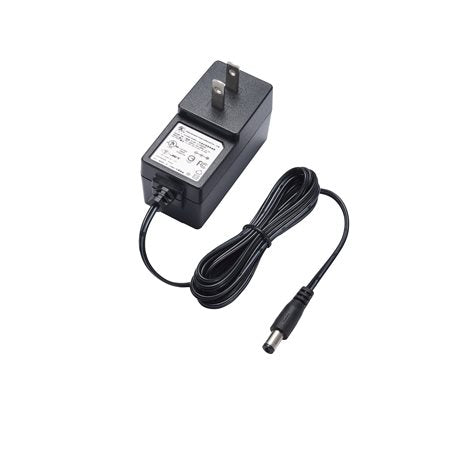

Moxa PWR-24250-DT-S1 | 24 VDC 2.5 A Desktop Power Supply, S-Type Plug

Authorised Moxa Partner

SKU:PWR-24250-DT-S1

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The PWR-24250-DT-S1 is a 24 VDC 2.5 A desktop power supply for powering Moxa industrial networking and computing equipment. It accepts a wide-range 100 to 240 VAC input and delivers 24 VDC at 2.5 A through an S-Type 5.5/2.1/9.5 output plug, suiting benchtop, cabinet and light industrial deployments within a 0 to 40°C operating range.

This desktop-style adapter uses a separate power cord, so the correct regional cord can be selected for the install site. It is the standard-temperature model, with wide-temperature -T versions available as separate SKUs, and carries CE, FCC, UL, RCM, PSE, CCC and GS safety certifications.

Features

- Wide-range 100 to 240 VAC power input for use in multiple regions
- Regulated 24 VDC output at 2.5 A
- Desktop form factor suited to benchtop and cabinet installations
- S-Type 5.5/2.1/9.5 output plug
- Standard 0 to 40°C operating temperature range
- Broad international safety certifications including CE, FCC, UL, RCM, PSE, CCC and GS

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Output: 2.5 A @ 24 VDC
- Input plug type: Desktop (requires power cord)
- Output plug: S-Type 5.5/2.1/9.5
- Output plug outer diameter: 5.5 ± 0.1 mm
- Output plug inner diameter: 2.1 ± 0.1 mm
- Output cord length: 1500 ± 100 mm
- Operating temperature: 0 to 40°C
- Storage temperature: -20 to 70°C
- Dimensions: 133 x 59.1 x 34.4 mm
- Weight: 330 g
- Safety certifications: CE, FCC, UL, RCM, PSE, CCC, GS

FAQs

Q: Does the PWR-24250-DT-S1 include a power cord?
A: No. It is a desktop-style adapter that requires a separate power cord, so you can choose the cord type suited to your region.

Q: What input voltage does this power supply accept?
A: It accepts 100 to 240 VAC at 50 to 60 Hz, making it suitable for use across different regions.

Q: What are the output specifications?
A: The output is 24 VDC at 2.5 A, delivered through an S-Type 5.5/2.1/9.5 plug with a 5.5 mm outer diameter and 2.1 mm inner diameter.

Q: What temperature range is this adapter rated for?
A: It operates from 0 to 40°C. It is the standard-temperature model, and wide-temperature -T versions are separate SKUs.

Q: Which Moxa products is it compatible with?
A: It is designed for Moxa devices that use a 24 VDC input with a matching 5.5/2.1 barrel connector, including the V481 and V462/464/466/468 series. Confirm your device's input voltage and plug type before ordering.

Q: What is the cable length on the DC output?
A: The DC output cord is approximately 1500 mm (about 1.5 m) long.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
