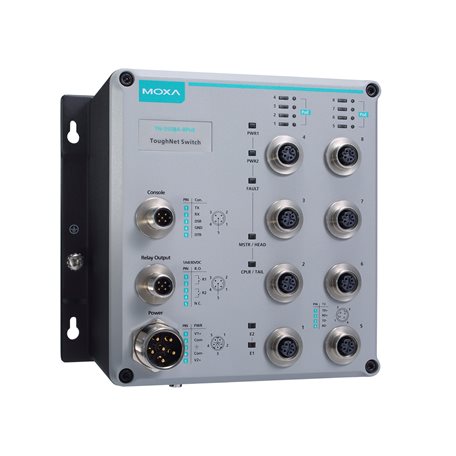

Moxa TN-5518A-8PoE-2GTXBP-WV-T/KC | 5518A EN 50155 PoE Switch, 8FE PoE+ M12, TN, 2GE M12 Bypass

Moxa TN-5518A-8PoE-2GTXBP-WV-T/KC | 5518A EN 50155 PoE Switch, 8FE PoE+ M12, TN, 2GE M12 Bypass

TN-5518A-8PoE-2GTXBP-WV-T/KC

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Rugged L2 managed switch designed for rail and heavy industrial networks, delivering 8 x 10/100 PoE+ M12 ports for powering IP cameras, intercoms, and sensors, plus 2 x 1GbE M12 ports with fail-safe bypass to maintain network connectivity during power or device faults.. With 24–110 VDC input, -40 to 75°C operation, EN 50155 suitability, and KC certification, it’s built for reliable service in vibration‑prone, harsh environments. Backed by Moxa’s industry-leading warranty and local support.. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- Rail-ready reliability with EN 50155 suitability and M12 connectors
- PoE+ on 8 ports powers edge devices without separate injectors
- Gigabit M12 ports with hardware bypass preserve network uptime
- Wide 24–110 VDC input and -40 to 75°C operation for harsh sites
- KC certification supports compliance in Korean markets
- L2 managed control for secure, deterministic industrial networks

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: L2 managed industrial Ethernet switch
- Ports: 8 x 10/100BaseT(X) PoE+ (IEEE 802.3at) over M12
- Uplink/Bypass: 2 x 10/100/1000BaseT(X) M12 with bypass function
- Input power: 24 to 110 VDC
- Operating temperature: -40 to 75°C
- Connectors: M12 Ethernet interfaces
- Compliance: EN 50155 (railway), KC certified
- PoE standard: IEEE 802.3at PoE+ on 8 ports

FAQs

Q: What applications is this switch designed for?
A: It targets rail and mission-critical industrial networks needing vibration-resistant M12 connections, PoE+ power for edge devices, wide voltage input, and wide-temperature operation.

Q: How does the bypass function work on the Gigabit ports?
A: The two GbE M12 ports include a hardware bypass that maintains link connectivity through the switch during power loss or device failure, helping preserve network uptime.

Q: What PoE standard is supported and on how many ports?
A: It supports IEEE 802.3at PoE+ on 8 Fast Ethernet M12 ports, suitable for powering cameras, access points, and VoIP endpoints.

Q: Is the unit suitable for harsh environments?
A: Yes. It operates from -40 to 75°C, uses vibration-resistant M12 connectors, supports 24–110 VDC power, and is suitable for EN 50155 railway environments.

Q: Does it require any special power supply?
A: No special model is required; it accepts a wide 24–110 VDC input range common in rolling stock and industrial control systems.

Q: Can I purchase this model in Australia from IP Trading?
A: Yes. IP Trading supplies genuine Moxa equipment with local support and fast delivery across Australia.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
