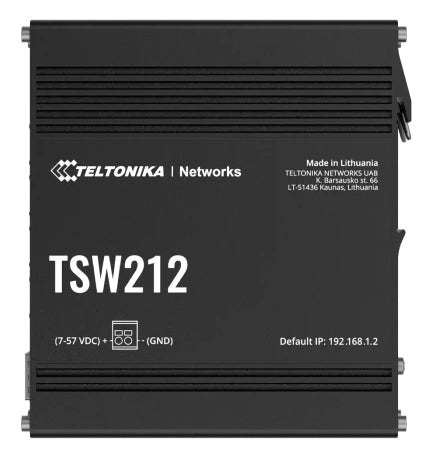

• Black Teltonika TSW212 managed L2 Gigabit Ethernet switch, matte finish, side vents
1 1

Teltonika

Teltonika TSW212 | 8-Port Gigabit L2 Managed Switch, 2x SFP, DIN Rail, No PoE

Teltonika TSW212 | 8-Port Gigabit L2 Managed Switch, 2x SFP, DIN Rail, No PoE

TSW212

In stock:5

$242.80 inc. GST
$220.73 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika TSW212 is an industrial-grade L2 managed Gigabit Ethernet switch built for demanding environments where reliability and protocol compatibility are critical. With 8 x RJ45 Gigabit Ethernet ports and 2 x SFP fibre ports, it delivers 20 Gbps non-blocking switching bandwidth and supports industrial protocols including EtherNet/IP, PROFINET (Class B), and MRP — making it ideal for industrial automation, warehousing, logistics, and telecommunications infrastructure. The integrated DIN rail bracket enables fast panel installation, while the rugged anodized aluminum housing withstands operating temperatures from -40°C to +75°C.

Running Teltonika's TSWOS (OpenWrt-based Linux OS), the TSW212 offers intuitive web-based configuration alongside advanced features including VLAN, QoS, RADIUS and TACACS+ authentication, LLDP, and SNMP V2/V3. Remote monitoring and management is available via the Teltonika RMS platform, and the switch also supports static IPv6 routing and DHCPv6 client for future-ready deployments. Regulatory approvals include CE, RCM, FCC, and RoHS. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- L2 Managed Switch with additional L3 features — DHCPv6 client and static IPv6 routing
- Supports industrial protocols: EtherNet/IP, PROFINET (Class B), and MRP
- TSWOS operating system (Teltonika OpenWrt-based Linux) for intuitive switch management
- Remote monitoring and management via Teltonika Remote Management System (RMS)
- VLAN support and Quality of Service (QoS) for traffic prioritisation
- RADIUS and TACACS+ authentication for centralised access security
- LLDP and SNMP V2/V3 for network discovery and monitoring
- Rugged anodized aluminum housing — vibration resistant, rated for extreme temperatures
- Integrated DIN rail bracket for fast panel installation in industrial enclosures
- Wall mount and flat surface mounting also supported
- Suitable for industrial automation, telecommunications, data centres, warehousing, and logistics

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x RJ45 Gigabit Ethernet Ports (10/100/1000 Mbps)
- 2 x SFP Ports (Fibre Optic)
- Switching Bandwidth: 20 Gbps (Non-Blocking)
- Forwarding Rate: 14.88 Mpps
- MAC Address Table: 8,000 entries
- Packet Buffer: 512 KB
- Jumbo Frame Support: Up to 10,000 bytes
- Input Voltage: 7–57 V DC (2-pin industrial DC connector)
- Power Consumption: Idle <2.5 W / Max 6 W
- Operating Temperature: -40°C to +75°C
- Operating Humidity: 10%–90% non-condensing
- Ingress Protection: IP30
- Casing: Anodized aluminum
- Mounting: Integrated DIN rail bracket; wall mount (kit required); flat surface
- Dimensions (W x H x D): 132 x 44.2 x 122.2 mm
- Weight: 615 g
- Status LEDs: 1 x Power, 1 x Aux, 16 x ETH, 2 x SFP
- Regulatory: CE, UKCA, RCM, FCC, IC, CB, RoHS, REACH

FAQs

Q: Can I buy the Teltonika TSW212 in Australia?
A: Yes. The TSW212 is available directly from iptrading.com.au, an Australian-owned and operated IT hardware reseller with over 20 years of experience. We supply and ship across Australia with local pre- and post-sales support.

Q: Does the TSW212 support PoE (Power over Ethernet)?
A: No. The TSW212 does not support PoE on any of its ports. It is a non-PoE switch. If you require PoE functionality, Teltonika's TSW200 series may be a better fit for your deployment.

Q: What industrial protocols does the TSW212 support?
A: The TSW212 supports EtherNet/IP, PROFINET Class B, and MRP (Media Redundancy Protocol), making it well-suited for industrial automation and control network environments.

Q: How is the TSW212 mounted?
A: The TSW212 includes an integrated DIN rail bracket for direct panel installation. It also supports wall mounting (additional kit required) and flat surface mounting, providing flexibility for various industrial enclosures and rack environments.

Q: Can the TSW212 be managed remotely?
A: Yes. The TSW212 is compatible with Teltonika's Remote Management System (RMS), which allows remote monitoring, configuration, and management. It also supports SNMP V2/V3, LLDP, and RADIUS/TACACS+ for enterprise-grade network management integration.

Q: What power supply does the TSW212 require?
A: The TSW212 accepts 7–57 V DC input via a 2-pin industrial DC power connector. It consumes less than 2.5 W at idle and a maximum of 6 W under full load, making it suitable for DIN rail-mounted industrial power supplies.
