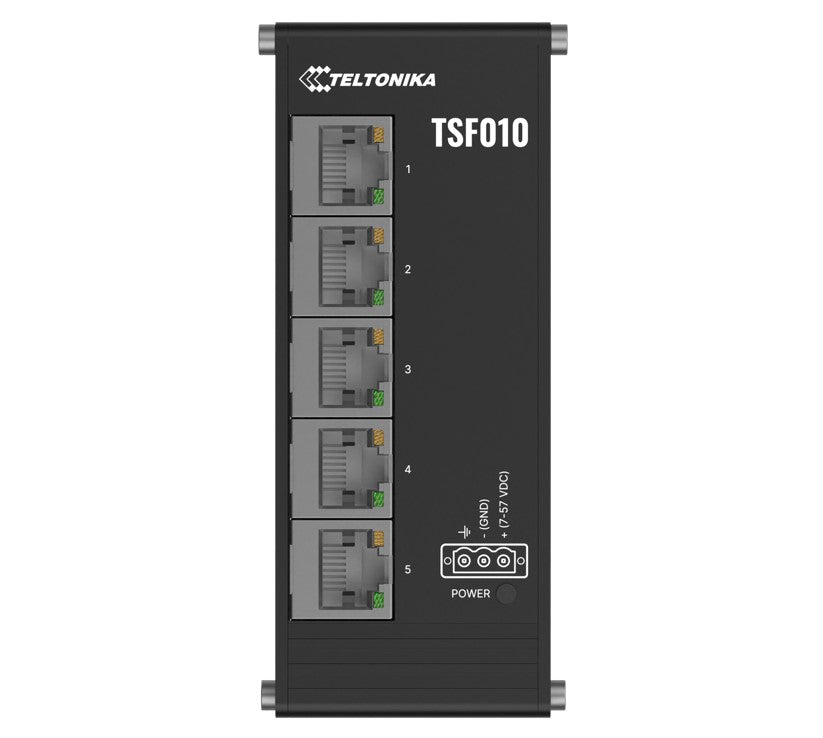

Teltonika TSF010010000 | TSF010 Flat Ethernet Switch, 5-Port, 3-Pin, 7-57 VDC, No PSU

Teltonika TSF010010000 | TSF010 Flat Ethernet Switch, 5-Port, 3-Pin, 7-57 VDC, No PSU

TSF010010000

In stock:10

$75.46 inc. GST
$68.60 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Teltonika TSF010010000 is an unmanaged 5-port Fast Ethernet flat switch built for plug-and-play deployment in space-limited industrial installations such as kiosks, terminals and control cabinets. This order code uses a 3-pin power input with a wide 7-57 VDC range and excludes the PSU, so it suits sites that already supply DC power.

The anodized aluminium IP30 housing is flat and compact, with integrated DIN rail mounting and fanless, maintenance-free operation across a -40 °C to 75 °C temperature range. Overvoltage and reverse polarity protection help safeguard the switch in demanding industrial power environments.

Shop iptrading.com.au, Australia's IT hardware specialists.

Features

- Flat, compact design for space-limited installations such as kiosks and terminals
- Plug-and-play deployment, no configuration needed
- Integrated DIN rail mounting for industrial cabinets
- Fanless, maintenance-free operation
- Profinet Class A compliance available with any order code
- Standard package: switch, 3-pin power connector, QSG, packaging box

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5 x 10/100 Mbps RJ45 Ethernet ports with auto MDI/MDIX
- IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
- 10 Gbps non-blocking bandwidth
- 128 KB packet buffer, 2K MAC address table, 9216 byte jumbo frame support
- 3-pin industrial power connector, 7-57 VDC input
- Overvoltage and reverse polarity protection
- IP30 rating, anodized aluminium housing
- Operating temperature -40 °C to 75 °C
- Dimensions 113 x 28 x 50 mm, weight 142 g
- Integrated DIN rail mounting
- Unmanaged (Layer 2)

FAQs

Q: Is the TSF010010000 a managed switch?
A: No. It is an unmanaged Layer 2 switch, so no configuration is needed and it works as soon as it is powered and connected.

Q: Does this order code include a power supply?
A: No. The PSU is excluded. The package includes the switch, a 3-pin power connector, a quick start guide and packaging box, and you supply a DC source within 7-57 VDC.

Q: How many ports and what speed does it offer?
A: It has five 10/100 Mbps RJ45 Ethernet ports with auto MDI/MDIX and 10 Gbps non-blocking bandwidth.

Q: How is the TSF010 mounted?
A: It has integrated DIN rail mounting, which makes it suitable for industrial cabinets and other space-limited installations.

Q: What temperature range can it operate in?
A: The operating temperature range is -40 °C to 75 °C, and the fanless anodized aluminium IP30 housing needs no active cooling.

Q: What power input does this variant use?
A: This variant uses a 3-pin industrial power connector with a wide 7-57 VDC input range, plus overvoltage and reverse polarity protection.
