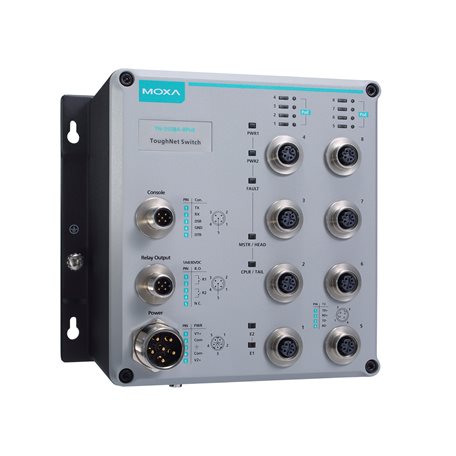

Moxa TN-5510A-8PoE-2GTXBP-WV-CT-T/KC | 8 x 10/100 PoE+ + 2 x GbE Bypass, 5510A EN 50155 M12 Switch, TN

Moxa TN-5510A-8PoE-2GTXBP-WV-CT-T/KC | 8 x 10/100 PoE+ + 2 x GbE Bypass, 5510A EN 50155 M12 Switch, TN

SKU:TN-5510A-8PoE-2GTXBP-WV-CT-T/KC

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Railway-grade Ethernet switch with 8 x 10/100BaseT(X) PoE+ ports and 2 x Gigabit M12 ports featuring hardware bypass for network availability during power loss.. Wide 24–110 VDC input, -40 to 75°C operation, conformal coating, and KC certification for harsh environments. Backed by Moxa’s 5-year manufacturer warranty and designed for rolling stock and trackside deployments requiring EN 50155 compliance and vibration-resistant M12 connectors.. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Railway-ready build: EN 50155 compliance and M12 connectors for shock and vibration resilience
- Always-on networking: hardware bypass keeps GbE traffic flowing during power loss
- Power devices directly: 8 x PoE+ ports reduce cabling and simplify deployments
- Deploy anywhere: -40 to 75°C operation and wide 24–110 VDC input
- Enhanced protection: conformal coating and KC certification for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 8 x 10/100BaseT(X) PoE+ (IEEE 802.3at PSE), M12 D‑coded
- Uplinks: 2 x 10/100/1000BaseT(X), M12 X‑coded with hardware bypass
- Bypass behavior: maintains link between the two GbE ports during power loss
- Input power: 24 to 110 VDC (wide voltage range)
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Conformal coating: Yes (CT)
- Certifications: EN 50155 (railway), KC
- Connector type: Rugged M12 for vibration/shock resistance
- PoE standard: IEEE 802.3at PoE+ PSE on 8 FE ports
- Enclosure: Industrial, railway-grade design

FAQs

Q: What is the port configuration on this switch?
A: It provides 8 x 10/100BaseT(X) PoE+ ports for powering devices and 2 x 10/100/1000BaseT(X) M12 uplinks with a hardware bypass function.

Q: Does it support PoE+ on all Fast Ethernet ports?
A: Yes. All 8 Fast Ethernet ports act as IEEE 802.3at PoE+ PSE to power compatible devices such as IP cameras and access points.

Q: What does the hardware bypass function do?
A: If the switch loses power, the two Gigabit M12 uplink ports are bridged so traffic continues to pass through, preserving network availability.

Q: Is this model suitable for railway and rolling stock applications?
A: Yes. It uses vibration-resistant M12 connectors, operates from -40 to 75°C, and complies with EN 50155 for railway environments.

Q: What power input range is supported?
A: It accepts a wide 24 to 110 VDC input range for flexible onboard and wayside power systems.

Q: Can I purchase this product in Australia from IP Trading?
A: Yes. IP Trading supplies this model in Australia with fast nationwide shipping and expert pre/post-sales support.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
