Moxa

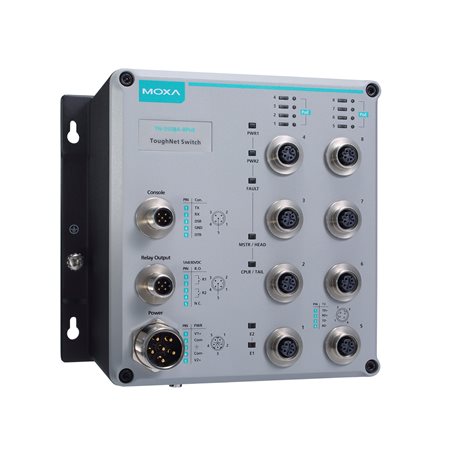

Moxa TN-5510A-8PoE-2GTX-WV-CT-T/KC | 5510A EN 50155 M12 Managed Switch, 8 x 10/100 PoE+ + 2 x 1GbE, Conformal Coat, 24–110 VDC, 40 to 75°C, TN, KC

Moxa TN-5510A-8PoE-2GTX-WV-CT-T/KC | 5510A EN 50155 M12 Managed Switch, 8 x 10/100 PoE+ + 2 x 1GbE, Conformal Coat, 24–110 VDC, 40 to 75°C, TN, KC

SKU:TN-5510A-8PoE-2GTX-WV-CT-T/KC

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Rail-ready TN-5510A switch with 8 Fast Ethernet PoE+ ports and 2 Gigabit ports on robust M12 connectors.. Wide 24–110 VDC input, -40 to 75°C operation, and conformal coating deliver dependable performance in vibration- and shock-prone environments. Backed by Moxa’s industry-leading 5-year warranty and compliant with EN 50155 and KC certifications, it’s ideal for onboard IP cameras, Wi‑Fi, and control systems.. Order direct from iptrading.com.au — Australian-owned and operated since 2001 Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- Railway-grade reliability with EN 50155 compliance
- Rugged M12 connectors resist shock and vibration
- PoE+ on 8 ports to power cameras, APs, and edge devices
- Wide 24–110 VDC input simplifies onboard power integration
- Extended -40 to 75°C operation for harsh environments
- Conformal coating protects against humidity and contaminants
- KC certification enables deployment in Korea

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) PoE+ ports (IEEE 802.3at, up to 30 W per port)
- 2 x 1GbE uplink ports
- M12 circular Ethernet connectors
- Wide-range power input: 24 to 110 VDC (WV)
- Operating temperature: -40 to 75°C (T)
- Conformal coating (CT) for enhanced environmental protection
- EN 50155 railway-compliant design
- KC certification for Korea
- Managed Layer 2 industrial Ethernet switch

FAQs

Q: Is this switch suitable for railway rolling stock applications?
A: Yes. The TN-5510A is an EN 50155 railway-compliant, M12‑connector managed switch designed for vibration- and shock-prone environments.

Q: How many PoE devices can it power and at what wattage?
A: It supports 8 PoE+ (IEEE 802.3at) Fast Ethernet ports, delivering up to 30 W per port, suitable for IP cameras, wireless APs, and sensors.

Q: What power input range does it support?
A: The WV model accepts a wide 24 to 110 VDC input range, ideal for rolling stock power systems.

Q: Does it operate in harsh temperatures?
A: Yes. The T variant operates from -40 to 75°C and includes conformal coating for added environmental resilience.

Q: What connectors are used for the Ethernet ports?
A: All Ethernet interfaces use rugged M12 circular connectors for secure, vibration-resistant cabling.

Q: Can I purchase this model in Australia from IP Trading?
A: Absolutely. IP Trading is an authorised Australian supplier—request a quote or order directly for local invoicing, compliance, and support.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
