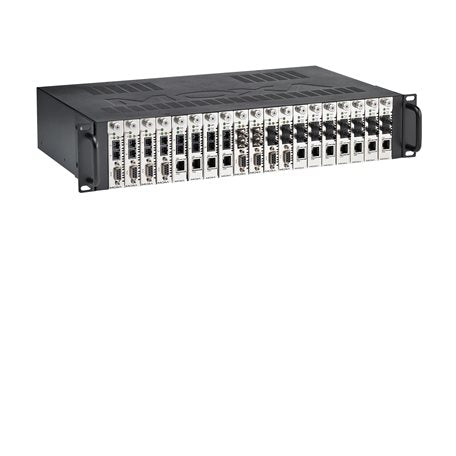

Moxa PWR-190-DC-48 | TRC-190 DC Power Supply Module, 36 to 53 VDC Input

Moxa PWR-190-DC-48 | TRC-190 DC Power Supply Module, 36 to 53 VDC Input

Authorised Moxa Partner

SKU:PWR-190-DC-48

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa PWR-190-DC-48 is a DC power supply module for the TRC-190 series 19-inch rackmount media converter chassis, accepting a 36 to 53 VDC input. It features two power inputs for redundant dual-feed operation and overload current protection, making it suited to telecom and industrial racks that run on a -48 VDC style supply.

The module converts the 36 to 53 VDC input to a steady 12 VDC output to power the slide-in modules. It can be fitted as the primary or redundant power module in the TRC-190 chassis and can be installed alongside the PWR-190-AC module to enhance reliability. It is rated IP30 and operates from 0 to 60 C.

Features

- Provides 36 to 53 VDC power for the TRC-190-DC-48 chassis
- Optional redundant power expansion module to enhance reliability
- Can be installed together with the PWR-190-AC module
- Converts 36 to 53 VDC input to a steady 12 VDC output to power slide-in modules
- Redundant dual power inputs
- Overload current protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Input voltage: 36 to 53 VDC
- Number of power inputs: 2
- Overload current protection: supported
- Installation: 19-inch rack mounting
- Dimensions: 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)
- Weight: 5200 g (11.4 lb)
- IP rating: IP30
- Operating temperature: 0 to 60 C (32 to 140 F)
- Storage temperature (package included): -20 to 75 C (-4 to 167 F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- MTBF: 1,055,112 hrs (Telcordia (Bellcore))

FAQs

Q: What input voltage does the PWR-190-DC-48 accept?
A: It accepts a 36 to 53 VDC input and provides two power inputs for redundant dual-feed operation.

Q: What is the PWR-190-DC-48 used with?
A: It is a power supply module for the Moxa TRC-190 19-inch rackmount media converter chassis, supplying power to the slide-in modules.

Q: Can I use it together with the PWR-190-AC module?
A: Yes. The PWR-190-DC-48 can be installed alongside the PWR-190-AC module, and either can serve as the primary or redundant power module.

Q: What output does the module provide?
A: It converts the 36 to 53 VDC input to a steady 12 VDC output to power the slide-in modules in the chassis.

Q: Does it include overload protection?
A: Yes. The module supports overload current protection.

Q: What operating temperature range does it support?
A: The module operates from 0 to 60 C (32 to 140 F) in 5 to 95% non-condensing humidity and carries an IP30 rating.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
