Moxa PWR-12500-DT-S1 | Desktop Power Adapter, 100-240 VAC, 12 VDC 5 A, S1 Plug

Moxa PWR-12500-DT-S1 | Desktop Power Adapter, 100-240 VAC, 12 VDC 5 A, S1 Plug

Authorised Moxa Partner

SKU:PWR-12500-DT-S1

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

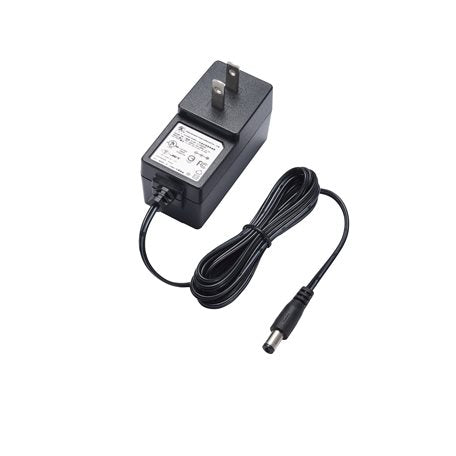

The Moxa PWR-12500-DT-S1 is a desktop AC/DC power adapter that accepts a 100 to 240 VAC input and delivers a regulated 12 VDC at 5 A. It is designed to power Moxa industrial networking and computing products, and this variant is fitted with the S1 locking barrel output plug for a secure connection.

The compact plastic desktop housing measures 110.8 x 51.8 x 32 mm and weighs 0.2 kg, making it easy to place near the equipment it supplies. The wide-range input suits deployments in multiple regions, and the adapter carries CE, FCC, UL, PSE, RCM and CCC approvals.

Features

- Wide-range 100 to 240 VAC input for worldwide use
- Regulated 12 VDC output at 5 A
- S1 locking barrel output plug for a secure connection
- Compact plastic desktop housing
- Multiple international safety certifications (CE, FCC, UL, PSE, RCM, CCC)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Input: 100 to 240 VAC (50/60 Hz)
- Output: 12 VDC, 5 A
- Output connector: S1 locking barrel plug
- Form factor: Desktop
- Housing material: Plastic
- Dimensions: 110.8 x 51.8 x 32 mm
- Net weight: 0.2 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 70 C
- Approvals: CCC, CE, FCC, PSE, RCM, UL
- Package contents: 1 x power adapter

FAQs

Q: What input voltage does the PWR-12500-DT-S1 accept?
A: It accepts a wide-range 100 to 240 VAC input at 50/60 Hz, so it can be used on mains supplies in most regions.

Q: What is the output rating of this power adapter?
A: The output is a regulated 12 VDC at 5 A.

Q: What does the S1 in the model number refer to?
A: S1 denotes the output plug type, a locking barrel connector that helps keep the power connection secure.

Q: Is this adapter suitable for DIN-rail or panel mounting?
A: No. It is a desktop-style adapter in a plastic housing, intended to sit on a bench or shelf rather than mount on a rail.

Q: What operating temperature range is supported?
A: The adapter is rated for operation from 0 to 40 C and storage from -20 to 70 C.

Q: What is included in the package?
A: The package contains one power adapter.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
