Moxa PWR-12300-WPKR-S2 | 12V 3A Power Adapter, Locking Barrel, KR Plug, 0-40°C

Moxa PWR-12300-WPKR-S2 | 12V 3A Power Adapter, Locking Barrel, KR Plug, 0-40°C

Authorised Moxa Partner

SKU:PWR-12300-WPKR-S2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

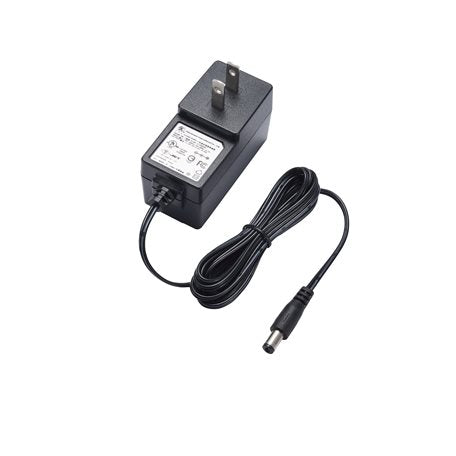

The Moxa PWR-12300-WPKR-S2 is a 12 VDC, 3 A AC power adapter with a locking barrel plug and a Korea (KR) input plug. It accepts a wide 100 to 240 VAC, 50 to 60 Hz input, making it suited to powering Moxa industrial networking equipment and other 12 VDC devices that use a 5.5/2.1 mm barrel connector. The locking S-Type 5.5/2.1/7.5 mm plug holds the connection securely in place, which helps prevent accidental disconnection in installations where cables may be bumped or vibrated.

The adapter includes a 1500 mm cord and operates across a standard 0 to 40°C temperature range, with storage supported from -20 to 70°C. It carries CE, FCC, UL, RCM, PSE, CCC and GS safety certifications as part of the PWR-12300 range. Confirm that the KR input plug matches your wall outlet or power distribution before ordering.

Features

- 100 to 240 VAC wide-range power input
- Locking barrel plug for a secure connection
- Standard operating temperature range of 0 to 40°C
- Powers many Moxa industrial products

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output: 3 A @ 12 VDC
- Input: 100 to 240 VAC (50 to 60 Hz)
- Input plug type: KR (Korea)
- Output plug type: Locking barrel, S-Type 5.5/2.1/7.5 mm
- Barrel plug outer diameter: 5.5 ± 0.1 mm
- Barrel plug inner diameter: 2.1 ± 0.1 mm
- Cord length: 1500±100 mm
- Operating temperature: 0 to 40°C (32 to 104°F)
- Storage temperature: -20 to 70°C (-4 to 158°F)
- Safety certifications: CE/FCC/UL/RCM/PSE/CCC/GS

FAQs

Q: What output does the Moxa PWR-12300-WPKR-S2 provide?
A: It delivers 12 VDC at up to 3 A through a locking S-Type 5.5/2.1/7.5 mm barrel plug.

Q: What input voltage does it accept?
A: It accepts 100 to 240 VAC at 50 to 60 Hz, so it can be used across a wide range of mains supplies.

Q: What does the KR in the part number mean?
A: KR refers to the Korea input plug type fitted to this adapter. Other PWR-12300 models use different regional input plugs.

Q: What is the operating temperature range?
A: This adapter is rated for operation from 0 to 40°C, with storage supported from -20 to 70°C.

Q: What barrel connector size does it use?
A: It uses a locking S-Type barrel plug with a 5.5 mm outer diameter and 2.1 mm inner diameter, designed to hold securely once connected.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
