Moxa

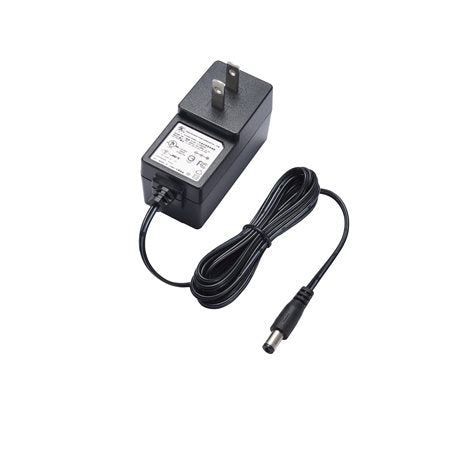

Moxa PWR-12150-WPIN-S4 | PWR Series 12V 1.5A Power Adapter, Locking Barrel, IN Plug

Moxa PWR-12150-WPIN-S4 | PWR Series 12V 1.5A Power Adapter, Locking Barrel, IN Plug

Authorised Moxa Partner

SKU:PWR-12150-WPIN-S4

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa PWR-12150-WPIN-S4 is a 12V 1.5A AC-to-DC power adapter for Moxa industrial networking products. It accepts 100 to 240 VAC at 50 to 60 Hz through an IN (India) type plug and delivers 12 VDC at 1.5 A through a locking barrel connector, helping prevent accidental disconnection.

The S-Type 5.5/2.1 mm barrel plug and 1500 mm cord make it a practical wall-plug power source for compatible Moxa switches, gateways and serial devices. It operates from 0 to 40 C, and its wide AC input range supports use worldwide.

Features

- Wide 100 to 240 VAC input range for use worldwide
- Locking barrel plug helps prevent accidental disconnection
- Reliable power source for many Moxa products
- Standard 0 to 40 C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Input: 100 to 240 VAC, 50 to 60 Hz
- Output: 12 VDC, 1.5 A
- Input plug type: IN (India)
- Output plug: S-Type locking barrel, 5.5/2.1 mm
- Outer diameter: 5.5 +/- 0.1 mm
- Inner diameter: 2.1 +/- 0.1 mm
- Cord length: 1500 +/- 100 mm
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -20 to 70 C (-4 to 158 F)

FAQs

Q: What output does the PWR-12150-WPIN-S4 provide?
A: It delivers 12 VDC at 1.5 A through a locking S-Type barrel plug with a 5.5 mm outer diameter and 2.1 mm inner diameter.

Q: What AC input does it accept?
A: It accepts 100 to 240 VAC at 50 to 60 Hz, so it works on mains supplies worldwide.

Q: What does the IN in the part number mean?
A: IN indicates the Indian-type input plug on the AC side of the adapter. Other regional plug variants are sold as separate SKUs.

Q: What is the operating temperature range?
A: The adapter operates from 0 to 40 C (32 to 104 F) and can be stored from -20 to 70 C (-4 to 158 F).

Q: Is the connector locking?
A: Yes. The S-Type barrel plug locks into the device to help prevent accidental disconnection.

Q: How long is the output cord?
A: The cord length is 1500 mm, with a tolerance of +/- 100 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
