Moxa

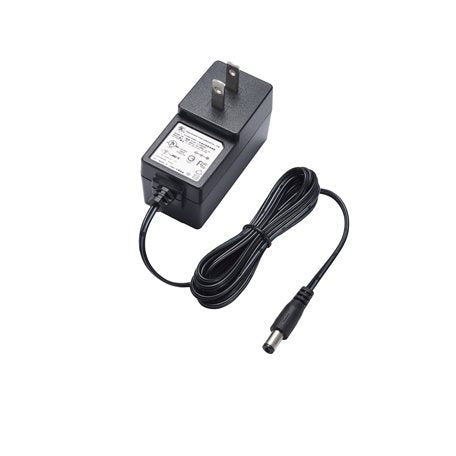

Moxa PWR-12150-WPIN-S2 | 12V 1.5A AC/DC Power Adapter, IN Plug, S-Type Barrel

Moxa PWR-12150-WPIN-S2 | 12V 1.5A AC/DC Power Adapter, IN Plug, S-Type Barrel

Authorised Moxa Partner

SKU:PWR-12150-WPIN-S2

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa PWR-12150-WPIN-S2 is a 12 VDC, 1.5 A AC/DC wall-plug power adapter with an IN (India) input plug, designed to power Moxa industrial networking products. It accepts a wide 100 to 240 VAC, 50 to 60 Hz input and delivers regulated output through an S-Type 5.5/2.1/9.5 mm barrel connector, with an operating temperature range of 0 to 40 C.

The compact wall-plug form factor measures 39.0 x 80.5 x 56.5 mm and includes a 1.5 m DC cord, making it a practical choice for powering industrial switches, media converters, serial device servers and similar Moxa devices that use a 5.5/2.1 mm barrel input. Select the IN plug version when the adapter will be used with Indian-style AC outlets.

Features

- Wide-range 100 to 240 VAC power input
- Regulated 12 VDC, 1.5 A output for Moxa industrial devices
- S-Type 5.5/2.1 mm barrel connector output
- Standard operating temperature range of 0 to 40 C
- Compact wall-plug form factor with a 1.5 m DC cord

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Input: 100 to 240 VAC, 50 to 60 Hz
- Output: 12 VDC, 1.5 A
- Input plug type: IN (India)
- Output connector: S-Type barrel 5.5/2.1/9.5 mm
- Output plug outer diameter: 5.5 mm, inner diameter: 2.1 mm
- Cord length: 1500 mm
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 70 C
- Dimensions: 39.0 x 80.5 x 56.5 mm

FAQs

Q: What output does the Moxa PWR-12150-WPIN-S2 provide?
A: It delivers 12 VDC at 1.5 A through an S-Type 5.5/2.1/9.5 mm barrel connector.

Q: What AC input range does this adapter support?
A: It accepts 100 to 240 VAC at 50 to 60 Hz, so it suits a wide range of mains supplies.

Q: What does the IN plug mean?
A: IN indicates the Indian-style AC input plug on the adapter. Other models in the PWR-12150 family use different regional plug types.

Q: What operating temperature does it support?
A: This standard model operates from 0 to 40 C. It is intended for controlled environments rather than extended-temperature installations.

Q: Which devices can this adapter power?
A: It is intended for Moxa industrial networking products that use a 12 VDC input with a 5.5/2.1 mm barrel connector. Check the power requirements of your device before ordering.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
