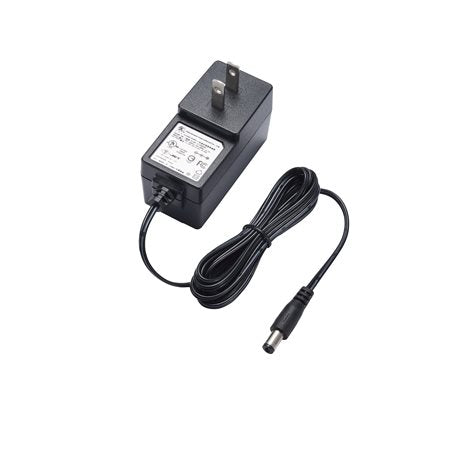

Moxa PWR-12150-AU-SA-T | 12V 1.5A Power Adapter, AU Plug, Locking Barrel, -40 to 75°C

Authorised Moxa Partner

SKU:PWR-12150-AU-SA-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The PWR-12150-AU-SA-T is a 12 VDC, 1.5 A AC-to-DC power adapter for industrial equipment. It accepts 100 to 240 VAC (50 to 60 Hz) through an Australian plug and delivers power through a locking L-Type 5.5/2.1/7.5 barrel plug, which keeps the connection secure. It is built for a -40 to 75°C operating range, so it suits harsh and temperature-extreme installations.

This adapter provides a reliable power source for many Moxa products that use a 12 VDC barrel input. It is RCM certified for use in Australia, and its 1.5 m cord gives flexibility when positioning it near a power outlet in a cabinet, rack or wall-mounted installation.

Features

- Wide 100 to 240 VAC power input
- 40 to 75°C operating temperature range for industrial environments
- Locking barrel plug for a secure connection
- Provides a reliable power source for many Moxa products
- AU input plug suited to Australian power outlets

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Input: 100 to 240 VAC (50 to 60 Hz)
- Output: 1.5 A @ 12 VDC
- Input plug type: AU (Australia)
- Output plug type: L-Type 5.5/2.1/7.5 locking barrel
- Barrel outer diameter: 5.5 ± 0.1 mm
- Barrel inner diameter: 2.1 ± 0.1 mm
- Cord length: 1500 ± 100 mm
- Dimensions: 41 x 73.9 x 89.5 mm
- Weight: 200 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 75°C
- Certification: RCM

FAQs

Q: What output does the PWR-12150-AU-SA-T provide?
A: It delivers 12 VDC at up to 1.5 A through a locking L-Type 5.5/2.1/7.5 barrel plug.

Q: What input voltage does it accept?
A: It accepts 100 to 240 VAC at 50 to 60 Hz, using an Australian (AU) input plug.

Q: Can it operate in extreme temperatures?
A: Yes. It is rated for operation and storage from -40 to 75°C, making it suitable for industrial installations.

Q: What size is the barrel connector?
A: The locking barrel plug has a 5.5 mm outer diameter and a 2.1 mm inner diameter (L-Type 5.5/2.1/7.5).

Q: Is this adapter certified for use in Australia?
A: Yes. It carries RCM certification and uses an Australian plug type.

Q: How long is the output cord?
A: The cord length is approximately 1.5 m (1500 ± 100 mm).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
