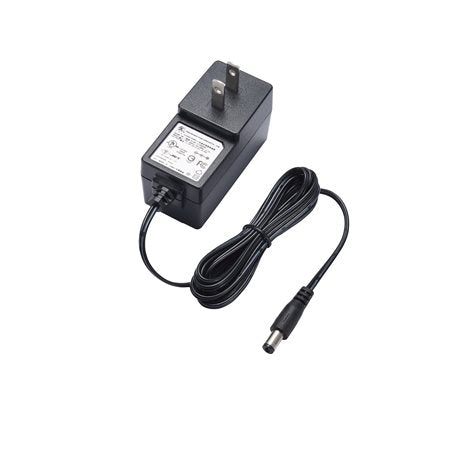

• Moxa PWR-12050-AU-S1 black plastic 12V DC adapter with coiled cord and locking barrel plug
1 1

Moxa

Moxa PWR-12050-AU-S1 | 12V 0.5A Power Adapter, Locking Barrel Plug, AU Plug

Moxa PWR-12050-AU-S1 | 12V 0.5A Power Adapter, Locking Barrel Plug, AU Plug

Authorised Moxa Partner

PWR-12050-AU-S1

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

This 12V 0.5A power adapter converts 100 to 240 VAC mains input to a regulated 12 VDC output for industrial networking equipment. It uses a locking barrel plug (S-Type 5.5/2.1/7.5) for a secure DC connection and an Australian (AU) input plug for direct use with local mains outlets, with an operating temperature range of 0 to 40°C.

The adapter has a 1.5 m output cord and a compact body measuring 67.9 x 33.5 x 39.4 mm, weighing 75 g. It carries RCM safety certification, making it suitable for compliant installations in Australian industrial and commercial environments.

Features

- Locking barrel plug for a secure DC connection
- Wide-range 100 to 240 VAC input
- AU plug for Australian mains outlets
- RCM safety certification
- 1.5 m output cord

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output: 12 VDC, 0.5 A
- Input voltage range: 100 to 240 VAC (50 to 60 Hz)
- Input plug type: AU
- Output plug type: Locking barrel plug (S-Type 5.5/2.1/7.5)
- Cord length: 1500±100 mm
- Dimensions: 67.9 x 33.5 x 39.4 mm
- Weight: 75 g
- Operating temperature: 0 to 40°C
- Storage temperature: -20 to 70°C
- Safety certification: RCM

FAQs

Q: What output does this power adapter provide?
A: It delivers 12 VDC at 0.5 A from a 100 to 240 VAC, 50 to 60 Hz input.

Q: What type of mains plug does it have?
A: It has an Australian (AU) input plug, suitable for standard Australian mains outlets.

Q: What DC connector does it use?
A: It uses a locking barrel plug, S-Type 5.5/2.1/7.5, which locks in place to help prevent accidental disconnection.

Q: What is the operating temperature range?
A: The adapter operates from 0 to 40°C and can be stored from -20 to 70°C.

Q: Is it certified for use in Australia?
A: Yes, it carries RCM safety certification.

Q: How long is the output cord?
A: The output cord is approximately 1.5 m (1500±100 mm).
