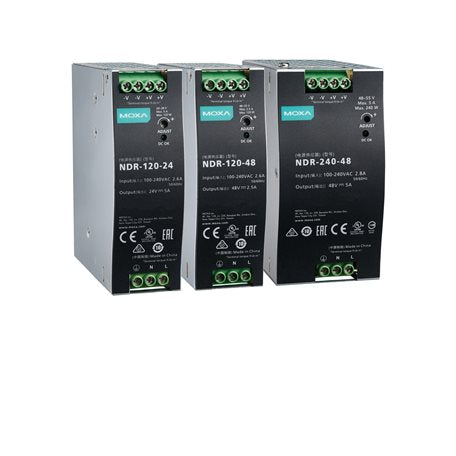

Moxa NDR-240-48 | NDR DIN-Rail Power Supply, 240W, 48VDC, 5.0A

Moxa NDR-240-48 | NDR DIN-Rail Power Supply, 240W, 48VDC, 5.0A

Authorised Moxa Partner

SKU:NDR-240-48

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa NDR-240-48 is a 240W, 48VDC, 5.0A DIN-rail power supply built for industrial control cabinets and networking deployments. It accepts a universal 90 to 264 VAC or 127 to 370 VDC input, operates from -20 to 70°C, and delivers typical efficiency of 90% in a rugged metal housing.

The output voltage is adjustable from 48 to 55 VDC, and the unit includes constant current overload protection with automatic recovery plus overvoltage protection. It is rated to UL 508 and IEC 62368-1 safety standards and carries comprehensive EMC and EMS compliance for demanding industrial environments.

Features

- Universal AC input (90 to 264 VAC) and DC input (127 to 370 VDC)
- Wide -20 to 70°C operating temperature range
- Constant current overload protection with automatic recovery
- Overvoltage protection
- Metal housing designed for DIN-rail mounting
- Adjustable output voltage from 48 to 55 VDC
- Typical efficiency of 90% for reduced heat and energy loss

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output power: 240 W
- Output voltage: 48 VDC, adjustable 48 to 55 VDC
- Output current: 0 to 5 A
- Input voltage: 90 to 264 VAC (47 to 63 Hz) or 127 to 370 VDC
- Typical efficiency: 90%
- Ripple and noise: 150 mVp-p
- Typical input current: 1.3 A @ 230 VAC, 2.5 A @ 115 VAC
- Inrush current (cold start): 35 A @ 230 VAC, 20 A @ 115 VAC
- Overload protection: 105 to 160% of rated output, constant current limiting
- Overvoltage range: 56 to 65 V
- Typical hold up time at full load: 22 ms at 115 VAC, 28 ms at 230 VAC
- Operating temperature: -20 to 70°C (max 50°C at full load)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 20 to 95% (non-condensing)
- Housing: metal
- Dimensions: 127.81 x 123.75 x 63 mm
- Weight: 900 g
- Safety: UL 508, EN 62368-1, IEC 62368-1
- MTBF: 230,206 hrs (MIL-HDBK-217F)

FAQs

Q: What output does the Moxa NDR-240-48 provide?
A: It delivers 240 W at 48 VDC with an output current of 0 to 5 A. The output voltage can be adjusted from 48 to 55 VDC.

Q: What input voltage range does it accept?
A: It accepts 90 to 264 VAC (47 to 63 Hz) or 127 to 370 VDC, so it can be used on a wide range of AC mains and DC supplies.

Q: What temperature range can it operate in?
A: The operating range is -20 to 70°C. At full load, the maximum operating temperature is 50°C, so derating applies above that.

Q: What protection features are built in?
A: It includes overload protection (105 to 160% of rated output) using constant current limiting that recovers automatically once the fault is removed. Overvoltage protection shuts the unit down, and it recovers when repowered.

Q: How is it mounted?
A: It has a metal housing designed for DIN-rail mounting and measures 127.81 x 123.75 x 63 mm.

Q: How does it differ from other NDR series models?
A: The NDR-240-48 is the 240 W, 48 VDC, 5.0 A variant of the NDR series. Other models in the range differ in wattage and output voltage.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
