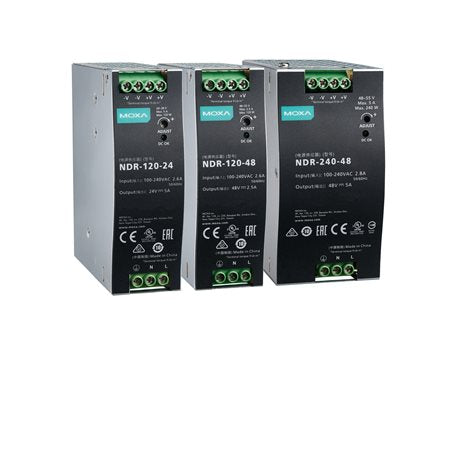

Moxa NDR-120-48 | NDR Series DIN-Rail Power Supply, 120W, 48VDC, 2.5A

Moxa NDR-120-48 | NDR Series DIN-Rail Power Supply, 120W, 48VDC, 2.5A

Authorised Moxa Partner

SKU:NDR-120-48

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa NDR-120-48 is a DIN-rail power supply delivering 120 W at 48 VDC, 2.5 A. It is built for industrial control cabinets, with a slim metal housing, universal AC input (90 to 264 VAC) or DC input (127 to 370 VDC), and operation from -20 to 70°C.

With typical efficiency of 89%, a voltage adjustment range of 48 to 55 VDC, and overvoltage protection, it suits automation, networking and field equipment that needs a stable 48 VDC rail. The NDR series slim form factor saves valuable DIN-rail space, and constant current mode protects the supply and load during overload conditions.

Features

- DIN-rail mounting for cabinet installation
- Slim form factor saves rail space
- Universal AC input with wide DC input option
- High power conversion efficiency of 89%
- Constant current mode for overload protection
- Overvoltage protection with shutdown and power-cycle recovery
- Metal housing suited to industrial environments
- Wide -20 to 70°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output power: 120 W
- Output voltage: 48 VDC, adjustable 48 to 55 VDC
- Output current: 0 to 2.5 A
- Input voltage: 90 to 264 VAC (47 to 63 Hz) or 127 to 370 VDC
- Typical efficiency: 89%
- Ripple and noise: 150 mVp-p
- Typical input current: 1.3 A at 230 VAC, 2.25 A at 115 VAC
- Inrush current (cold start): 35 A at 230 VAC, 20 A at 115 VAC
- Hold-up time at full load: 10 ms at 115 VAC, 16 ms at 230 VAC
- Overvoltage range: 56 to 65 V, shutdown protection
- Operating temperature: -20 to 70°C (derating applies; 45°C maximum at full load)
- Storage temperature: -40 to 85°C
- Humidity: 20 to 95% non-condensing
- Housing: metal, 123.75 x 125.20 x 40 mm
- Weight: 500 g
- Safety: UL 508, EN 62368-1, IEC 62368-1

FAQs

Q: What output does the NDR-120-48 provide?
A: It provides 48 VDC at up to 2.5 A, for a total of 120 W, with the voltage adjustable from 48 to 55 VDC.

Q: What input voltage does it accept?
A: It accepts 90 to 264 VAC (47 to 63 Hz) or 127 to 370 VDC, so it can be used across global AC mains and DC supply systems.

Q: How is it mounted?
A: It is a DIN-rail mounted unit with a slim 40 mm wide metal housing, designed for industrial control cabinets.

Q: What is the operating temperature range?
A: It operates from -20 to 70°C. The maximum ambient temperature at full load is 45°C, so derating applies above that.

Q: What protection does it include?
A: It has overvoltage protection that shuts down the output (56 to 65 V range) and recovers when power is cycled, plus constant current mode for overload protection.

Q: What safety and EMC standards does it meet?
A: It is rated to UL 508, EN 62368-1 and IEC 62368-1 for safety, and meets EN 55032/35 and EN 61000-3-2 Class A for EMC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
