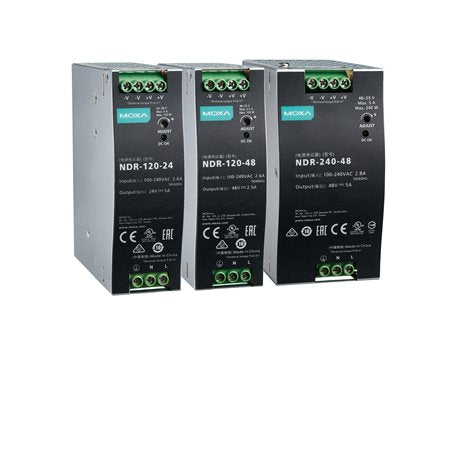

Moxa NDR-120-24 | NDR Series DIN-Rail Power Supply, 120W, 24VDC, 5.0A

Moxa NDR-120-24 | NDR Series DIN-Rail Power Supply, 120W, 24VDC, 5.0A

Authorised Moxa Partner

SKU:NDR-120-24

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The NDR-120-24 is a 120W DIN-rail power supply from the Moxa NDR Series, delivering 24VDC output at up to 5.0A. It accepts a universal 90 to 264 VAC (47 to 63 Hz) or 127 to 370 VDC input, making it suitable for industrial cabinets and control panels across a wide range of installations. The metal housing is only 40 mm wide and operates across a -20 to 70°C temperature range.

The output voltage can be adjusted from 24 to 28 VDC to compensate for voltage drop on longer cable runs, and built-in overvoltage protection shuts the supply down if the output rises above its limit. With a typical efficiency of 88% and safety approvals including UL 508 and IEC 62368-1, it is a dependable power source for industrial networking equipment, controllers and field devices.

Features

- Universal AC and DC input range
- Adjustable output voltage from 24 to 28 VDC
- Overvoltage protection with shutdown and re-power recovery
- Metal housing designed for industrial DIN-rail mounting
- Wide operating temperature range of -20 to 70°C
- Compact 40 mm wide form factor for space-limited cabinets

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output power: 120 W
- Output voltage: 24 VDC, 0 to 5 A
- Voltage adjustment range: 24 to 28 VDC
- Input voltage: 90 to 264 VAC (47 to 63 Hz) or 127 to 370 VDC
- Typical efficiency: 88%
- Ripple and noise: 120 mVp-p
- Typical input current: 1.3 A @ 230 VAC, 2.25 A @ 115 VAC
- Inrush current (cold start): 35 A @ 230 VAC, 20 A @ 115 VAC
- Overvoltage protection range: 29 to 33 V
- Housing: Metal
- Dimensions: 123.75 x 125.20 x 40 mm
- Weight: 500 g
- Operating temperature: -20 to 70°C
- Safety: UL 508, EN 62368-1, IEC 62368-1
- MTBF: 453,334 hrs (MIL-HDBK-217F)

FAQs

Q: What output does the Moxa NDR-120-24 provide?
A: It provides 24 VDC at 0 to 5 A, for a total output of 120 W. The output voltage can be adjusted from 24 to 28 VDC.

Q: Can the NDR-120-24 run from both AC and DC supplies?
A: Yes. The input range is 90 to 264 VAC (47 to 63 Hz) or 127 to 370 VDC, so it suits a wide range of installations.

Q: What happens if the output voltage goes too high?
A: Overvoltage protection triggers between 29 and 33 V. The supply shuts down its output and recovers once power is cycled off and back on.

Q: What temperature range does it support?
A: It operates from -20 to 70°C, making it suitable for industrial control cabinets and harsh environments.

Q: How is the NDR-120-24 mounted and how much space does it need?
A: It mounts on a standard DIN rail. The metal housing measures 123.75 x 125.20 x 40 mm, so it takes up only 40 mm of rail width.

Q: What safety and EMC standards does it meet?
A: Safety approvals include UL 508, EN 62368-1 and IEC 62368-1. EMC compliance covers EN 55032/35 and EN 61000-3-2 Class A, along with ESD, surge and EFT immunity tests.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
